CS-V628 drvn speakers

JVC

Discontinued

Your price:
€ 27,90
Price per pair (VAT included)
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
45 - 25.000 Hertz
MAX Power
250 Watt
RMS Power
40 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Carbon Mica
Tweeter Material
PEI

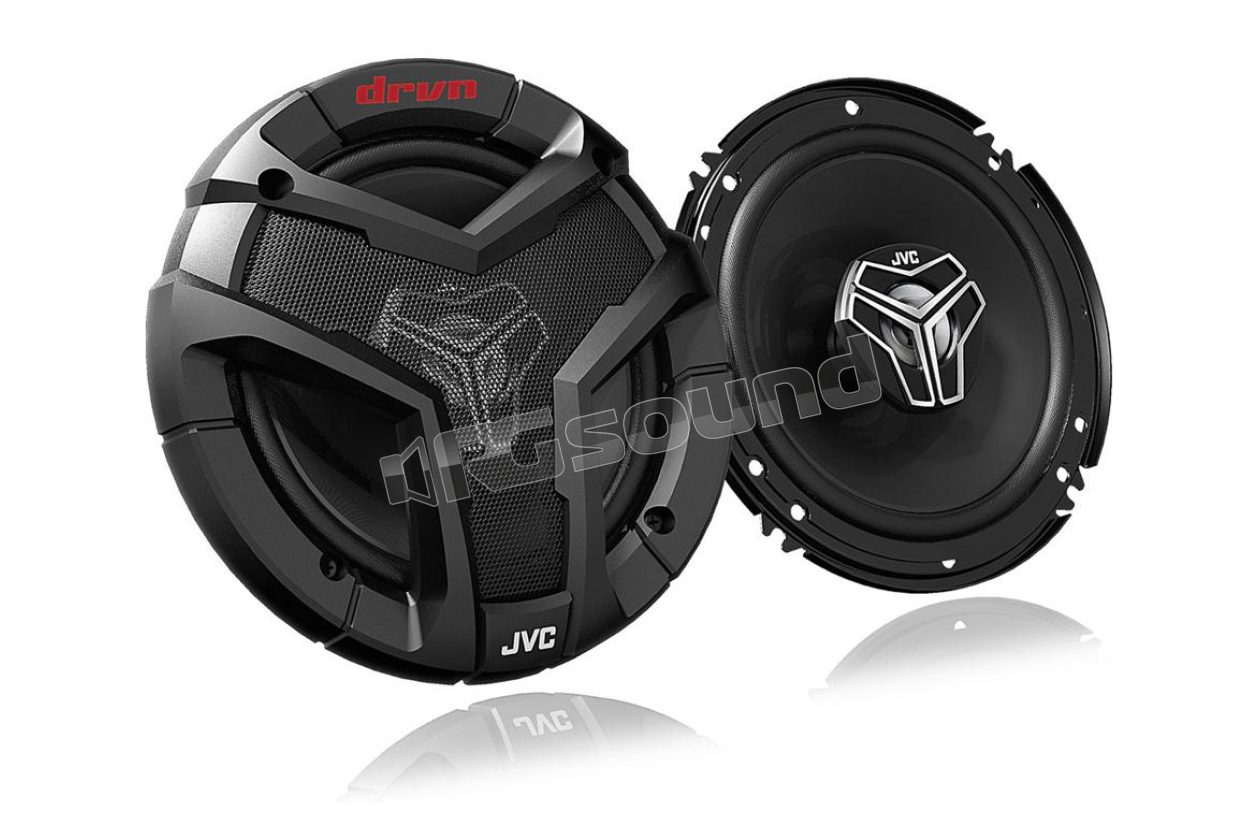

JVC CS-V628 2-way coaxial speakers 16 cm - drvn Series

The JVC drvn speakers deliver a response with precise performance.
The optimized carbon/mica ratio of the cone and the tweeter made of PEI (Poly-Ether Imide) with neodymium magnet, improve the reproduction of the midrange-bass frequencies for more powerful and extended voices and bass.

CS-V628 Features

  • Standard woofer diameter 16.5 cm - 165 mm (6.5" inches)

  • 2-way system: 1 woofer with superstructure composed of 1 tweeter.

  • Crossovers integrated in the system, just connect the speakers to the sound source.

  • The crossover frequency is fixed at 5 Khz (5000 Hz).

  • MAXIMUM power 500 W (2 x 250 W).

  • RMS power 80 W (2 x 40 W).

  • Frequency response 45 Hz / 25000 Hz.

  • Efficiency (1W/1m) 89 dB.

  • Rigid and resistant cones, made of aramid and carbon compound with mica.

  • These woofers offer durability over time, low distortion and excellent acoustic performance.

  • Hybrid rubber and fabric suspensions, for a fast and accurate "response".

  • Sturdy baskets, in stamped steel.

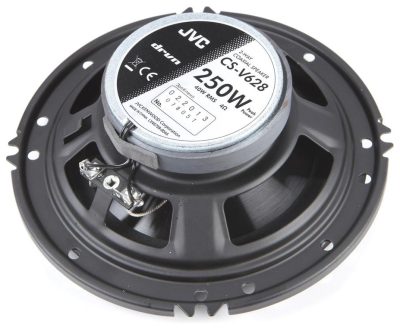

  • Ferrite magnets 182 g.

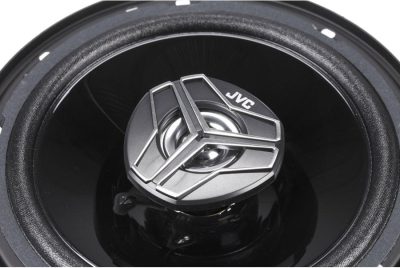

  • Tweeter with PEI (Poly-Ether Imide) domes and neodymium magnets.

  • Including protective grilles with aggressive design for "visible" installations.

  • The grilles are designed to improve the frequency response of the speakers.

  • Nominal impedance 4 ohm.

  • Installation depth 43.5 mm.

Discontinued
