CS-V528 Speakers drvn

JVC

Discontinued

Your price:
€ 25,20
Price per pair (VAT included)
Type
Coaxial
Speaker Size
130 mm
Coaxial Type
2-way
Frequency Response
50 - 25.000 Hertz
MAX Power
220 Watt
RMS Power
27 Watt
Sensitivity
87 dB
Impedance
4 Ohm
Woofer Material
Carbon Mica
Tweeter Material
PEI

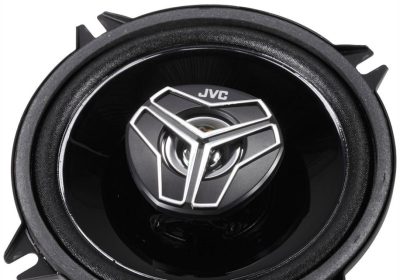

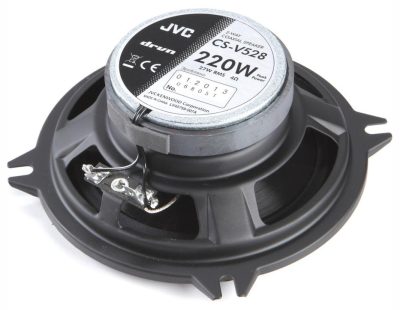

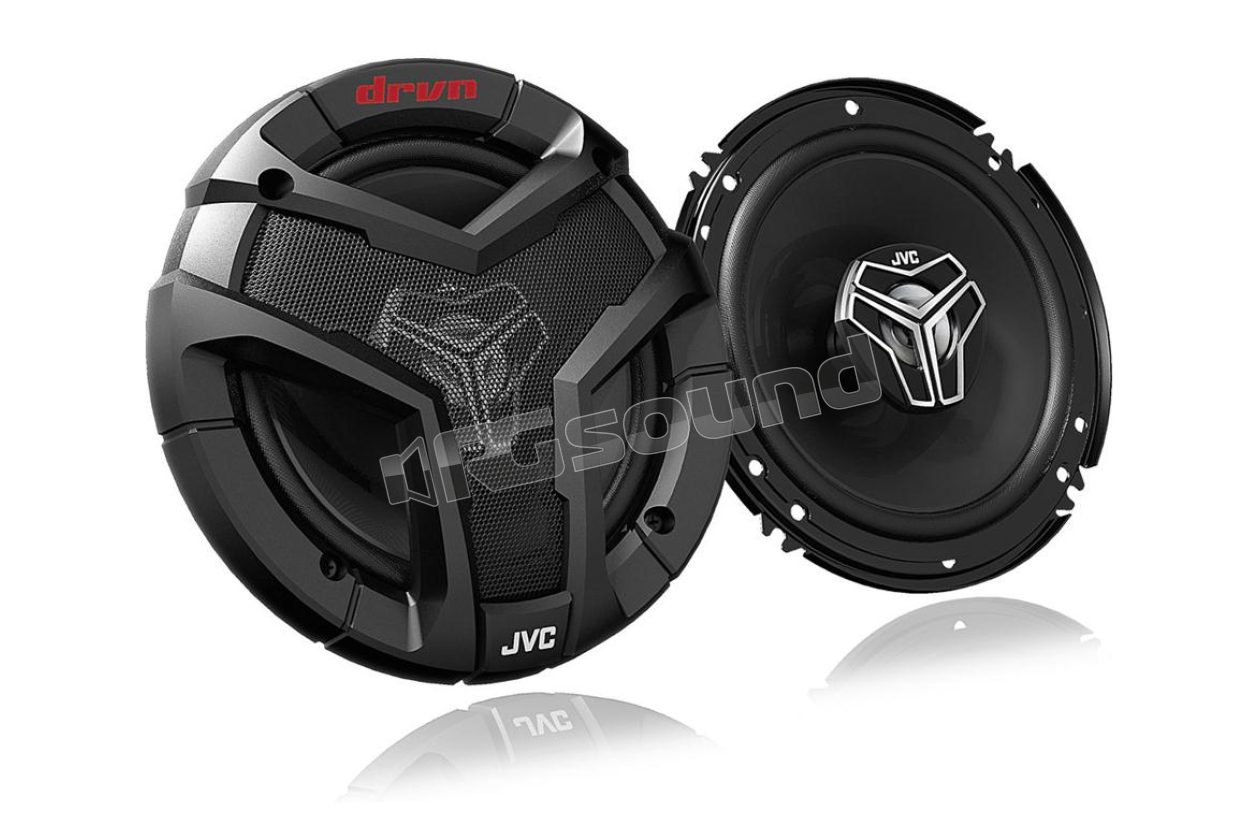

JVC CS-V528 2-way coaxial speakers 13 cm - drvn Series

The JVC drvn speakers deliver extreme response with precise performance.
The optimized carbon/mica cone ratio, along with the hybrid surround edge and PEI tweeter shape, improve mid-bass reproduction for more powerful and extended voice and bass.

CS-V528 Features:

  • Standard woofer diameter 5.25" (inches) - 13 cm - 130 mm.

  • 2-way system: 1 woofer with superstructure made up of 1 tweeter.

  • Crossovers integrated into the system, just connect the speakers to the sound source.

  • The crossover frequency is set at 5 kHz (5000 Hz).

  • MAXIMUM power 440 W (2 x 220 W).

  • RMS power 54 W (2 x 27 W).

  • Frequency response 50 Hz / 25000 Hz.

  • Efficiency (1W/1m) 87 dB.

  • Rigid and resistant cones, made of aramid and carbon compound with mica.

  • These woofers offer durability over time, low distortion and excellent acoustic performance.

  • Hybrid rubber and fabric suspensions, for quick and accurate "response".

  • Resistant baskets, in stamped steel.

  • 153 g ferrite magnets.

  • Tweeter with PEI (Poly-Ether Imide) domes and neodymium magnets.

  • Protective grilles with aggressive design included for "flush" installations.

  • The grilles are designed to improve the frequency response of the speakers.

  • Nominal impedance 4 ohm.

  • Mounting depth 44 mm.

Discontinued
