CS-69

JBL

Discontinued

Your price:
€ 45,50
Price per pair (VAT included)
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
3-way
Frequency Response
40 - 20.000 Hertz
MAX Power
420 Watt
RMS Power
140 Watt
Sensitivity
94 dB
Impedance
4 Ohm
Woofer Material
Plus One cono
Tweeter Material
Titanio laminato

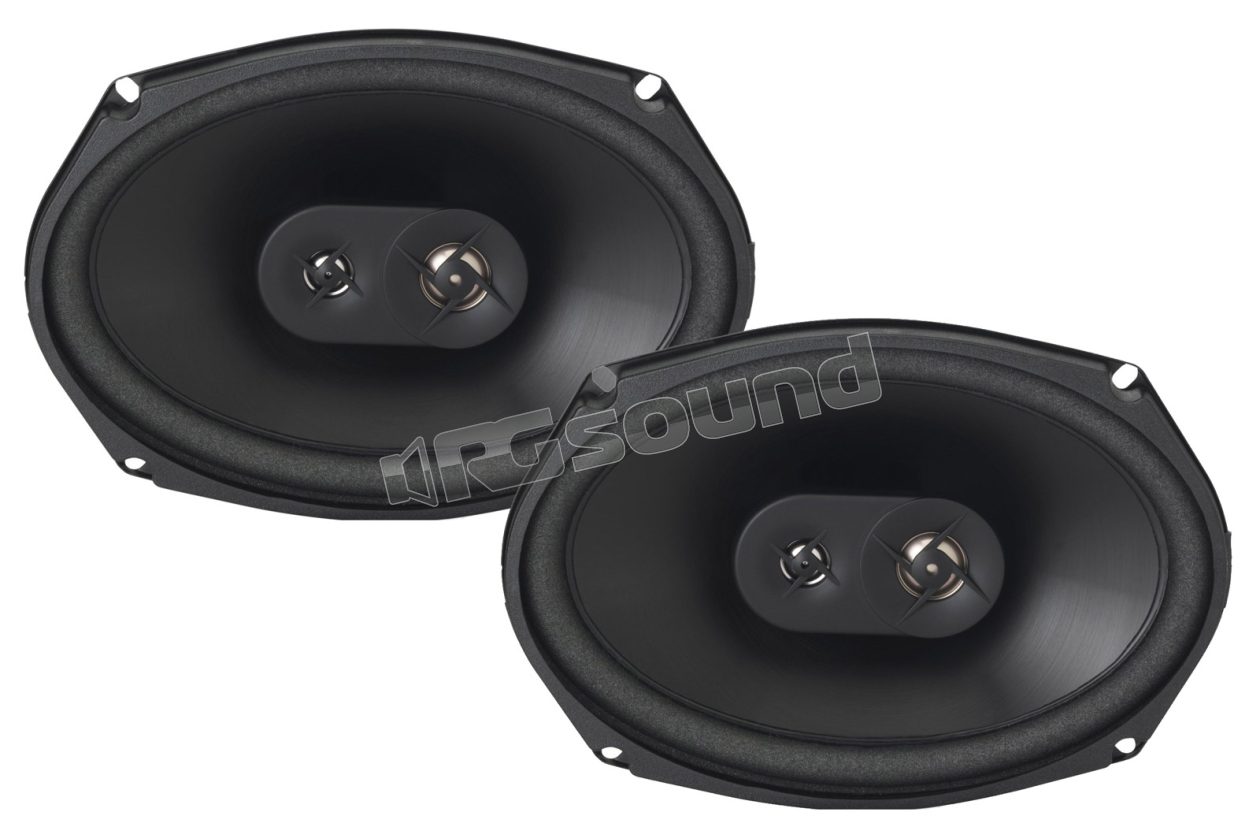

3-way 6"x9" speaker, power (RMS/Peak) 70W/210W, laminated titanium tweeter

The JBL CS-69 speakers are built with the Plus One® system, thanks to which JBL has managed to significantly increase the woofer area, while always remaining within the standard mounting diameter. This means a larger radiating surface of the woofers, which translates into more powerful and dynamic bass, with better control.

The tweeters of the JBL CS-69 speakers are made in My-Ti (Mylar/Titanium composite). This composition of materials is rigid, lightweight and extremely efficient. The titanium dome guarantees excellent frequency extension.

  • Standard woofer size 6x9" (inches) - 15x23 cm - 150x230 mm.

  • 3-way system: oval woofers with superstructures containing the secondary drivers.

  • The superstructures are made up of 1 tweeter and 1 supertweeter.

  • Crossovers integrated in the system, just connect the speakers to the audio source.

  • MAXIMUM power 420 W (2 x 210 W).

  • RMS power 140 W (2 x 70 W).

  • Sensitivity (2.83V/1m) 94 dB.

  • Frequency response 40 Hz / 20000 Hz.

  • Woofer resonance frequency Fs 57 Hz.

  • The manual contains all Thiele-Small parameters, for possible enclosure construction.

  • Rigid and resistant cones, with increased surface areas, JBL Plus One® system.

  • Efficient heat dissipation system for longer lasting performance.

  • Nominal impedance 4 Ohm.

  • Mounting depth 75 mm.

Discontinued
