CS-5C

JBL

Discontinued

Your price:
€ 49,90
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
70 - 20.000 Hertz
Woofer Size
130 mm
MAX Power
240 Watt
RMS Power
80 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Plus One cono
Tweeter Material
Titanio laminato

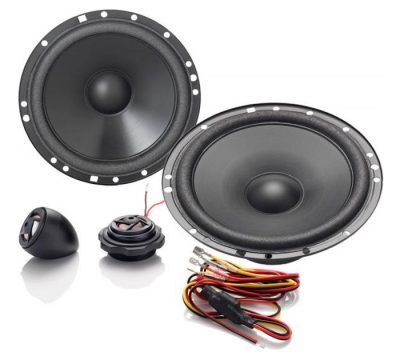

JBL CS-5C 2-way system, 130mm, power (RMS/Peak) 40W/120W.

The woofers of the JBL CS-5C Kit are constructed with the Plus One® system (patent pending), thanks to which JBL was able to significantly increase the woofer area, while always remaining within the standard mounting diameter of 130 mm. This means greater emitting surface area of the woofer, which translates into more powerful and dynamic bass, with better control.

The tweeters of the JBL CS-5C Kit are made of My-Ti (Mylar/Titanium composite). This composition of materials is rigid, light and extremely efficient. The titanium dome guarantees excellent frequency extension. The tweeters can be mounted completely flush, or surface mounted, thanks to the accessories of the I-Mount™ system and the new JBL Starfish™ patent.

CS-5C Specifications:

    • Standard woofer size 5.25" (inches) - 13cm - 130mm.

    • 2-way system with 2 woofers and 2 tweeters that can be positioned separately.

    • 2 crossover filters mounted "inline" on the tweeter cables, very easy to install.

    • MAXIMUM power 240W (2x120W).

    • RMS power 80W (2x40W).

    • Sensitivity (2.83V/1m) 92dB.

    • Frequency response 70Hz / 20000Hz.

    • Woofer resonance frequency Fs 80.77Hz.

    • The manual includes all Thiele-Small parameters, for possible construction of an enclosure.

    • Nominal impedance 4ohm.

    • Mounting depth of woofers 58mm.

    • Minimum depth of tweeters (without accessories) 18mm (+ 6mm for cables).

    • Minimum diameter of tweeters (without accessories) 40mm.

    • Included "domes" for external surface mounted positioning of tweeters ("ear-shaped" type).

Discontinued
