CS 360.30 Reference active top-of-the-line 3-way kit

Rainbow

Discontinued

Your price:
€ 7000,00
Price per single item (VAT included)
Type
3-way separate kit
Woofer Size
180 mm
Midrange Size
126 millimetri
Tweeter Size
98 millimetri
MAX Power
180 Watt
RMS Power
120 Watt
Frequency Response
35 - 50.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
cellulosa pressata e minerali

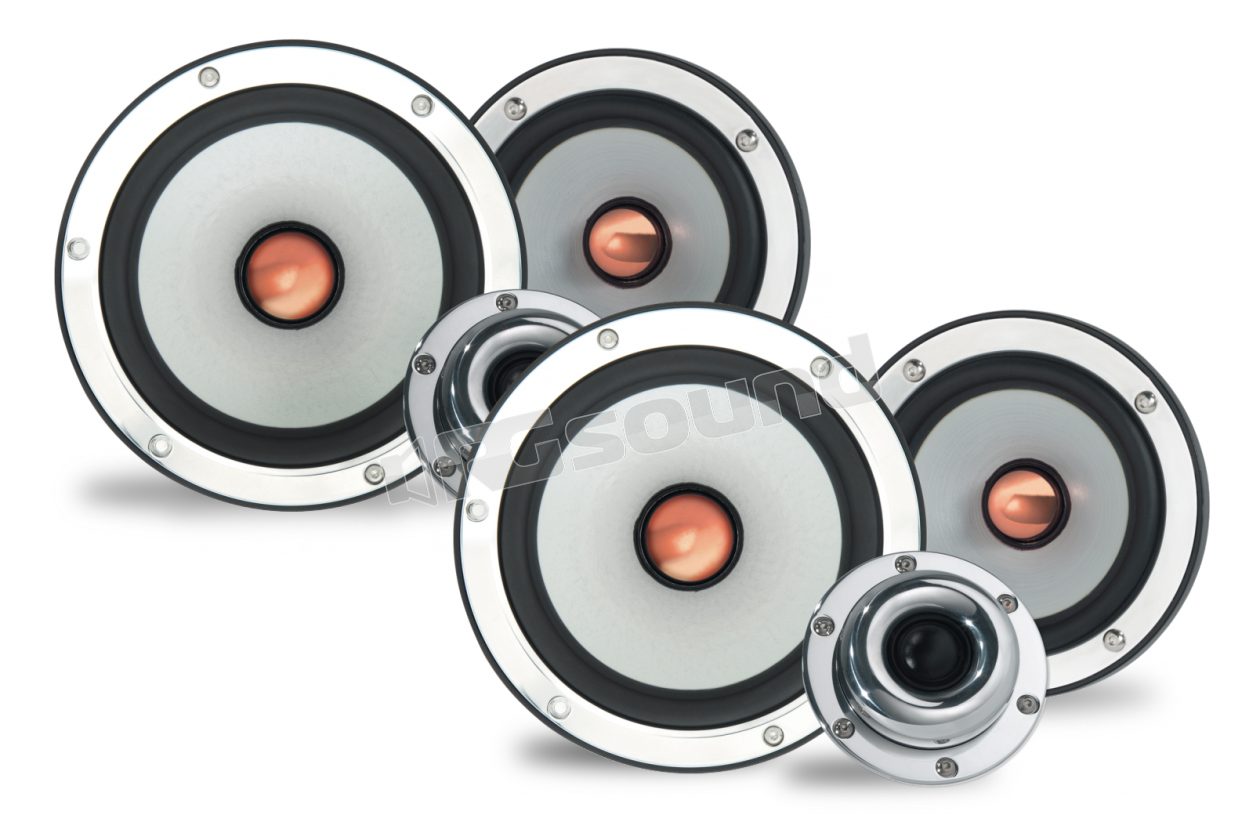

Rainbow CS 360.30 Reference active, top-of-the-line three-way kit.

We are pleased to present to you the prestigious three-way kit CS CS 360.30 Reference series, for a pure, powerful, desirable sound.
Sight and touch are enchanted by every detail of the speakers; after all, the mother company Rainbow has been producing top-quality products with maximum care and attention to technological innovations for at least 20 years.
Could their flagship series be any less? The speakers of the Reference series reach the highest point of technological development and design of the Rainbow brand. In the elegant case containing the CS 360.30 kit you will find the card with the product serial number that guarantees lifetime assistance.

CS 360.30 Reference active Features

Maximum power 180 Watt
RMS power 120 Watt
Minimum amplifier power 75 Watt
Sensitivity 90 dB 1W/1m
Frequency response 35 - 50.000 Hz
Impedance 4 Ohm
Slope 3 x 12 dB/Okt.
Crossover frequency 350 Hz / 2.000 Hz

Kit components:

Woofer W 160 Reference
Die-cast aluminum basket with extreme rigidity free from resonance
Gold-plated terminals and screws
Cone in cellulose membrane and mineral coating
Butyl rubber with low-distortion movement
Phase plug worked in copper for correction of crossover frequencies
37 mm coil in black Kapton resistant to high temperatures
The ventilated magnetic system offers the best cooling
High sensitivity due to neodymium ring magnet with extremely dense magnetic flux
Diameter 160 mm
External diameter 177 mm
Installation hole Ø 143 mm
Mounting depth, with and without ring, 84 mm

Midrange MR 100 Reference
Die-cast aluminum basket with extreme rigidity free from resonance
Gold-plated terminals and screws
Cone in cellulose membrane and mineral coating
Butyl rubber with low-distortion movement
Phase plug worked in copper for correction of crossover frequencies
25 mm coil in black Kapton resistant to high temperatures
The ventilated magnetic system offers the best cooling
High sensitivity due to neodymium ring magnet with extremely dense magnetic flux
Diameter 112 mm
External diameter 126 mm
Installation hole Ø 97 mm
Mounting depth, with and without ring, 57 mm

Tweeter CAL 30 Reference

Mineral fabric dome
Butyl surround for linear excursion
Sophisticated high-efficiency ventilation technology
Ventilated neodymium ring magnet
The spherical curvature of the design allows excellent sound reproduction and dispersion even in the lower treble
Mounting with directional adjustment
Massive external metal cover heat dissipator
Gold-plated screws
Diameter 86 mm
External diameter 98 mm
Mounting depth, with and without ring, 30 mm
Installation hole Ø 76 mm

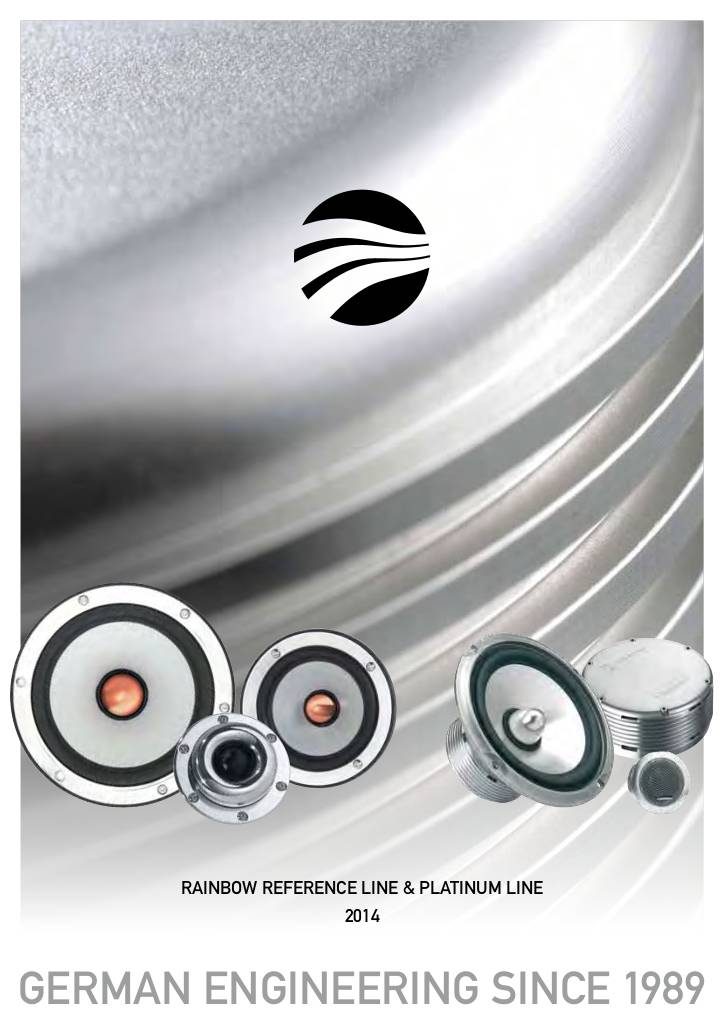

Brochure illustrativa

20151103095927-rainbow-reference-platinum-2014-web-low.pdf
