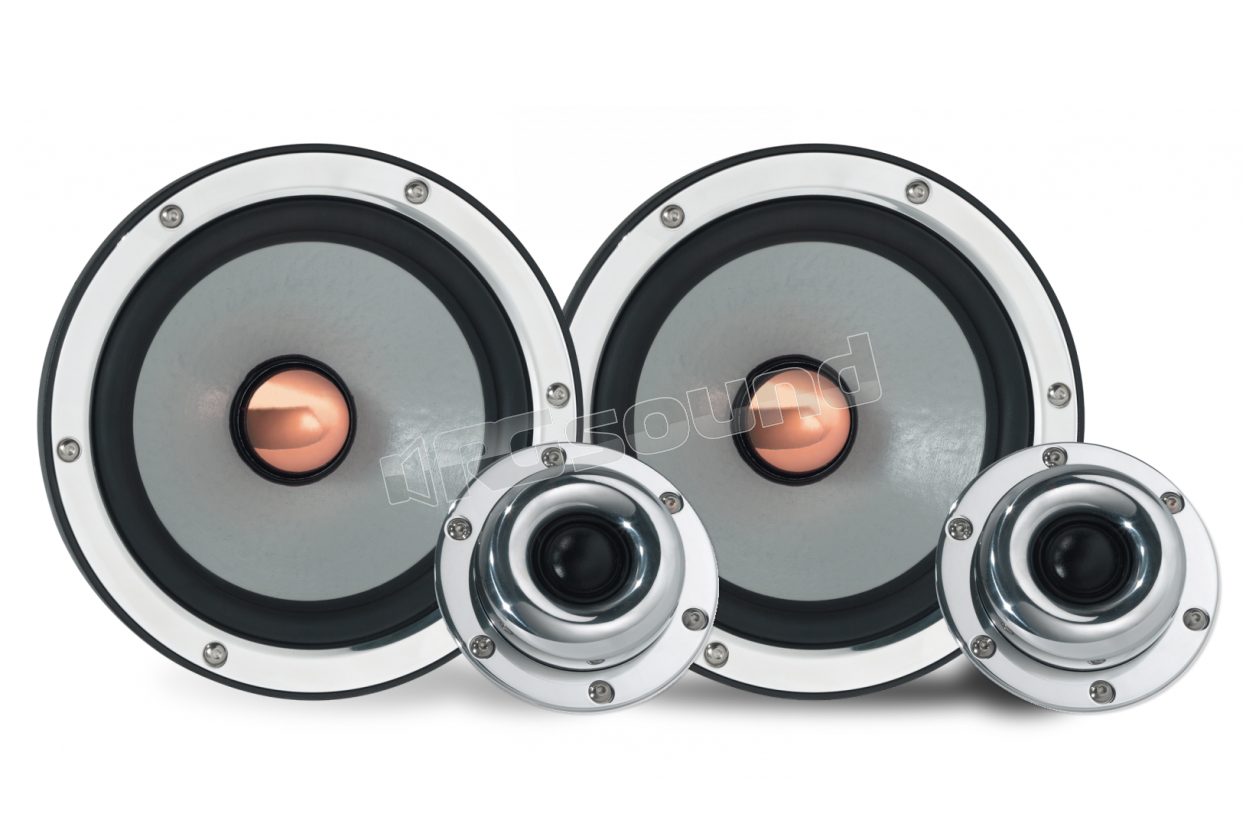

CS 260.30 Reference active top-of-the-range 2-way kit

Rainbow

Discontinued

Your price:
€ 4500,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
35 - 50.000 Hertz
Woofer Size
180 mm
Tweeter Size
98 millimetri
MAX Power
180 Watt
RMS Power
120 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
cellulosa pressata e minerali
Tweeter Material
Neomimio e cupola in tessuto

Rainbow CS 260.30 Reference active, two-way top of the line kit.

We are pleased to present to you the prestigious two-way kit CS 260.30 Reference series, for pure, powerful, desirable sound.
Sight and touch are enchanted by every detail of the speakers, after all the parent company Rainbow has been making first-rate products for at least 20 years with the utmost care and attention to technological innovations.
Could their flagship series be any less? The speakers of the Reference series touch the highest point of technological development and design of the Rainbow house. In the elegant briefcase containing the CS 260.30 kit you will find the card with the product serial number that guarantees you lifetime assistance.

Features CS 260.30 Reference active

Maximum power 180 Watt
RMS power 120 Watt
Minimum amplifier power 75 Watt
Sensitivity 90 dB 1W/1m
Frequency response 35 - 50,000 Hz
Impedance 4 Ohm
Slope 2 x 12 dB/Okt.
Crossover frequency 2,000 Hz

Kit components:

Woofer W 160 Reference
Die-cast aluminum basket with extreme rigidity free of resonances
Gold-plated terminals and screws
Cone in cellulose membrane and mineral coating
Butyl rubber with low distortion movement
Phase corrector worked in copper for the correction of crossover frequencies
37 mm coil in black heat-resistant Kapton
The ventilated magnetic system offers the best cooling
High sensitivity due to the neodymium ring magnet, with extreme density magnetic flux
Diameter 160 mm
External diameter 177 mm
Installation hole Ø 143 mm
Mounting depth, with and without ring, 84 mm

Tweeter CAL 30 Reference

Mineral fabric dome
Butyl surround for linear excursions
Sophisticated high-efficiency ventilation technology
Ventilated neodymium ring magnet
The spherical curvature of the design allows excellent sound rendering and dispersion even in the lower treble
Mounting with directional adjustment
Massive external metal cover with heat dissipation
Gold-plated screws
Diameter 86 mm
External diameter 98 mm
Mounting depth, with and without ring, 30 mm
Installation hole Ø 76 mm

Brochure illustrativa

20151103101019-rainbow-reference-platinum-2014-web-low.pdf
Discontinued
