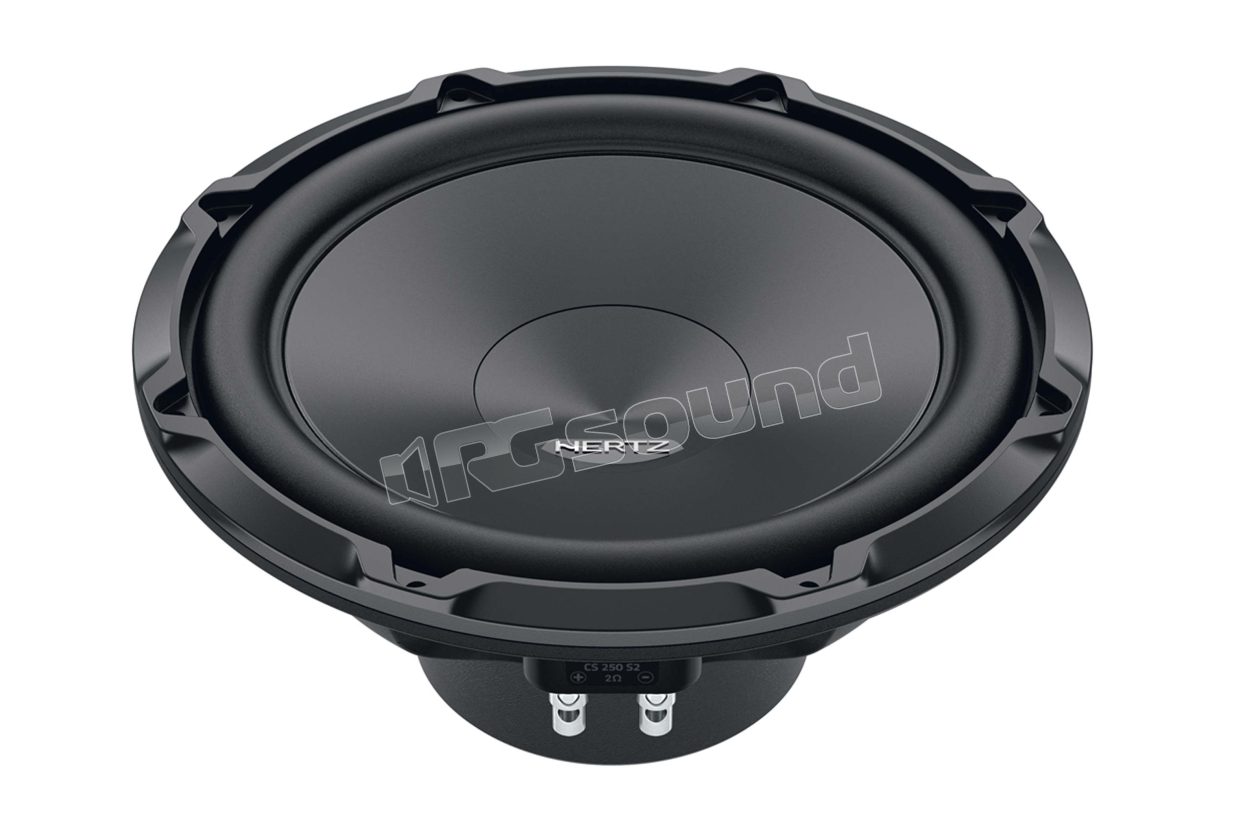

CS 250 S4 25cm (10") Subwoofer Cento series

Hertz
Your price:
€ 139,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
84 dB
Impedance
4 Ohm
Installation Depth
115 mm
Woofer Material
Polipropilene

Hertz CS 250 S4 Subwoofer 25cm (10") from the Cento series

Capable of achieving very powerful bass frequencies from ultracompact sealed enclosures, optimizing all electroacoustic parameters based on the set of objectives: high performance with boxes starting from 16 liters. The single 4 Ohm coil configuration offers maximum compatibility with any type of amplification.
The reduced depth, the compact magnetic group and the absence of a rear decompression port allow you to shape the box around the subwoofer achieving a depth close to that of the speaker, for maximum installation freedom on any type of car. The special six-layer coil cooling system maintains the operating temperature within an optimal range even in case of prolonged listening sessions at high acoustic pressure.
An innovative dynamic optimization system, obtained thanks to the spider support that acts as an air duct towards the ventilation holes on the basket, drastically reduces the acoustic distortions generated by air compression during high excursions. The terminal strip uses solid push connectors that accept cables up to 8 AWG to offer maximum ease of connection even in installations with multiple subwoofers. The subwoofer is also equipped with an elegant high-strength ABS plastic gasket that allows you to secure the grille to complete the installation.
The optional CG 250 grille (see accessories) in sturdy black metal mesh offers complete protection for the subwoofer and an appealing appearance thanks to the aluminum logo with Hertz diamond for better integration in the car. With the Cento subwoofers even the youngest enthusiasts will be able to enjoy exciting bass frequency reproduction in the car.
CS 250 S4 Features
  • Electroacoustic design optimized for boxes starting from 16 liters.
  • Fluid dynamic optimization system that drastically reduces acoustic distortions generated by air compression at high excursions.
  • Cone geometry and polypropylene dust cap optimized through FEM simulations to reduce low frequency distortion.
  • 35 mm voice coil and 4 Ω wrapped in six layers of pure copper on a high thermal resistance fiberglass support.
  • Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
  • Ideal for use in custom boxes that can be shaped around the subwoofer thanks to its compact size and lack of decompression port.
  • Terminal strip with solid pressure contacts that accept cables up to 8 AWG to offer low wiring resistance and maximum ease of connection even in installations with multiple subwoofers.
  • Rubber protection of the magnetic group and high-strength ABS plastic gasket that allows the application of the optional grille for an elegant finish.

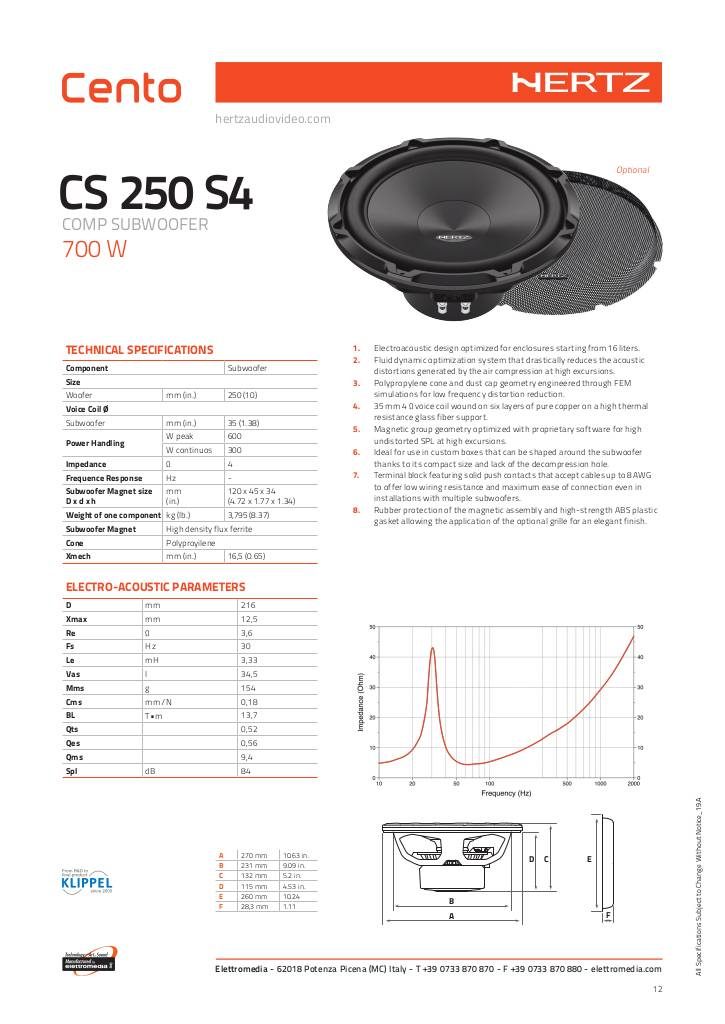

Scheda tecnica

n-20190924104450-hertz-cento-cs250-s4-tech-sheet-rev19a.pdf

Hertz CS 250 S4 Technical Specifications

  • Dimensions mm (inches) 250 (10)
  • Power handling - Peak W 600
  • Power handling - Continuous W 300
  • Impedance Ω 4
  • Sensitivity dB SPL 84
  • Voice coil Ø mm (inches) 35 (1.38)
  • Xmax mm 12.5
  • X-mech mm (inches) 16.5 (0.65)
  • Ri Ω 3.6
  • Fs Hz 30
  • Vas 34.5
  • Qts 0.52
  • Qes 0.56
  • Qms 9.4
  • Spl dB 84
