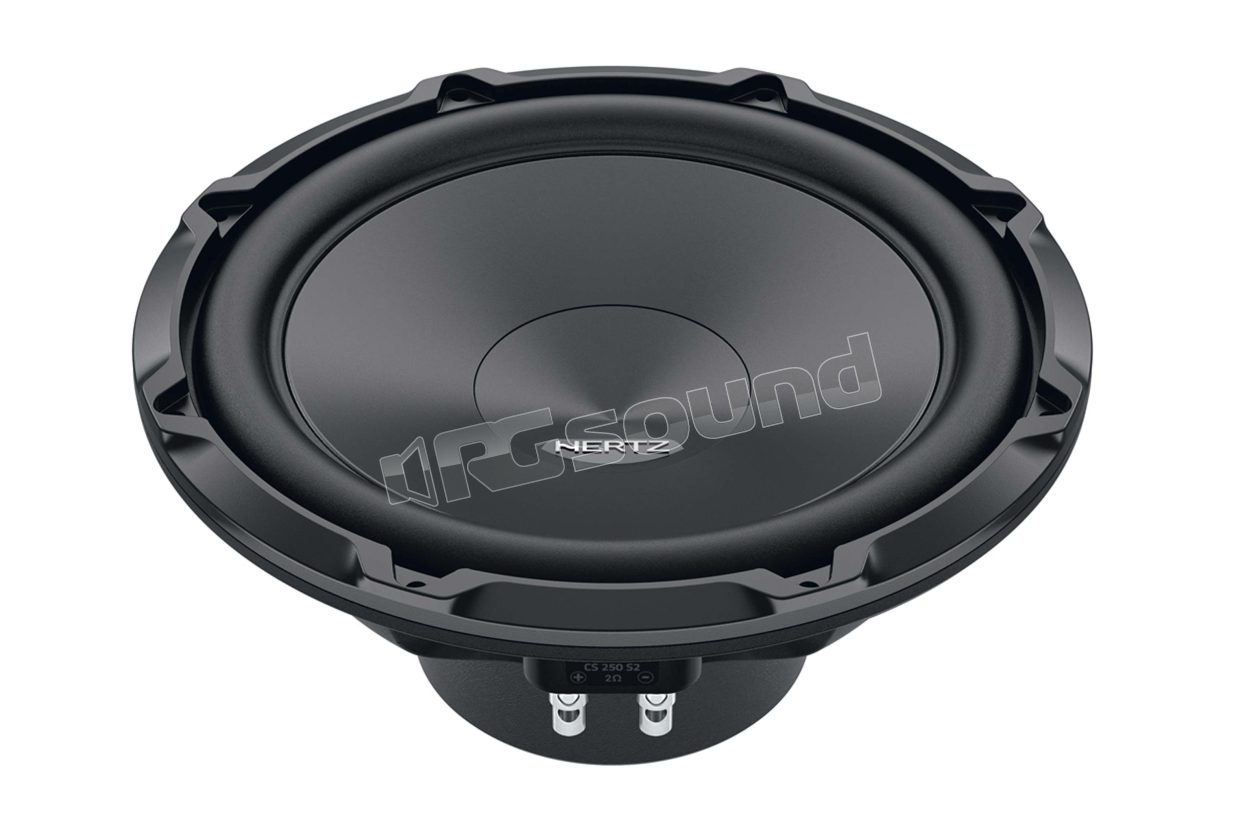

CS 250 S2 25cm (10") subwoofer, Cento series

Hertz
Your price:
€ 139,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
84 dB
Impedance
2 Ohm
Installation Depth
115 mm
Woofer Material
Polipropilene

Hertz CS 250 S2 Subwoofer 25cm (10") from the Cento series

Subwoofer 25cm (10") from the Cento series, capable of achieving very powerful bass frequencies from ultracompact sealed enclosures, optimizing all electroacoustic parameters based on the set of objectives: high performance with enclosures starting from 16 liters. The single coil configuration of 2 Ohm offers maximum compatibility with any type of amplification.

The reduced depth, compact magnetic group and absence of a rear decompression port allow you to mold the box around the subwoofer obtaining a depth close to that of the speaker, for maximum installation freedom on any type of car. The special six-layer coil cooling system maintains the operating temperature within an optimal range even in case of prolonged listening sessions at high acoustic pressure.

An innovative dynamic optimization system, achieved through the spider support which acts as an air duct towards the ventilation holes on the basket, drastically reduces the acoustic distortions generated by air compression during high excursions. The terminal strip uses solid push connectors that accept cables up to 8 AWG to offer maximum ease of connection even in installations with multiple subwoofers. The subwoofer is also equipped with an elegant high-strength ABS plastic gasket that allows you to secure the grille to complete the installation.

The optional CG 250 grille (see accessories) in sturdy black metal mesh offers complete protection for the subwoofer and an attractive appearance thanks to the aluminum logo with Hertz diamond for better integration in the car. With Cento subwoofers even younger enthusiasts will be able to enjoy exciting bass frequency reproduction in the car.

CS 250 S2 Features

  • Electroacoustic design optimized for enclosures starting from 16 liters.
  • Fluid dynamic optimization system that drastically reduces acoustic distortions generated by air compression at high excursions.
  • Cone and dust cap geometry in polypropylene designed through FEM simulations to reduce low frequency distortion.
  • 35 mm voice coil and 2 Ω wound in six layers of pure copper on a high thermal resistance fiberglass support.
  • Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
  • Ideal for use in custom enclosures that can be molded around the subwoofer thanks to its compact dimensions and lack of decompression port.
  • Terminal strip with solid pressure contacts that accept cables up to 8 AWG to offer low wiring resistance and maximum ease of connection even in installations with multiple subwoofers.
  • Rubber protection of the magnetic group and high-strength ABS plastic gasket that allows the application of the optional grille for an elegant finish.

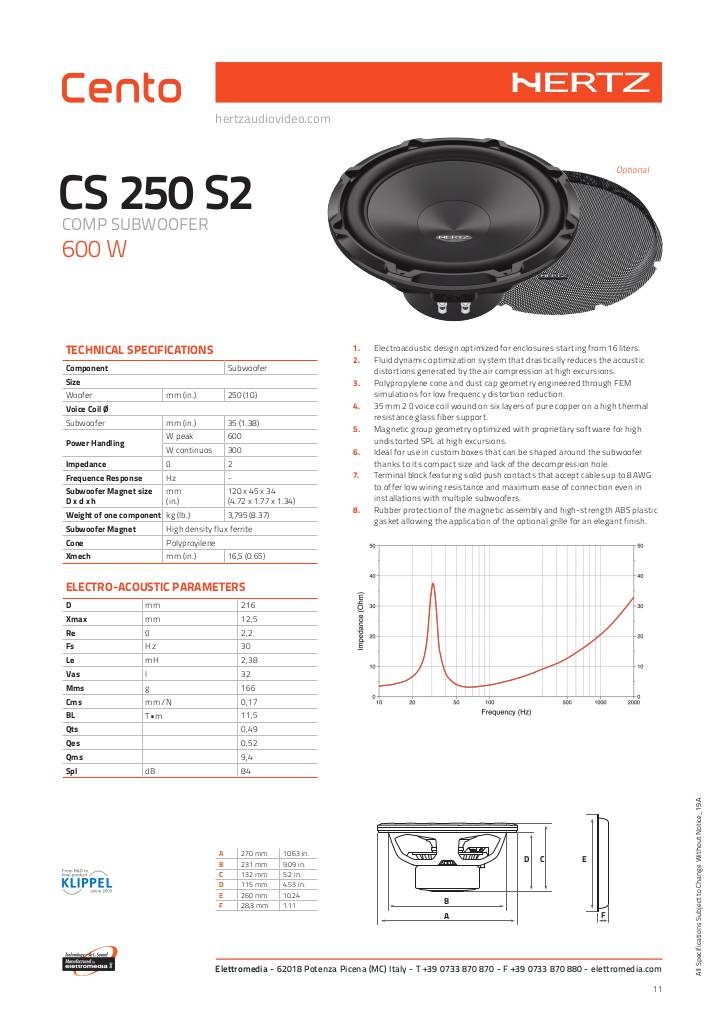

Scheda tecnica

n-20190924104758-hertz-cento-cs250-s2-tech-sheet-rev19a.pdf

Hertz CS 250 S2 Technical Specifications

  • Dimensions mm (inches) 250 (10)
  • Power Handling - Peak W 600
  • Power Handling - Continuous W 300
  • Impedance Ω 2
  • Sensitivity dB SPL 84
  • Voice Coil Ø mm (inches) 35 (1.38)
  • Xmax mm 12.5
  • X-mech mm (inches) 16.5 (0.65)
  • Ri Ω 2.2
  • Fs Hz 30
  • Vas 32
  • Qts 0.49
  • Qes 0.52
  • Qms 9.4
  • Spl dB 84
€ 139,00 Price incl. VAT
