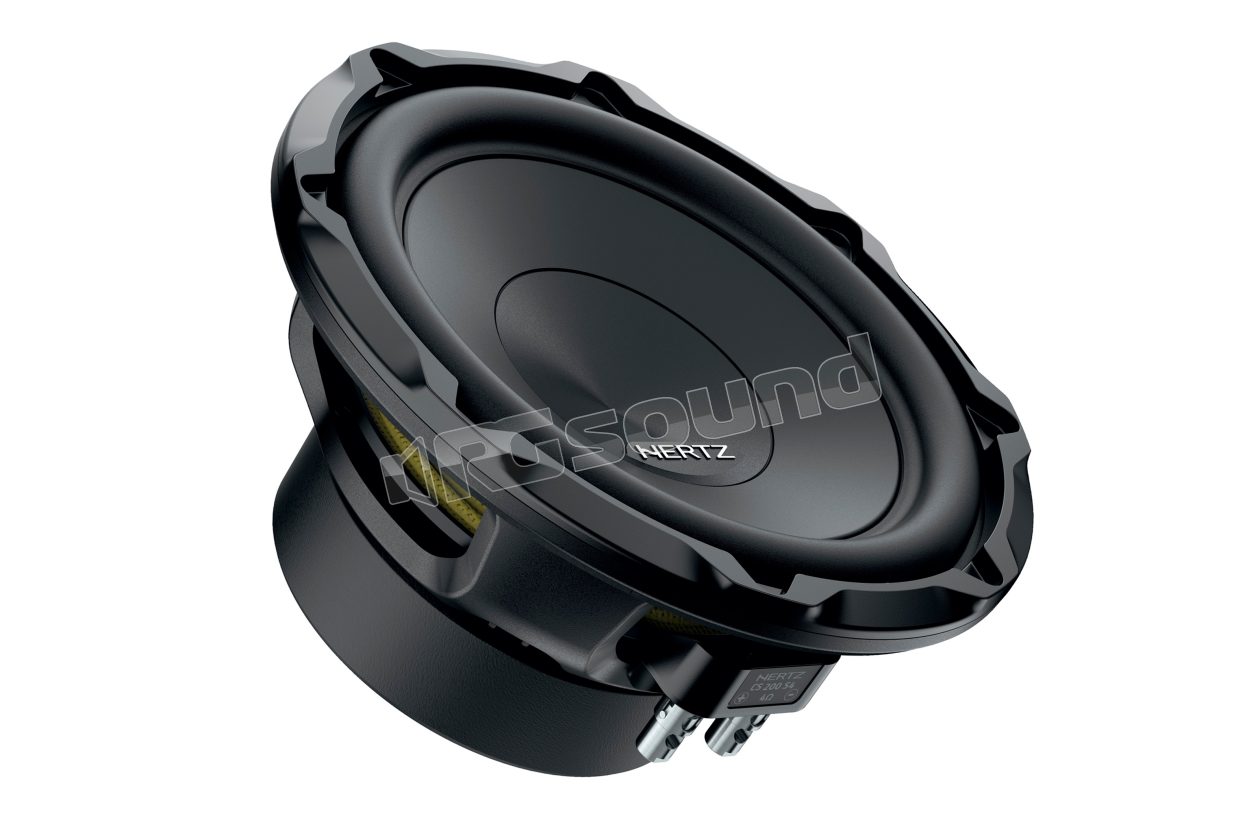

CS 200 S4 200mm Cento series subwoofer

Hertz
Your price:
€ 119,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
300 Watt
RMS Power
150 Watt
Sensitivity
84 dB
Impedance
4 Ohm
Weight
2,87 Kg
Installation Depth
101 mm
Woofer Material
Polyproyilene

Hertz CS 200 S4 subwoofer 200 mm (8"), power 300 W, impedance 4 Ohm, single voice coil

The Hertz CS 200 S4 subwoofer from the Cento series is able to deliver powerful bass from compact sealed enclosures, starting from 9.6 l (0.33 CF). The reduced depth, the compact magnetic assembly, and the absence of a rear decompression port, allow you to shape the enclosure around the subwoofer, achieving a depth almost equal to that of the driver itself, for maximum installation freedom on any type of vehicle.

The special cooling system of the mobile voice coil with six layers maintains the operating temperature within the optimal range, even in case of prolonged listening sessions at high sound pressure. An innovative system for dynamic optimization of the fluid and reduction of turbulence has been developed, thanks to the spider support that acts as an air duct towards the vents on the basket. This drastically reduces the acoustic distortions generated by air compression at high excursions.

The cone geometry, suspension and spider have been optimized through FEM (Finite Element Method) simulations to achieve the best performance configuration, which guarantees control and low distortion even at high mechanical excursions of the mobile assembly. The terminal strip uses solid pressure connectors that accept cables up to 8 AWG to provide low wiring resistance and maximum ease of connection, even in installations with multiple subwoofers.

The subwoofer is also equipped with an elegant high-strength ABS plastic gasket that allows you to fix the grille to complete the installation. The optional grille in sturdy black metal mesh offers complete protection for the subwoofer and an attractive appearance, thanks to the Hertz Diamond logo in aluminum.

CS 200 S4 Features

  • Electro-acoustic design optimized for enclosures starting from 9.6 liters.
  • Fluid dynamics optimization system that drastically reduces acoustic distortions generated by air compression at high excursions.
  • Cone geometry in polypropylene and dust cap designed through FEM simulations to reduce low frequency distortion.
  • 35 mm and 4 Ω mobile voice coil wound in six layers of pure copper on a high thermal resistance fiberglass support.
  • Magnetic assembly geometry optimized with proprietary software for high undistorted SPL at high excursions.
  • Ideal for use in custom enclosures that can be shaped around the subwoofer thanks to its compact dimensions and the lack of a decompression port.
  • Terminal strip with solid pressure contacts that accept cables up to 8 AWG to provide low wiring resistance and maximum ease of connection even in installations with multiple subwoofers.
  • Rubber protection of the magnetic assembly and high-strength ABS plastic gasket that allows the application of the optional grille for an elegant finish.

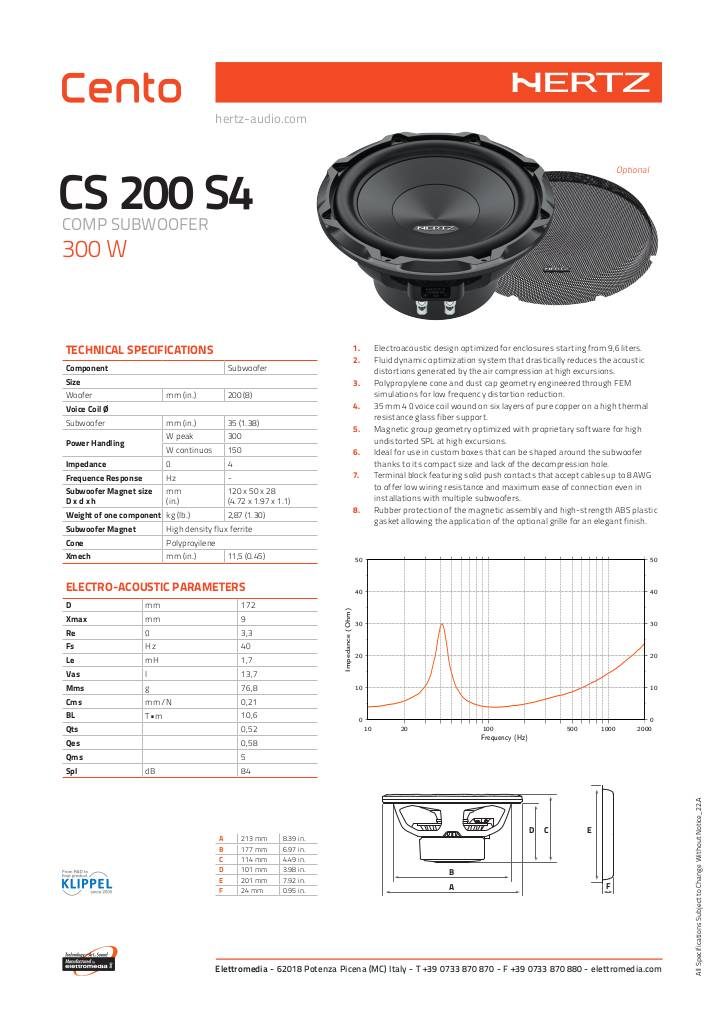

Scheda tecnica

n-20220614153446-hertz-cento-scheda-cs200-22a.pdf

Hertz CS 200 S4 Technical specifications

  • Size mm 200 (8")
  • Nominal power W 150
  • Power handling - Peak W 300
  • Impedance Ohm 4
  • Voice coil type single
  • No filter component SUBWOOFER
  • Voice coil Ø 35 (1.38)
  • Magnet size D x d x h mm (inches) 120 x 50 x 28 (4.72 x 1.97 x 1.1)
  • Component weight kg (lb.) 2.87 (1.30)
  • Magnet High density Ferrite
  • Cone Polypropylene
  • Xmech mm (inches) 11.5 (0.45)
€ 119,00 Price incl. VAT
