CP-750Nd

Beyma

Discontinued

Your price:
€ 426,40
Price per single item (VAT included)
Type
Compression tweeter
Speaker Size
150 mm
MAX Power
120 Watt
RMS Power
60 Watt
Frequency Response
600 - 20.000 Hertz
Sensitivity
112 dB
Impedance
8 Ohm
Weight
3,5 Kg
Installation Depth
89 mm
Voice Coil Diameter
72 mm

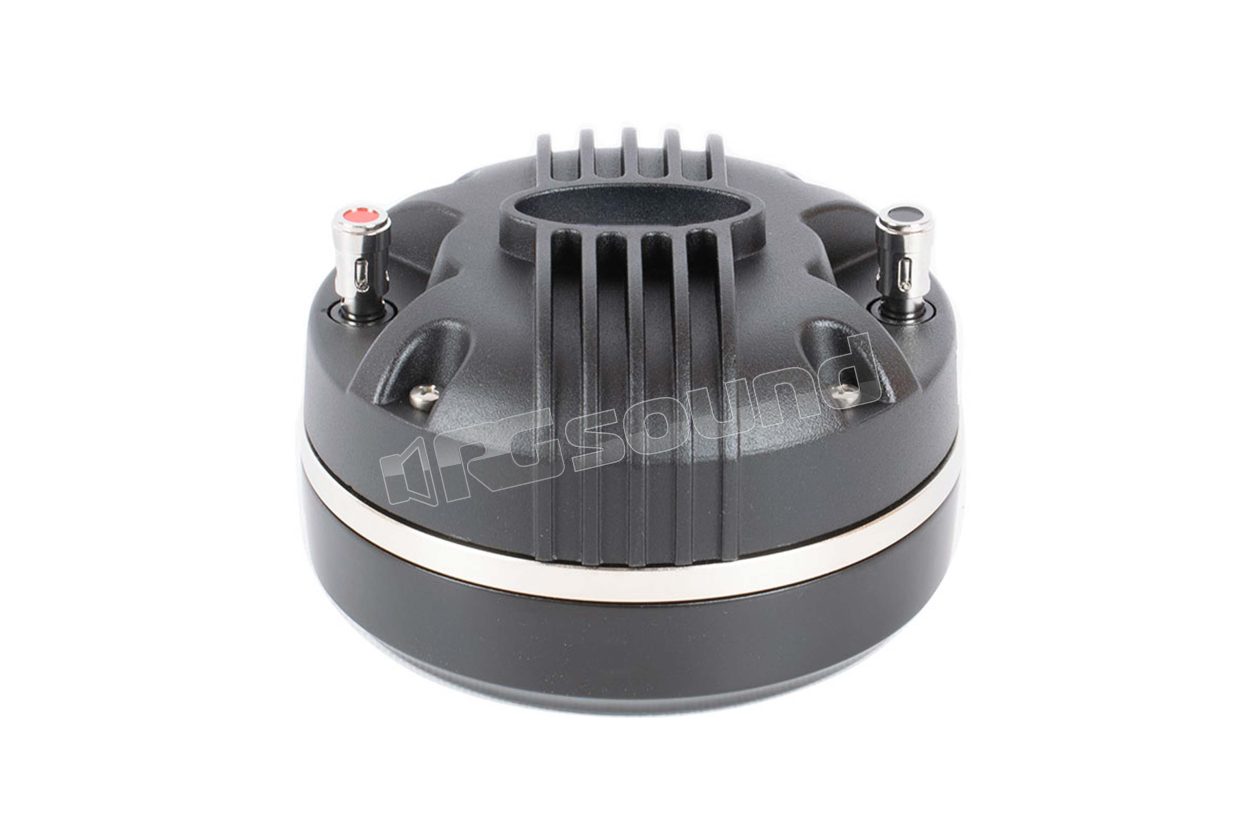

Beyma CP-750Nd compression tweeter 145 mm at 8 Ohm

Throat diameter 50.8 mm 2 in
Nominal impedance 8 Ohm
Minimum impedance 7.1 ohm @ 5 kHz
Ri 5.5 ohm
Power handling capacity 60 W AES above 800 Hz
Program power 120 W above 800 Hz
Sensitivity 112 dB 1 W @ 1 m coupled to horn
Frequency range 600-20000 Hz
Recom. crossover frequency 800 Hz or higher (minimum slope 12 dB / oct.)
Voice coil diameter 72.2 mm 2.9 inches
Flux density 2.2 T
BL factor 11.5 N / A
Diaphragm material: titanium dome with polyester coating
External diameter 145 mm 5.7 in
Depth 89 mm 3.5 inches
Mounting: four M6 threaded holes. 90º apart
Diameter 101.6 mm (4 inches)
Mounting hardware is supplied in the package
Net weight 3.5 kg 7.7 pounds
Total weight 3.75 kg 8.25 pounds
Neodymium magnet

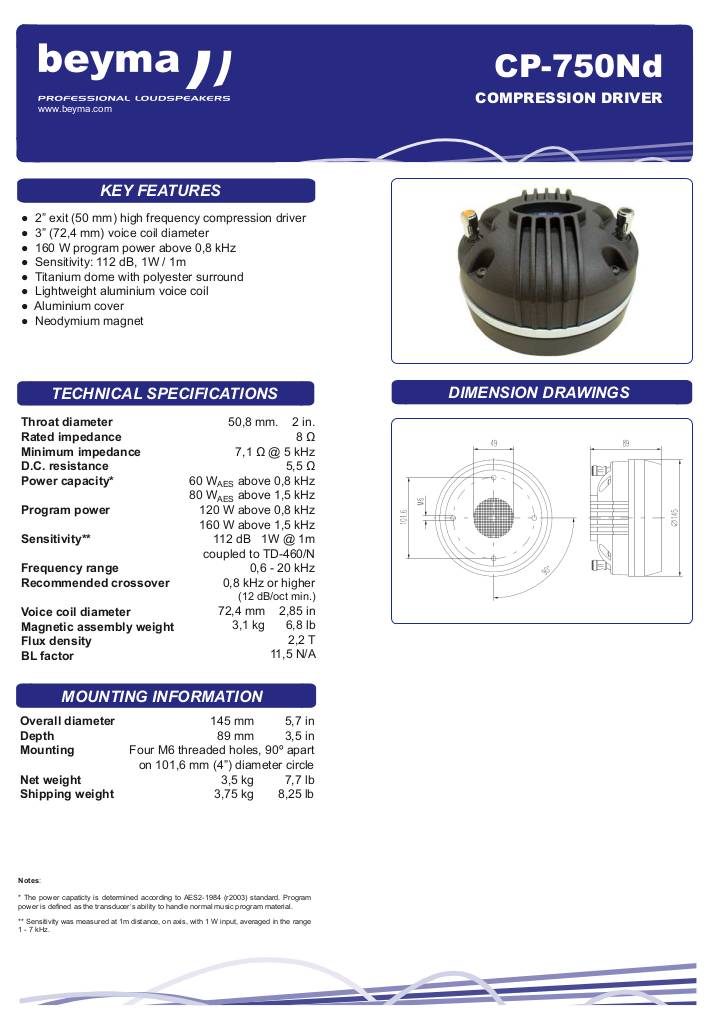

Scheda tecnica

n-20180919125303-cp-750nd.pdf
Discontinued
