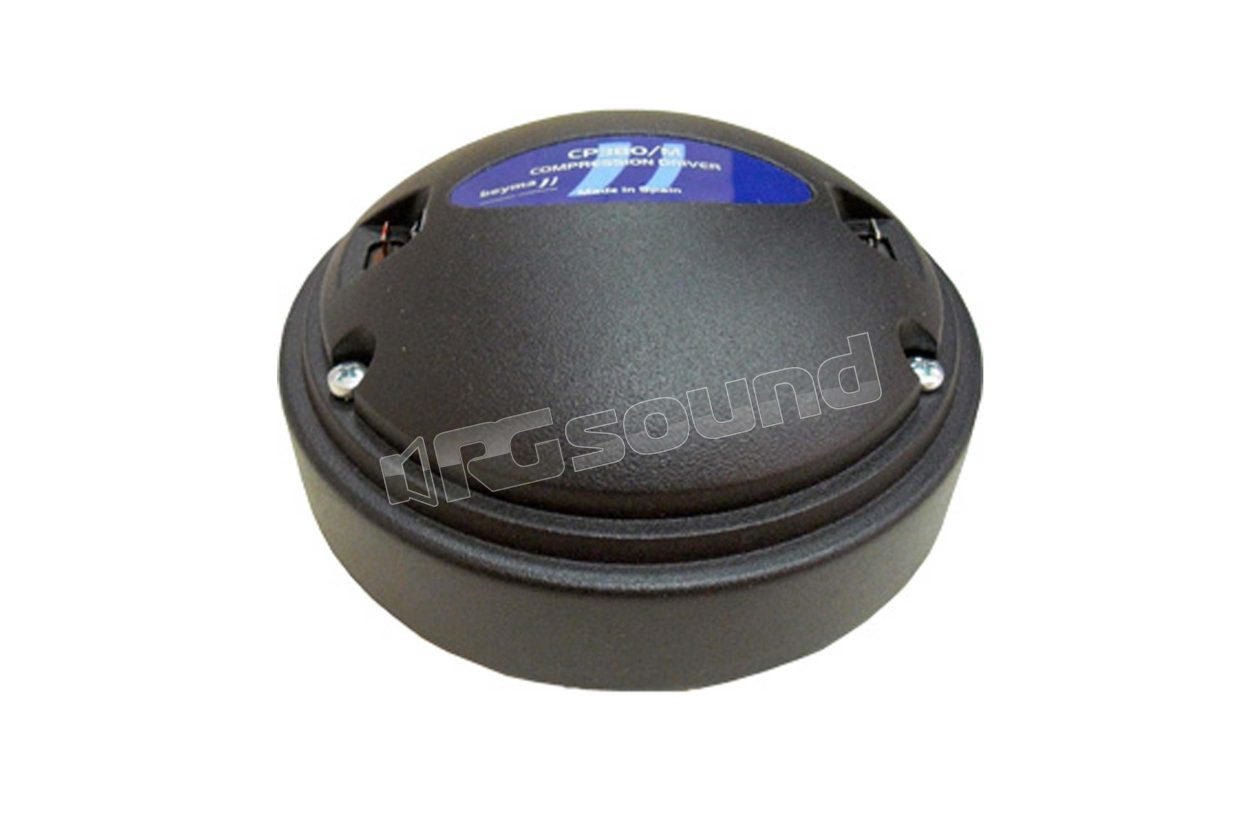

CP-380/M

Beyma

Discontinued

Your price:
€ 196,00
Price per single item (VAT included)
Type
Compression tweeter
Speaker Size
150 mm
MAX Power
140 Watt
RMS Power
70 Watt
Frequency Response
800 - 20.000 Hertz
Sensitivity
107 dB
Impedance
8 Ohm
Weight
3,25 Kg
Installation Depth
75 mm
Voice Coil Diameter
44 mm

Beyma CP-380/M professional high-quality compression driver, is equipped with a lightweight diaphragm made of polyester, fixed to an aluminum voice coil that provides exceptional acoustic pressure over an extremely wide frequency range, with a uniform, flat response, and low harmonic distortion.

Beyma CP380/M technical features

Throat diameter 25 mm 1 in

Nominal impedance 8 Ohm

Minimum impedance 5.2 ohm @ 4.5 kHz

Re 4.7 ohm

Power capacity 70 W AES above 1.5 kHz

Program power 140 W above 1.5 kHz

Sensitivity 107 dB 1 W @ 1 m coupled to horn

Frequency range 800-20000 Hz

Recom. crossover frequency 1.2 kHz or higher (12dB/oct min slope)

Voice coil diameter 44.3 mm 1.75 in

Flux density 2 T

BL factor 7 N/A

Diaphragm material Polyester

External diameter 146.5 mm 5.77 in

Depth 75 mm 2.95 in

Three M5 threaded holes. 120º apart on 57 mm (2.24 in) diameter circle.

Two M5 threaded holes. 180º apart on 76.2 mm (3 in) diameter circle.

Mounting hardware is supplied

Net weight 3.25 kg 7.16 lb

Total weight 3.4 kg 7.5 lb

Magnet Ferrite

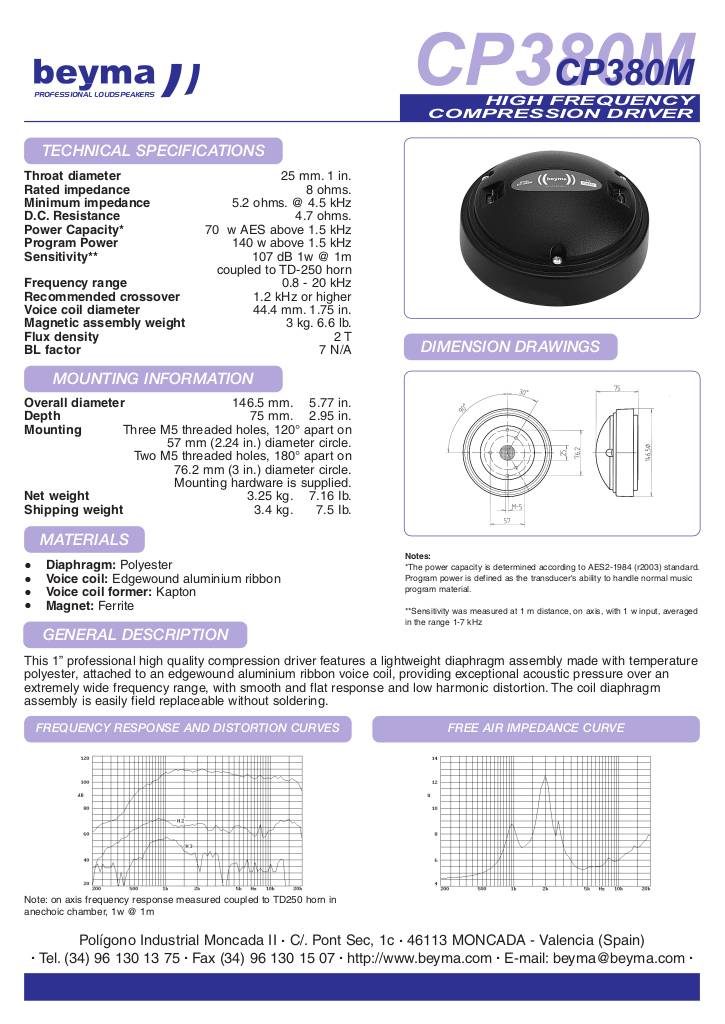

Scheda tecnica

n-20180518150646-cp-380-m.pdf
