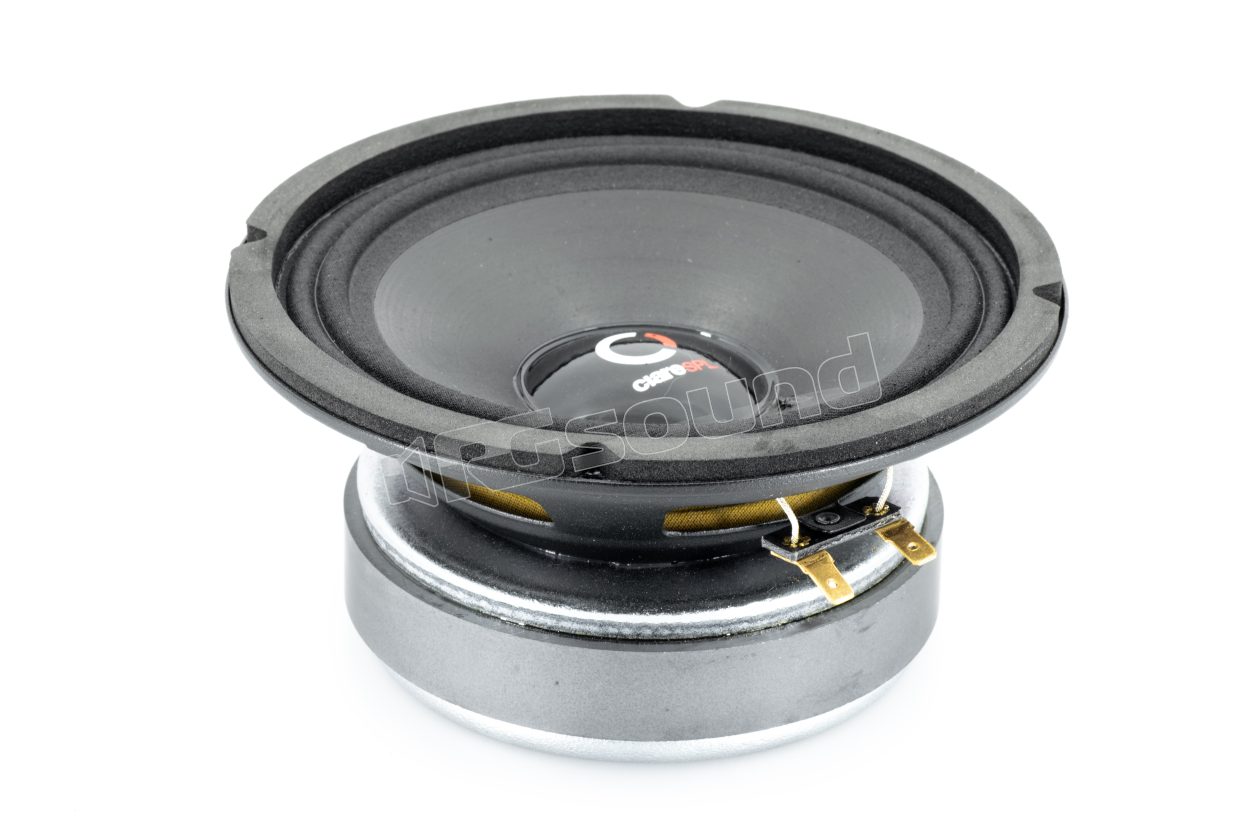

CME160 16.5cm high-power woofer 130 W RMS / 250 W max

Ciare
Your price:
€ 54,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
260 Watt
RMS Power
130 Watt
Frequency Response
100 - 6000 Hertz
Sensitivity
97,5 dB
Impedance
4 Ohm
Weight
1,9 Kg
Installation Depth
80 mm
Woofer Material
Cellulosa trattata

Ciare CME160woofer 165 mm (6.5"), V.C.38 mm, 260 W, 99.5 dB, 70-8000 Hz, 4 ohm

Main features:

  • This woofer is equipped with an exponential shape cone made of treated cellulose, cotton suspension and ferrite magnet.
  • Resistant steel basket.
  • Suitable for installations in closed box 5 dm³ (0.18 ft³) and reflex.
  • Installation depth 80 mm
  • Mounting hole diameter 142 mm
  • RMS Power 130W / max 260W

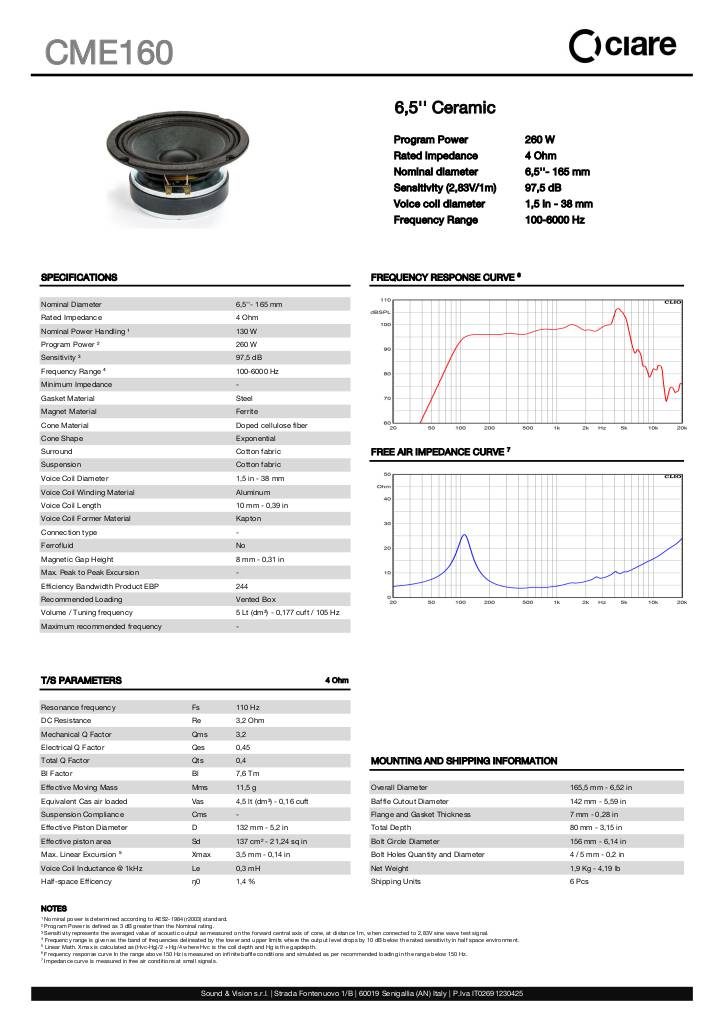

Scheda tecnica

n-20260817153243-ciare-cme160-en.pdf

Ciare CME160 technical specifications

  • Speaker diameter 165 mm (6.5 in)
  • Rated power 130 W
  • Maximum power 260 W
  • Sensitivity 97.5 dB
  • Voice coil diameter 38 mm (1.5 in)
  • Kapton former
  • Nominal impedance 4 Ω
  • Frequency response 100 Hz - 6000 Hz
  • Aluminum winding 10 mm (0.39 in)
  • Cotton suspension
  • Ferrite magnet
  • Recommended Tuning 105 Hz
  • Faston connectors
  • Cone made of treated cellulose
  • Total diameter 165.5 mm (6.52 in)
  • Mounting hole diameter 142 mm (5.59 in)
  • Distance diameter mounting holes 156 mm (6.14 in)
  • Depth 80 mm (3.15 in)
  • Weight 1.9 kg (4.19 lb)
  • Steel basket

Parameters

  • Fs 110 Hz
  • Qes 0.45
  • Qts 0.4
  • Sd 137 cm² (21.23 in²)
  • Xmax 3.5 mm (0.14 in)
  • Bl 7.6 Tm
  • d 132 mm (5.2 in)
  • Re 3.2 Ω
  • Qms 3.2
  • Vas 4.5 dm³ (0.16 ft³)
  • η0 1.4 %
  • Mms 11.5 g
  • Le 0.3 mH
  • EBP 244 Hz
