CM510

Ciare

Discontinued

Your price:
€ 185,00
Price per pair (VAT included)
Type
Midrange
Speaker Size
100 mm
MAX Power
160 Watt
RMS Power
80 Watt

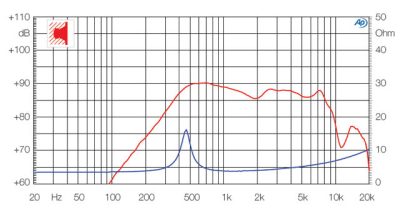

Frequency Response
500 - 8.000 Hertz
Sensitivity
88 dB
Impedance
4 Ohm
Weight
0,2 Kg
Installation Depth
22 mm
Midrange Cone Material
Neodimio

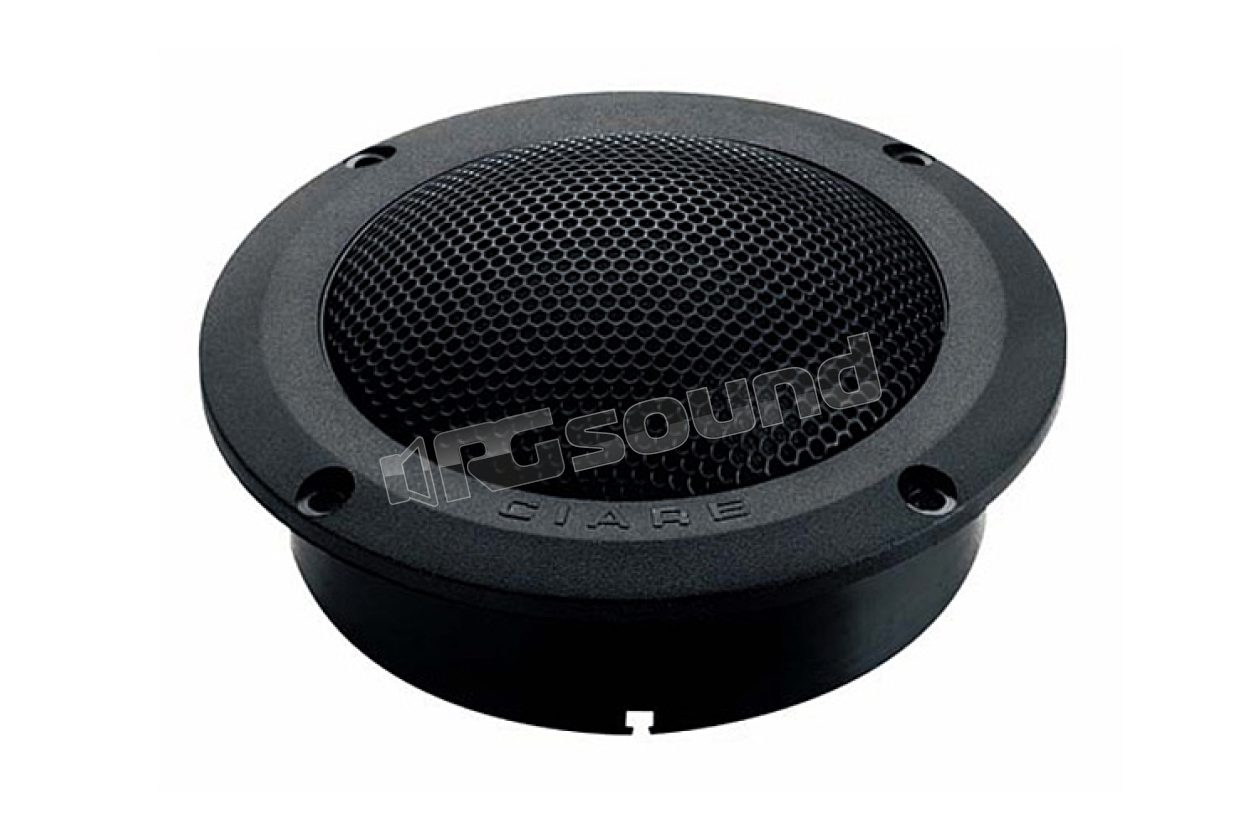

Ciare CM510 midrange, 50mm size, cloth soft dome with neodymium magnet, adjustable, max power 160W. 4Ohm. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first of all the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely independently all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CM510 Features

  • Max power: 160W
  • Nominal power: 80W
  • Diameter: 2''-50mm
  • Nominal impedance: 4Ω
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 88 dB

CM510 Materials

  • Magnet type: Neodymium
  • Diaphragm type: Cloth
  • Former type: Kapton
  • Diaphragm profile: Dome
  • Air gap height: 2.5 mm

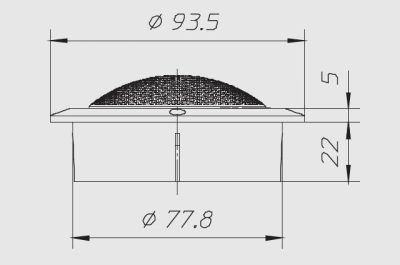

CM510 Dimensions

  • Outer diameter: 93.5 mm
  • Depth under flange: 22 mm
  • Flange thickness: 5 mm
  • Panel hole: 78 mm
  • Number of mounting holes: 4
  • Diameter pos. mounting holes: 86
  • Weight with single packaging: 0.20 Kg

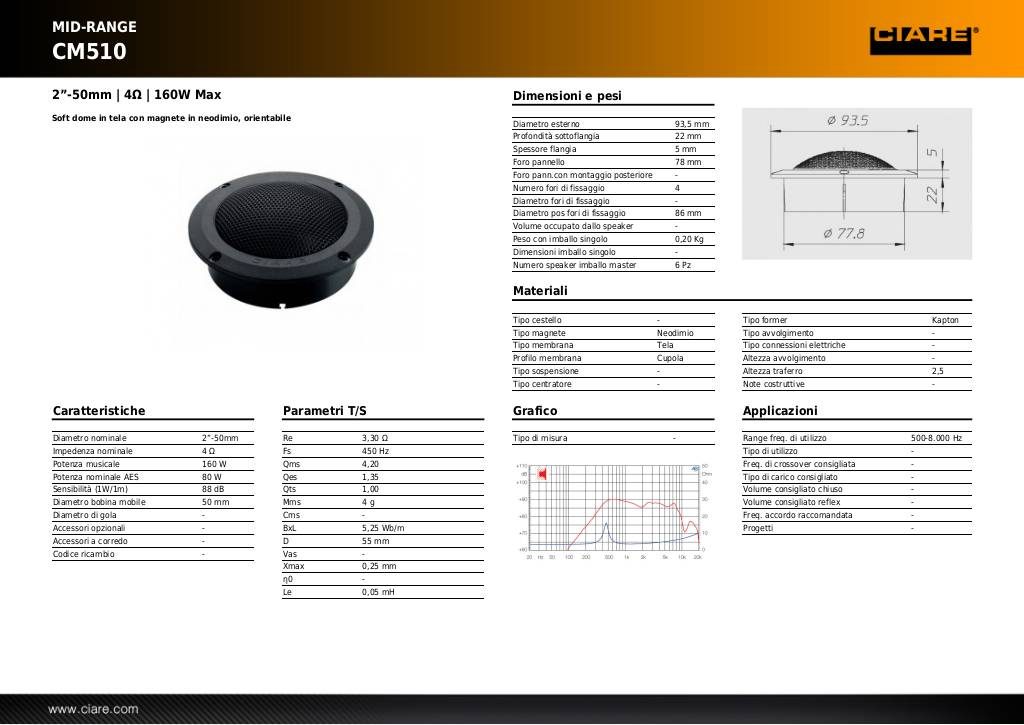

Scheda tecnica

20131029110323-cm510.pdf

Pair of Ciare CM510 midrange speakers
Discontinued
