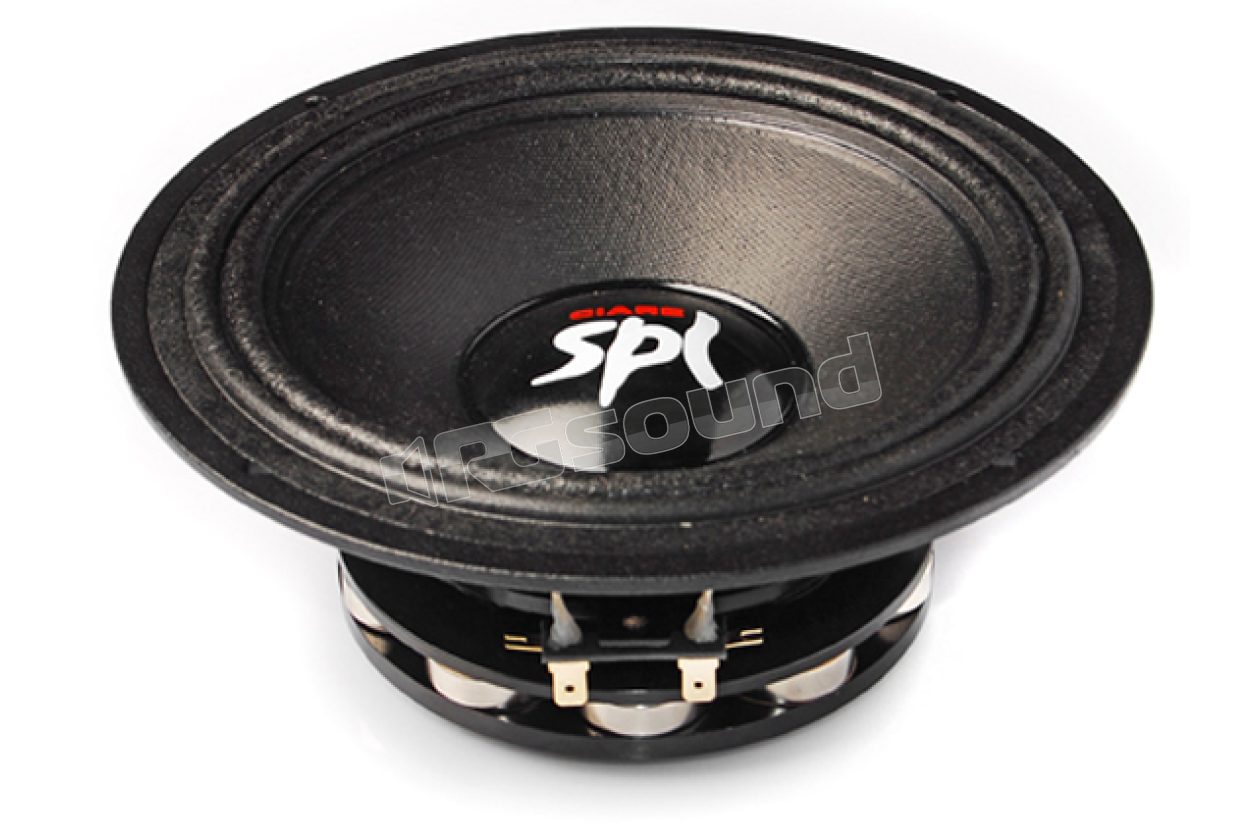

CM206ND extended range SPL

Ciare

Discontinued

Your price:
€ 216,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
110 - 4.500 Hertz
Sensitivity
98 dB
Impedance
4 Ohm
Weight
2,8 Kg
Installation Depth
80,5 mm
Woofer Material
Cestello in Alluminio magnete in Neodimio

CIARE CM206ND midwoofer extended range 200mm for SPL competitions with treated cellulose membrane, NOMEX fabric suspension, double flat surround, ELSG technology. Appealing total black look. Ciare is a company constantly keeping pace with technological innovations and under continuous stimulus from market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

Features CM206ND

  • Music power: 400 W
  • AES rated power: 200 W
  • Nominal diameter: 8''-200mm
  • Nominal impedance: 4 Ω
  • Voice coil: 50mm
  • Sensitivity 1W/1m: 98 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 1.5 dm3
  • Recommended tuning frequency: 130 Hz
  • Frequency range of use: 110-4,500 Hz


MaterialsCM206ND

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Membrane type: Treated cellulose fiber
  • Suspension type: Nomex
  • Former type: Kapton
  • Connection type: Faston
  • Membrane profile: Straight
  • Voice gap height: 6 mm

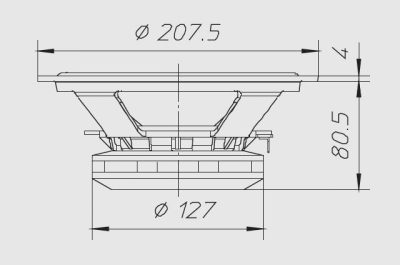

DimensionsCM206ND

  • Outer diameter: 207.5 mm
  • Depth under flange: 80.5 mm
  • Flange thickness: 4 mm
  • Panel hole: 184 mm
  • Number of fixing holes: 4
  • Diameter of fixing holes: 5 mm
  • Diameter pos fixing holes: 194
  • Weight with single packaging: 2.80 Kg

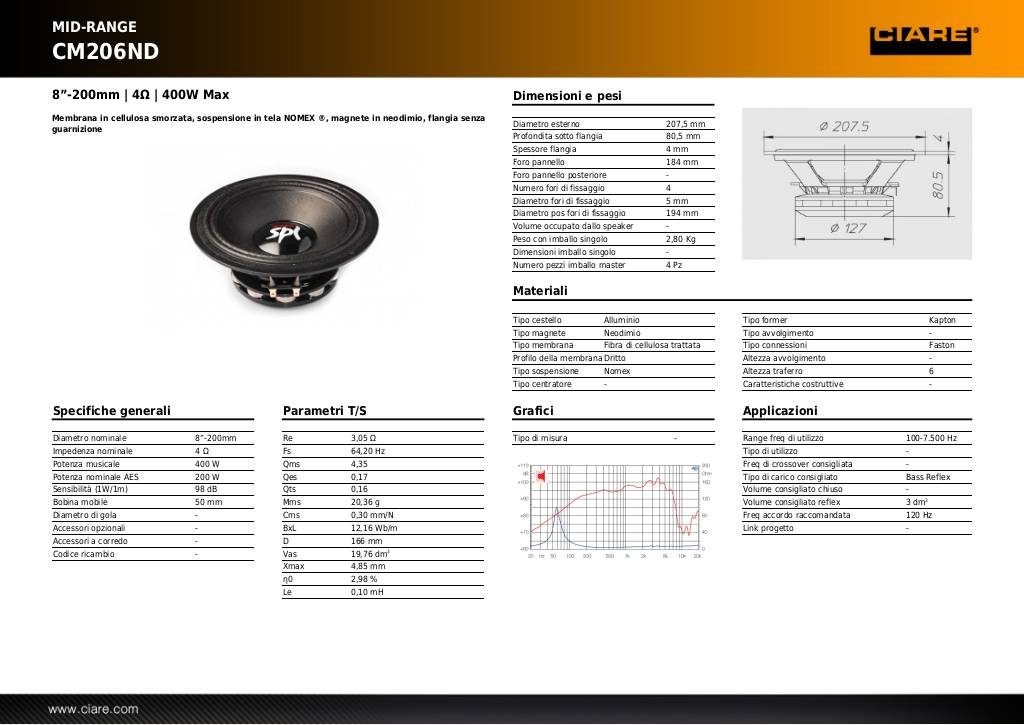

Scheda tecnica

20140228161201-cm206nd.pdf
