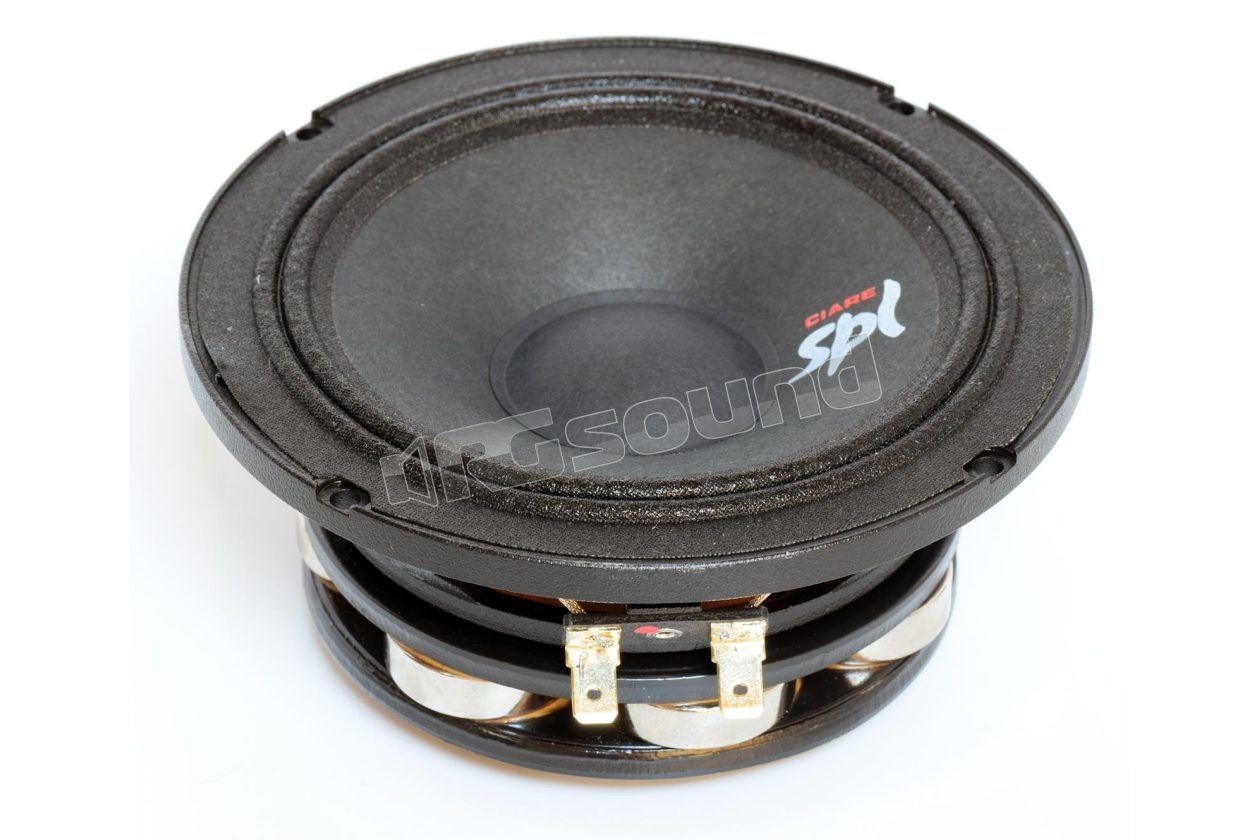

CM135ND extended range SPL

Ciare

Discontinued

Your price:
€ 136,10
Price per single item (VAT included)
Type
Midrange
Speaker Size
130 mm
MAX Power
160 Watt
RMS Power
80 Watt
Frequency Response

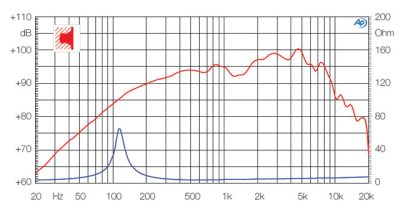

150 - 7.000 Hertz
Sensitivity
94 dB
Impedance
4 Ohm
Weight
1,25 Kg
Installation Depth
53,5 mm
Midrange Cone Material
Acciaio

Ciare CM135ND extended range, 130mm size, with waterproofed cellulose membrane and cloth suspension. Appealing total black look.Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to completely independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CM135ND Features

  • Max power: 160W
  • Nominal power: 80W
  • Diameter: 5"-130mm
  • Nominal impedance: 4Ω
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 94 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 1.2 dm3
  • Recommended tuning frequency: 162 Hz

CM135ND Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Membrane type: Cellulose fiber
  • Suspension type: Nomex
  • Former type: Kapton
  • Electrical connection type: Faston
  • Membrane profile: Straight
  • Air gap height: 6 mm

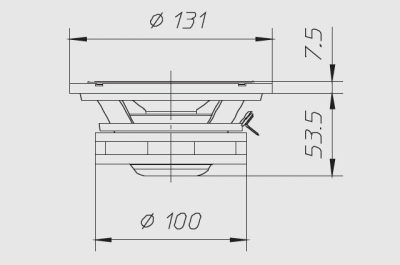

CM135ND Dimensions

  • Outer diameter: 131 mm
  • Depth under flange: 53.5 mm
  • Flange thickness: 7.5 mm
  • Panel hole: 119 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 4 mm
  • Mounting hole position diameter: 126
  • Weight with single packaging: 1.25 Kg

Scheda tecnica

20131028175936-cm133.pdf
