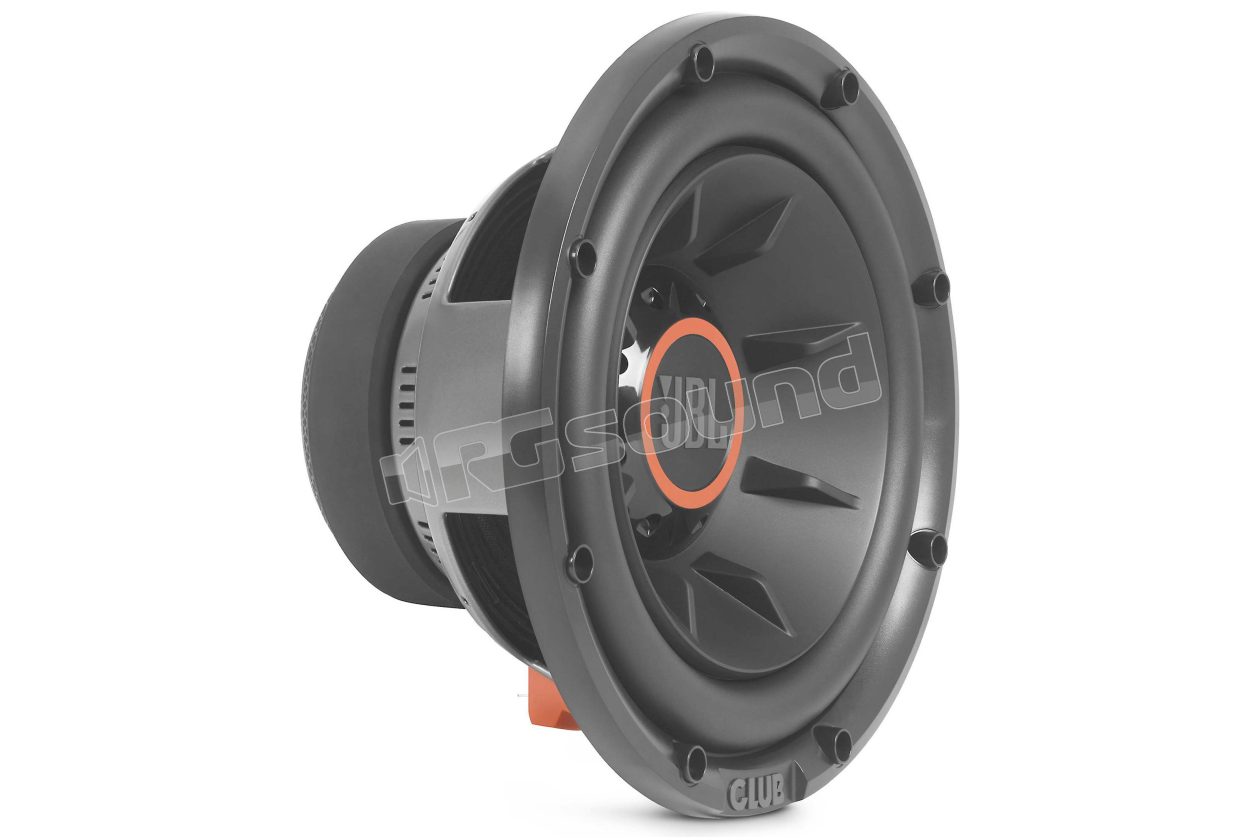

CLUB 1024 25cm (10") subwoofer with switchable 2 or 4 Ohm impedance

JBL

Discontinued

Your price:
€ 124,60
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1000 Watt
RMS Power
250 Watt
Frequency Response
30-175 Hertz
Sensitivity
92 dB
Impedance
2 e 4 Ohm
Installation Depth
142 mm
Woofer Material
Polipropilene

JBL CLUB 1024 25cm (10") subwoofer with selectable impedance at 2 or 4 Ohm

JBL Club 1024 features a 2" voice coil for exceptional power handling, while airflow from cone movement cools the voice coil for greater reliability. The subwoofer's intelligent selective impedance switch (SSI™) allows you to change impedance from 2 ohm to 4 Ohm, so you can optimize the sub for your amplifier. This feature simplifies reconfiguring your system when you add another subwoofer from the Club series or upgrade your amplifier.

In addition to the SSI variable impedance system, Club subwoofers feature an exclusive cone design with superior rigidity (for long-lasting performance) and long excursion for deep, accurate bass.

JBL Club 1024 Technical Features

Diameter 25cm (10 inches)
Impedance 2 Ohm
Cone material Polypropylene
Surround material Rubber
Ideal sealed box volume (cubic feet) 0.5
Ideal ported box volume (cubic feet) 1.5
Port diameter (inches) 3
Port length (inches) 11.3
Possible free air installation
Dual voice coil
Sensitivity 92 dB at 2.83 volt
Frequency response 30 - 175 Hz
Recommended nominal power RMS 250
Maximum power (Watt) 1000
Mounting depth 142 mm
Cutout diameter or length 228 mm
Vas (liters) 32.3
Fs (Hz) 29.9
Qts 0.43
Xmax (millimeters) 9.25

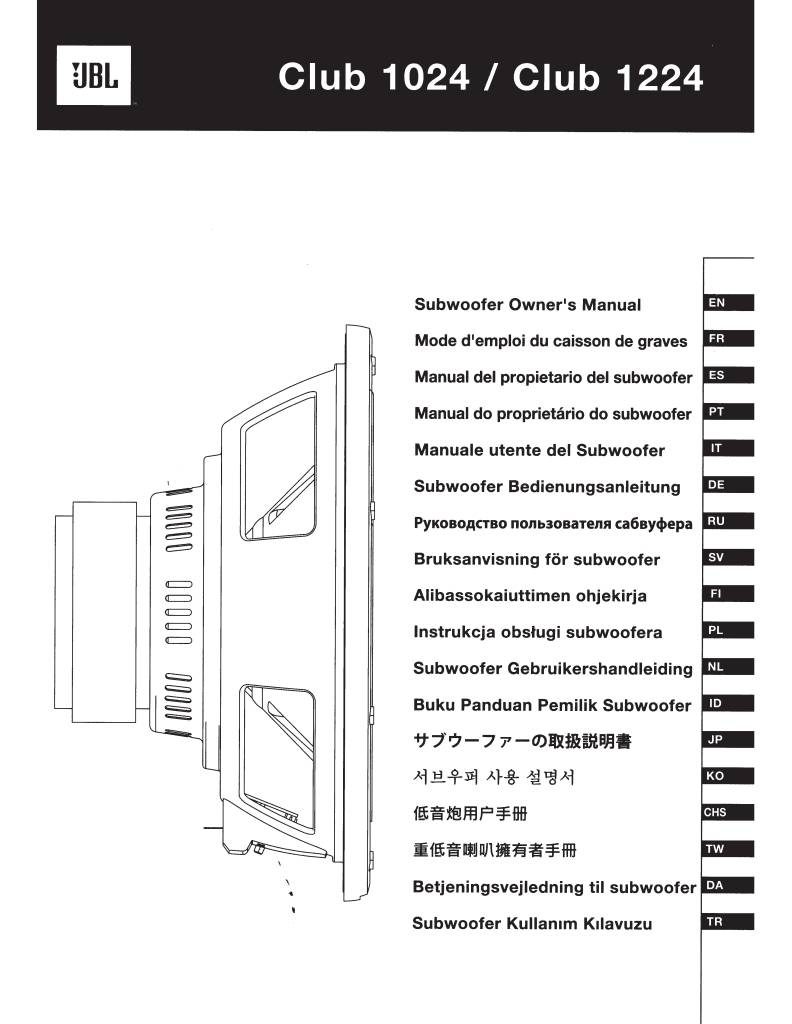

Manuale utente

n-20200504124028-109cl1024.pdf

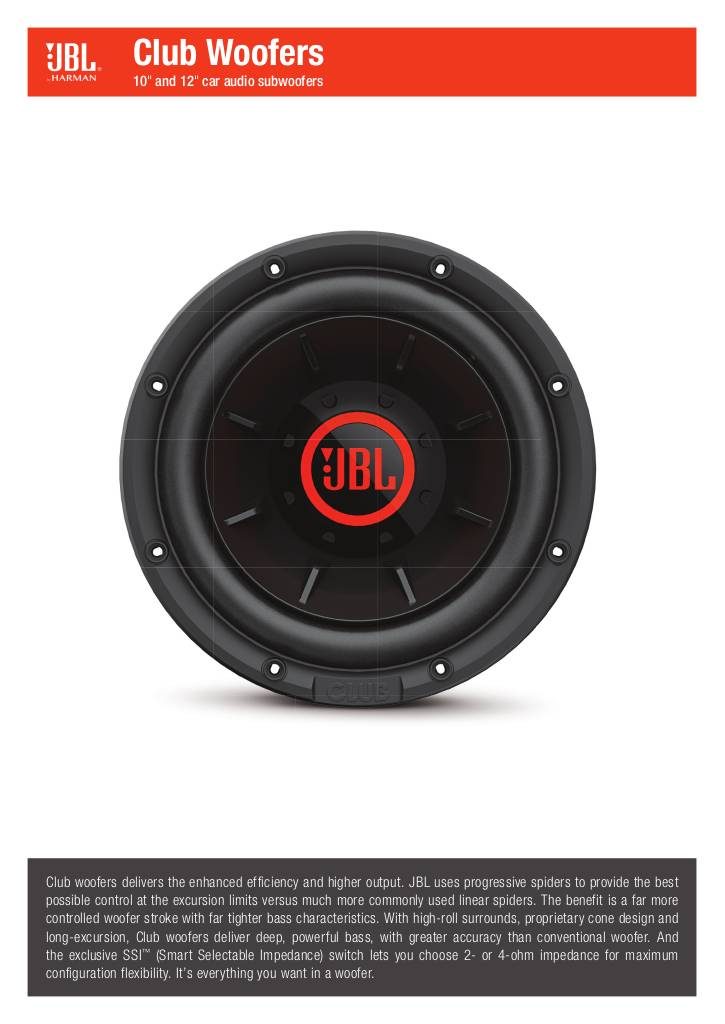

Scheda tecnica

n-20200504124613-jbl-club-subwoofers-spec-sheet-english.pdf
Discontinued
