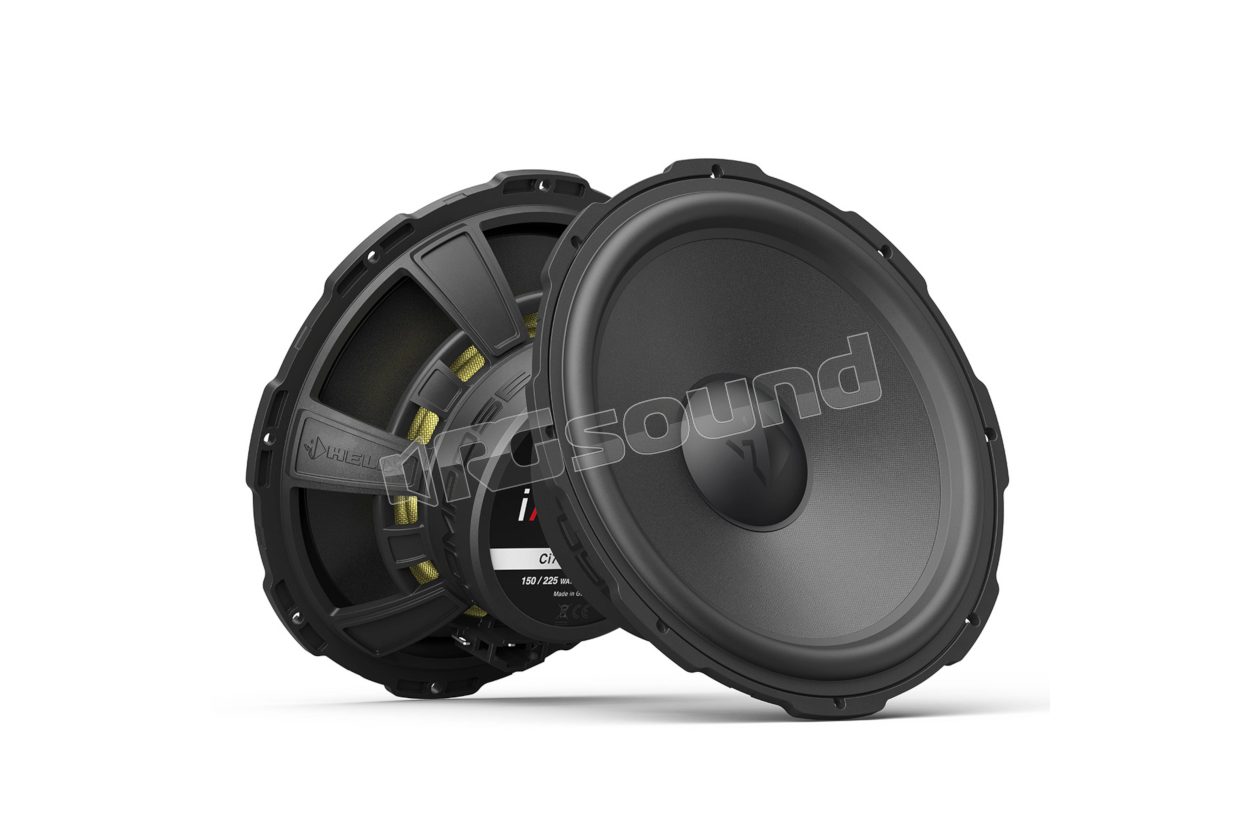

CI7 W200FM-S3 200 mm woofer set with grilles - 3 Ohm

Helix
Your price:
€ 507,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
225 Watt
RMS Power
150 Watt
Frequency Response
35 - 2.500 Hertz
Sensitivity
92 dB
Impedance
3 Ohm
Installation Depth
65,8 mm
Woofer Material
Cono in carta

HELIX CI7 W200FM-S3 Woofer with 200 mm grille set - 3 Ohm

The HELIX COMPOSE i7 series is completely manufactured in Germany and optimized for uncompromising musical enjoyment. All speaker impedances are perfectly matched to combination with HELIX amplifiers, always guaranteeing maximum performance. HELIX COMPOSE stands for intelligent engineering and consequently implements high-efficiency 3 Ohm technology, which harmonizes perfectly with all HELIX amplifiers and at the same time allows a clearly perceptible advantage in terms of efficiency and maximum sound pressure level.

All baskets of HELIX COMPOSE i7 and i3 speakers are made from a high-tech composite polymer, further reinforced with glass spheres. The result: maximum stability, minimum self-resonance, elimination of magnetic system flow modulation and maximum resistance to thermal influences. Last but not least, this allows for much more compact basket dimensions and thus simplifies installations in space-constrained conditions. FlexMount is a mounting system based on specially developed adapter rings, which allows installation of FlexMount COMPOSE speakers in a virtually infinite number of vehicles.

The ProConnect terminal is a professional automotive connector that allows the safe use of conventional speaker cables, offering maximum flexibility in audio system upgrade design. Furthermore, the connection is interlocked, offers protection against polarity reversal and is electrically and mechanically very resistant. WireKit cables allow you to connect HELIX COMPOSE components to the original wiring or, optionally, to the crossover, in the most convenient way. Manufactured according to the high standards of the automotive industry, these stoppable adapter cables meet all requirements of the demanding environmental conditions that installers face every day in vehicles.

CI7 W200FM-S3 Features

  • High-end 8" / 200 mm woofer that combines exceptional sound performance with versatile physical integration options
  • High-efficiency 3 Ohm technology for maximum amplifier output power
  • Ultra-high damping (UHD) paper cone for exceptional impulse response and unmatched frequency response
  • High-tech composite polymer basket reinforced with glass beads for enormous rigidity and minimal ringing
  • Specially shaped rubber surround for high linear cone excursion
  • Polyurethane dust cap for optimized frequency response in the upper midrange area
  • Large 1.46" / 37 mm voice coil ensures minimal thermal compression and high power handling
  • Compact dimensions with maximum performance: despite the reduced external diameter, this woofer has the same cone area as a typical 200 mm frame.
  • Automotive-type ProConnect connection terminal allows the use of conventional speaker cables or quick, safe and fail-proof connection via optional WireKit
  • Powerful magnet system for maximum efficiency and extremely low distortion
  • Universal mounting ring with grille included
  • Designed for FlexMount200 adapters, available as optional, which allow acoustically optimized and professional integration in the vehicle's original mounting location.
  • Designed for vehicle-specific WireKit, available as optional, which allow non-destructive integration.
  • Manufactured in Germany

Manuale di istruzione

n-20230524121625-document.pdf

2 x Ci7 W200FM-S3 2 x Universal mounting ring with grille 2 x Connection cable 2 x Mounting material

HELIX CI7 W200FM-S3 Technical Specifications

  • Power handling RMS / max. P 150 / 225 Watt
  • Impedance Z 3 Ω
  • DC resistance Re 3.0 Ω
  • Frequency response 35 Hz - 2,500 Hz
  • Resonance frequency Fs 52 Hz
  • Mechanical Q factor Qms 6.04
  • Electrical Q factor Qes 0.78
  • Total Q factor Qts 0.69
  • Compliance Cms 370 µm/N
  • Equivalent air volume Vas 20.8 L
  • Force factor B*I 5.6 Tm
  • Sensitivity SPL
    • 92 dB @ 2.83 V / 1m
    • 88 dB @ 1W / 1m
  • Cone area Sd 201 cm²
  • Moving mass Mms 25.6 g
  • Cone material Ultra-high damping (UHD) paper cone
  • Mechanical resistance Rms 1.40 kg/s
  • Voice coil diameter ø 37 mm
  • Voice coil winding height 13.8 mm
  • Maximum linear excursion Xmax +/- 3.9 mm
  • External diameter ø 195 mm / 7.68"
  • External diameter with universal mounting ring ø 208.9 mm / 8.22"
  • Installation diameter ø 173.5 mm / 6.83"
  • Installation depth 65.8 m
