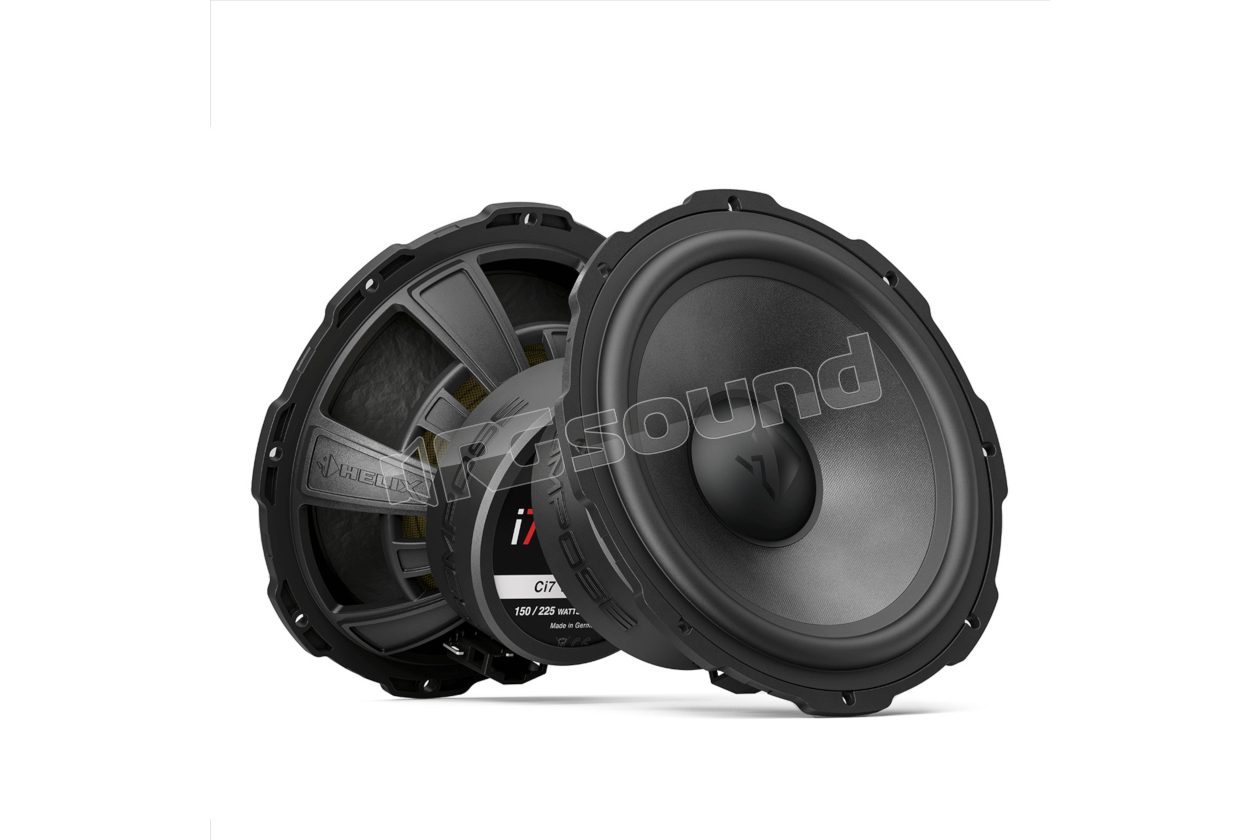

CI7 W165FM-S3 165mm woofer set - 3 Ohm

Helix
Your price:
€ 375,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
225 Watt
RMS Power
150 Watt
Frequency Response
50 - 3.500 Hertz
Sensitivity
92 dB
Impedance
3 Ohm
Installation Depth
65,8 mm
Woofer Material
cono in carta

HELIX CI7 W165FM-S3 Pair of 165mm woofers - 3 Ohm


The HELIX COMPOSE i7 series guarantees an exceptional sound experience in the car. The i7 speaker series is completely manufactured in Germany and optimized for uncompromising musical pleasure. All speaker impedances are perfectly matched to combination with HELIX amplifiers, always guaranteeing maximum performance. HELIX COMPOSE stands for intelligent engineering and consequently implements high-efficiency 3 Ohm technology, which harmonizes perfectly with all HELIX amplifiers and at the same time enables a clearly perceptible advantage in terms of efficiency and maximum sound pressure. Thanks to the notable influence of sister brand BRAX and the uncompromising high-end philosophy, only the highest quality components are used in the i7 series, such as the hand-crafted UHD (Ultra High Damping) paper cone. Manufactured with a particularly complex process, this cone guarantees optimal frequency response and the best possible impulse response, for incomparable musical pleasure.

All HELIX COMPOSE i7 and i3 speaker baskets are made of a high-tech composite polymer, further reinforced with glass beads. The result: maximum stability, minimal self-resonance, elimination of magnetic system flow modulation and maximum resistance to thermal influences. Last but not least, this allows for much more compact basket dimensions and thus simplifies installation in tight space conditions. The innovative ProConnect terminal is a professional automotive connector that allows the safe use of conventional speaker cables, offering maximum flexibility in audio system upgrade design. In addition, the connection is interlocked, offers protection against polarity reversal and is electrically and mechanically very robust. WireKits allow HELIX COMPOSE components to be connected to the original wiring or, optionally, to the crossover, in the most convenient way. Manufactured according to high automotive industry standards, these stoppable adapter cables meet all requirements of the challenging environmental conditions that installers face every day in vehicles.
CI7 W165FM-S3 Features
  • High-end 6.5" / 165 mm midwoofer that combines exceptional sound performance with versatile physical integration options
  • High-efficiency 3 Ohm technology for maximum amplifier output power
  • Hand-crafted ultra-high damping (UHD) paper cone for exceptional impulse response and unmatched frequency response
  • High-tech composite polymer basket reinforced with glass beads for enormous rigidity and minimal ringing
  • Specially shaped rubber surround for high linear cone excursion
  • Polyurethane dustcap for optimized frequency response in the upper midrange area
  • Large 1.46" / 37 mm voice coil ensures minimal thermal compression and high power handling
  • Automotive-type ProConnect connection terminal allows the use of conventional speaker cables or a quick, safe and fail-proof connection via optionally available WireKits
  • Powerful magnet system for maximum efficiency and extremely reduced distortion
  • Designed for FlexMount165 adapters, available as optional, which allow acoustically optimized and professional integration into the vehicle's original mounting position.
  • Designed for vehicle-specific WireKits, available as optional, which allow non-destructive integration.
  • Made in Germany

Manuale di istruzione

n-20230524121754-document.pdf

2 x Ci7 W165FM-S3 2 x connection cable 2 x mounting material

HELIX CI7 W165FM-S3 Technical Specifications

  • Power handling RMS / max. P
  • 150 / 225 Watt
  • Impedance Z 3 Ω
  • DC resistance Re 2.9 Ω
  • Frequency response 50 Hz - 3,500 Hz
  • Resonance frequency Fs 60 Hz
  • Mechanical Q factor Qms 3.00
  • Electrical Q factor Qes 0.68
  • Total Q factor Qts 0.55
  • Compliance Cms 480 µm/N
  • Equivalent air volume Vas 11.6 L
  • Force factor B*I 4.8 Tm
  • SPL sensitivity
    • 92 dB @ 2.83 V / 1m
    • 88 dB @ 1W / 1m
  • Cone area Sd 131 cm²
  • Moving mass Mms 14.8 g
  • Cone material Hand-crafted ultra-high damping (UHD) paper cone
  • Mechanical resistance Rms 1.83 kg/s
  • Voice coil diameter ø 37 mm
  • Voice coil winding height 13.4 mm
  • Maximum linear excursion Xmax +/- 3.7 mm
  • Outer diameter ø 165 mm / 6.5
  • Installation diameter ø 142 mm
  • Installation depth 65.8 mm
€ 375,00 Price incl. VAT
