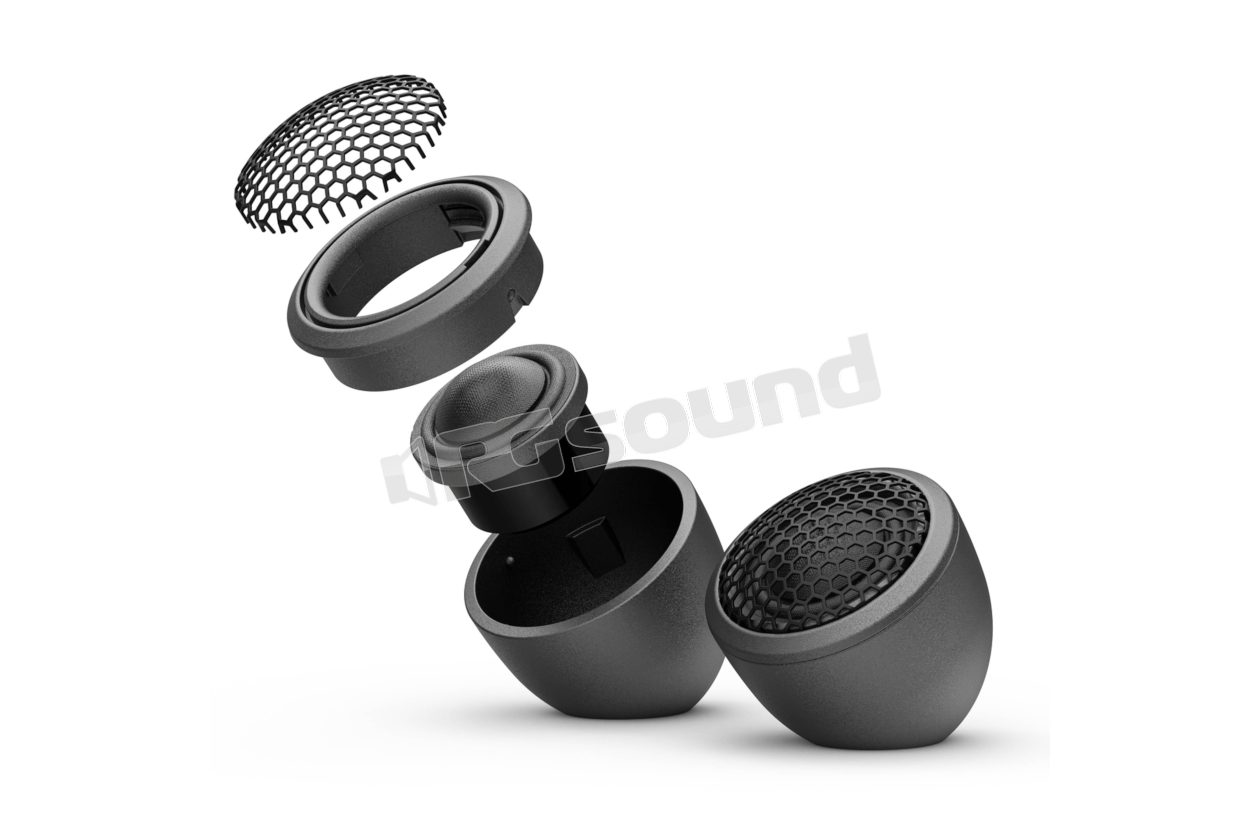

CI7 T20FM-SC Pair of high-end tweeters

Helix
Your price:
€ 375,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Frequency Response
1.500-30.000 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Outer Diameter
32 mm
Tweeter Material
cupola in seta

HELIX CI7 T20FM-SC Pair of high-end tweeters

The HELIX COMPOSE i7 series represents high-end without compromise for an exceptional sound experience in the car. With a clear influence from the sister brand BRAX, the i7 speaker series is entirely manufactured in Germany and optimized for uncompromised musical enjoyment. All speaker impedances are perfectly matched to combination with our HELIX and MATCH amplifiers, always guaranteeing maximum performance. Furthermore, HELIX COMPOSE introduces four new mechanical technologies that offer unbeatable practical advantages.

The i7 tweeter features a fine mesh silk dome with viscoelastic Acronal coating on both sides, which guarantees a brilliant and uniform response in the highs. Furthermore, the integration of pure lamb's wool and the damped coupling volume allow a very low resonance frequency and deep acoustic coupling.

FlexMount is a mounting system based on specially developed adapter rings, which allows the installation of FlexMount COMPOSE speakers in a virtually infinite number of vehicles. In this way, the universal tweeter effortlessly becomes a vehicle-specific tweeter, which can be easily installed in the vehicle's original mounting location in an acoustically optimized way with the FlexMount20 adapter ring.
CI7 T20FM-SC Features
  • High-end 0.75" / 20 mm silk dome tweeter with super-wide dispersion and coupling volume for the lowest possible resonance frequency
  • The exceptionally light and fine mesh silk dome guarantees a brilliant and homogeneous response in the highs
  • High-efficiency neodymium magnet for high linearity of magnetic flux
  • The integrated and damped coupling volume allows a low crossover frequency due to its low resonance frequency
  • Robust aluminum housing machined from solid
  • Compact design and various mounting options to meet numerous installation requirements
  • Mounting brackets for flush and angled mounting are included in the delivery
  • Designed for FlexMount20 adapters, available as an option, which allow acoustically optimized and professional integration in the vehicle's original mounting location.
  • Made in Germany

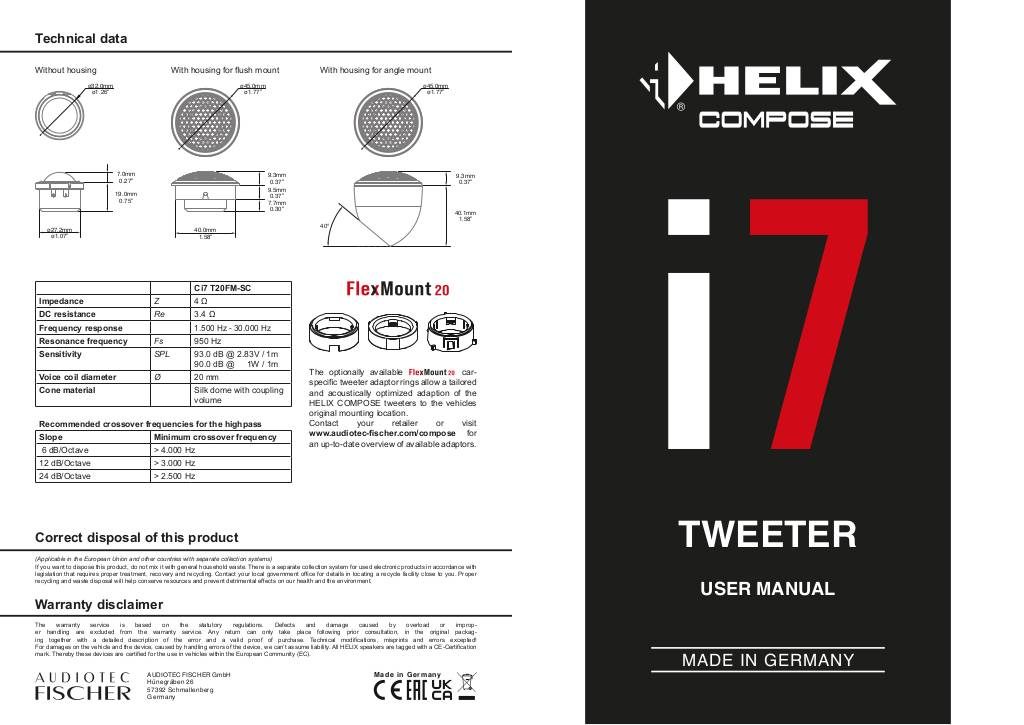

Manuale di istruzione

n-20230524123029-document.pdf

2 x Ci7 T20FM-SC 2 x Flush-mount tweeter 2 x tweeter capsule 2 x extension cable 2 x mounting material

HELIX CI7 T20FM-SC Technical Specifications

  • Impedance Z 4 Ω
  • DC resistance Re 3.4 Ω
  • Frequency response 1,500 Hz - 30,000 Hz
  • Resonance frequency Fs 950 Hz
  • Sensitivity SPL 93.0 dB @ 2.83V / 1m
  • 90.0 dB at 1W / 1m
  • Voice coil diameter Ø 20 mm
  • Cone material Silk dome with coupling volume
  • Outer diameter 32 mm / 1.26
  • Installation diameter 27.2 mm
  • Installation depth 19 mm

Recommended crossover frequencies for high-pass

  • 6 dB/Octave > 4,000 Hz
  • 12 dB/Octave > 3,000 Hz
  • 24 dB/Octave > 2,500 Hz
€ 375,00 Price incl. VAT
