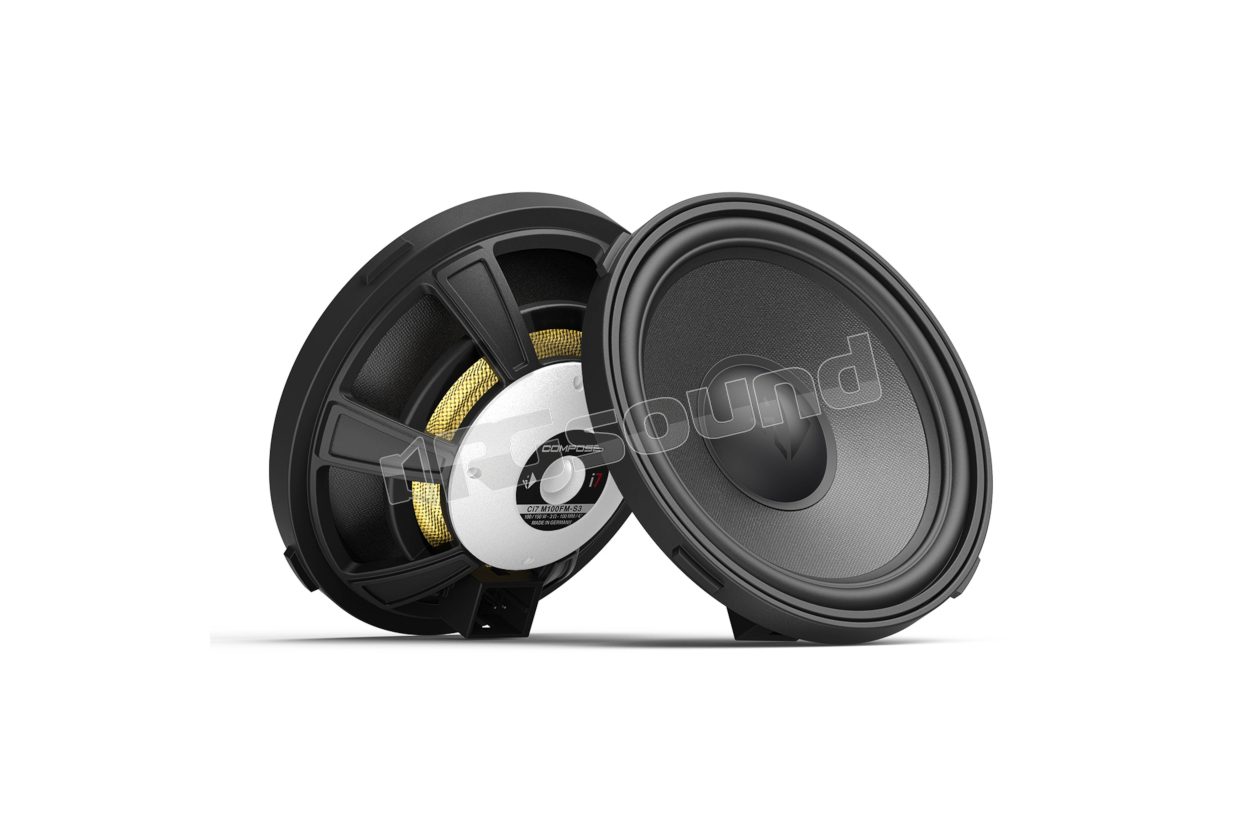

CI7 M100FM-S3 100mm midrange set 3 Ohm

Helix
Your price:
€ 375,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
100 mm
MAX Power
150 Watt
RMS Power
100 Watt
Frequency Response
110 - 7.000 Hertz
Sensitivity
91 dB
Impedance
3 Ohm
Installation Depth
26,9 mm
Midrange Cone Material
Cono in carta

HELIX CI7 M100FM-S3 Pair of 100mm midrange 3 Ohm

The HELIX COMPOSE i7 series represents the high-end range without compromise for an exceptional sound experience in the car. With a clear influence from sister brand BRAX, the i7 speaker series is completely manufactured in Germany and optimized for uncompromising musical pleasure. All speaker impedances are perfectly matched to combination with our HELIX and MATCH amplifiers, always guaranteeing maximum performance. Furthermore, HELIX COMPOSE introduces four new mechanical technologies that offer unbeatable practical advantages. HELIX COMPOSE is synonymous with intelligent engineering and consequently implements a 3 Ohm high-efficiency technology that harmonizes perfectly with all HELIX and MATCH amplifiers while at the same time enabling a clearly perceptible advantage in terms of efficiency and maximum sound pressure.

Thanks to the remarkable influence of sister brand BRAX and the uncompromising high-end philosophy, only the highest quality components are used in the i7 series, such as the UHD (Ultra High Damping) paper cone, handcrafted. Produced with a particularly complex process, this cone guarantees optimal frequency response and the best possible impulse response for incomparable musical pleasure.

All HELIX COMPOSE i7 and i3 speaker baskets are made of a high-tech composite polymer, further reinforced with glass beads. The result: maximum stability, minimal self-resonance, elimination of magnetic system flux modulation and maximum resistance to thermal influences. Finally, but not least, this allows much more compact basket dimensions and therefore simplified installations in tight space conditions.

FlexMount is a mounting system based on adapter rings specially developed that allows the installation of FlexMount COMPOSE speakers in a virtually unlimited number of vehicles. In this way, the universal speaker becomes effortlessly a vehicle-specific speaker, which can be easily installed in the vehicle's original mounting location in an acoustically optimized manner with the FlexMount100 twist-lock adapter ring.

With the FlexConnect terminal, HELIX COMPOSE speakers can be easily connected directly to the vehicle's original wiring, maintaining the automotive standard of plug connection and ensuring protection against polarity reversal. Similarly to our FlexMount system, this technology is based on adapters specially developed and specific to the vehicle.
CI7 M100FM-S3 Features
  • High-end 4" / 100 mm midrange speaker that combines exceptional sound performance with versatile physical integration options
  • High-efficiency and 3 Ohm technology for maximum amplifier output power
  • Handcrafted Ultra High Damping (UHD) paper cone for exceptional impulse response and unparalleled frequency response
  • High-tech composite polymer basket reinforced with glass beads for enormous rigidity and minimized ringing
  • Specially shaped rubber surround for high linear cone excursion
  • Polyurethane dust cap for optimized frequency response in the upper midrange area
  • 1" / 25 mm voice coil ensures minimal thermal compression and high power handling
  • Automotive-type FlexConnect terminal for quick, secure and fail-safe connection
  • Powerful push-pull neodymium magnet system for maximum efficiency and extremely low distortion
  • Universal FlexMount100 mounting ring (with standard 4-point mounting) included
  • Designed for FlexMount100 adapters, available as optional, which allow acoustically optimized and professional integration in the vehicle's original mounting location.
  • Manufactured in Germany

2 x Ci7 M100FM-S3 2 x Universal FlexMount100 (with standard 4-point mounting) 2 x FlexConnect A insert 2 x Universal connection cable 2 x Crossover connection cable 2 x Mounting material

HELIX CI7 M100FM-S3 Technical Specifications

  • RMS / max power handling P 100 / 150 Watt
  • Impedance Z 3 Ω
  • DC resistance Re 3.0 Ω
  • Frequency response 110 Hz - 7,000 Hz
  • Resonance frequency Fs 85 Hz
  • Mechanical Q factor Qms 4.58
  • Electrical Q factor Qes 0.52
  • Total Q factor Qts 0.47
  • Compliance Cms 590 µm/N
  • Equivalent air volume Vas 2.5 L
  • Force factor B*I 4.3 Tm
  • SPL Sensitivity
    • 91 dB @ 2.83 V / 1m
    • 87 dB @ 1W / 1m
  • Cone area Sd 55 cm²
  • Moving mass Mms 5.9 g
  • Cone material Ultra High Damping (UHD) handcrafted paper cone
  • Mechanical resistance Rms 0.69 kg/s
  • Voice coil diameter ø 25 mm
  • Voice coil winding height 5.5 mm
  • Maximum linear excursion Xmax +/- 1.3 mm
  • Outer diameter ø 98 mm / 3.86"
  • Outer diameter with universal mounting ring ø 104.5 mm / 4.11"
  • Installation diameter ø 89 mm
  • Installation depth 26.9 mm / 1.06"
€ 375,00 Price incl. VAT
