CI7 FX-UNI.2 2-way crossover pair, COMPOSE i7 series

Helix
Your price:
€ 140,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to

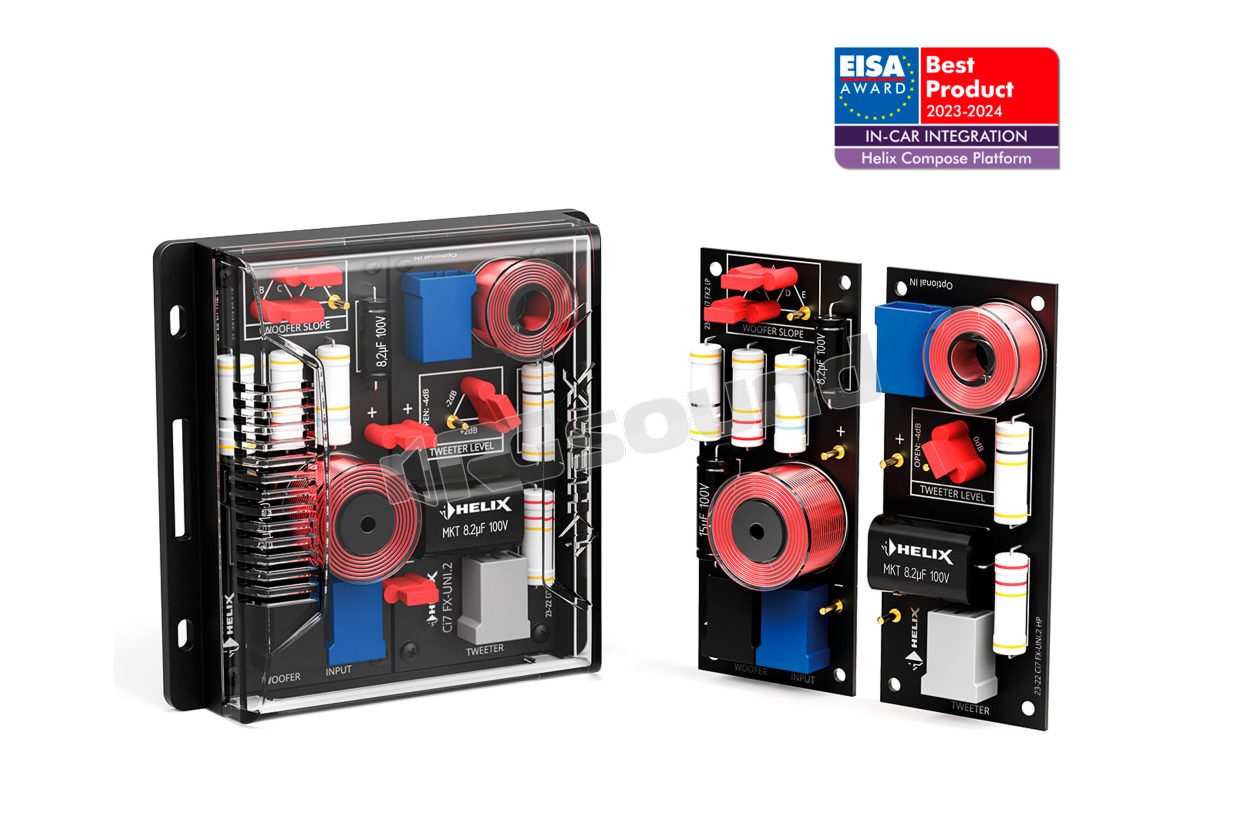

Helix CI7 FX-UNI.2 Universal 2-way high-end crossover for COMPOSE i7 speakers

The Ci7 FX-UNI.2 crossover is designed for ideal use with HELIX Compose i7 components and thus for professional integration in the vehicle. It offers 4-stage tweeter level adjustment for optimal adaptation to the installation position, as well as numerous low-pass filter adjustment options with 12 dB slope to perfectly adapt to the midrange, midbass or woofer COMPOSE connected. Furthermore, thanks to highest quality components and complex crossover tuning, no costs and efforts were spared to maintain the best possible frequency band distribution, a harmonious sound image and maximum quality.

Thanks to the "Flex-Crossover" design, the Ci7 FX-UNI.2 offers flexible integration options and is suitable for installation in vehicles with separate tweeter and woofer mounting positions. Furthermore, it is compatible with our COMPOSE Connect and WireKit technologies for secure and error-proof connection according to automotive standards.

Compatibility

Tweeter:

  • Ci7 T20FM-SC

Midrange / Midbass / Woofer:

  • Ci7 M100FM-S3
  • Ci7 W130-S3
  • Ci7 W165FM-S3
  • Ci7 W200FM-S3

2 x Ci7 FX-UNI.2 2 x COMPOSE connection kit 4 x PCB sleeves 1 x mounting material

Helix CI7 FX-UNI.2 Technical specifications

  • Tweeter slope: 12 dB high-pass
  • Woofer: 12 dB low-pass
  • Tweeter level adjustment range: -4 dB to +2 dB
  • Features Designed for Ci7 T20FM-SC,
  • 4-stage tweeter level adjustment,
  • 4-stage woofer low-pass filter adjustment for all COMPOSE midrange, midbass and woofer speakers
€ 140,00 Price incl. VAT
