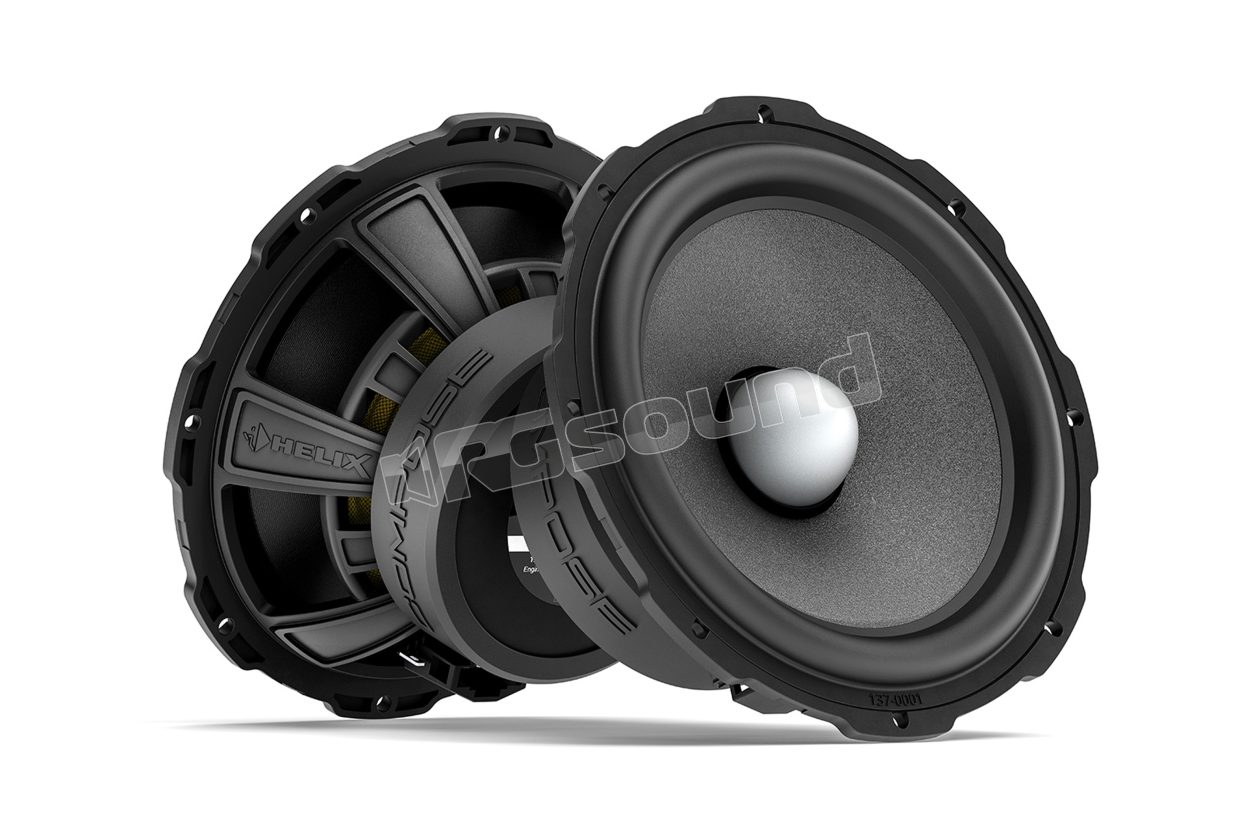

CI5 W165FM-S3 16.5cm midwoofer with FlexMount technology

Helix
Your price:
€ 215,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
175 Watt
RMS Power
125 Watt
Frequency Response
50 - 5000 Hertz
Sensitivity
92 dB
Impedance
3 Ohm
Installation Depth
66,8 mm
Woofer Material
Cellulosa trattata

Helix CI5 W165FM-S3 (CI21604) advanced 165 mm / 6.5 inch midbass with 3 Ω impedance, FlexMount165 technology and exclusive paper cone coated with silicone with phase plug

The HELIX COMPOSE i5 series represents the bridge between the i7 series and the i3 series, designed for the most demanding music enthusiasts who have a strong ambition towards a true hi-fi experience. The result of a combination of phenomenal sound and unparalleled practicality: developed with the goal of creating speakers with unique characteristics, but also capable of concretely solving problems. All speaker impedances are perfectly matched for use with our HELIX and MATCH amplifiers, guaranteeing maximum performance at all times. Furthermore, we have implemented our exclusive mechanical technologies of the COMPOSE series, which offer unbeatable practical advantages.?

The Ci5 W165FM-S3 midbass is a true jack-of-all-trades within the COMPOSE platform. Thanks to its carefully engineered acoustic design, it adapts effortlessly to both classic two-way configurations and more complex three-way configurations. A key element of this versatility is the precisely engineered phase plug, which not only reduces mechanical compression and promotes more uniform sound dispersion, but also significantly improves impulse response in the mid-high range. Color-matched to the dome of the Ci5 T25FM-CA tweeter, it creates a visually coherent pairing - ideal for systems where sonic excellence and aesthetic harmony go hand in hand. The paper cone, lightweight yet exceptionally rigid, features a high-quality silicone coating that provides excellent damping and great structural stability, effectively suppressing unwanted resonances. The result is a speaker that excels in every area: precision, dynamics and a clear focus on musical expressiveness.

Features of the Helix CI5 W165FM-S3 speakers

  • Advanced 6.5" / 165 mm midbass with exceptional sonic performance and versatile integration options
  • High efficiency and 3 Ohm technology to maximize amplifier output power
  • Paper cone coated in silicone for excellent impulse response and unparalleled frequency response
  • Integrated phase plug for improved mid-high reproduction, reduced compression effects and increased thermal power manageable by the voice coil
  • Designed for maximum flexibility: offers impressive depth and extraordinary dynamics in both 2-way and 3-way configurations
  • High-tech polymeric composite basket reinforced with glass microspheres for enormous rigidity and minimal residual oscillation
  • Special shaped rubber surround for high linear cone excursion
  • The large 1.46" / 37 mm voice coil ensures minimal thermal compression and high manageable power
  • The automotive grade ProConnect terminal allows the use of conventional speaker cables or quick, safe and fail-proof connection via WireKits available as optional
  • Powerful magnetic system for maximum efficiency and extremely low distortion
  • Designed for vehicle-specific FlexMount165 adapters, available as optional, which allow acoustically optimized and professional integration in the vehicle's original mounting location
  • Designed for vehicle-specific WireKits, available as optional, which allow non-destructive integration

Helix CI5 W165FM-S3 technical specifications

  • Nominal power RMS / Max. 125 / 175 Watt
  • Impedance Z 3 Ω
  • Direct current resistance Re 3.1 Ω
  • Frequency response 50 Hz - 5.000 Hz
  • Resonance frequency Fs 50 Hz
  • Mechanical Q factor Qms 2.38
  • Electrical Q factor Qes 0.50
  • Total Q factor Qts 0.41
  • Compliance Cms 742 µm/N
  • Equivalent air volume Vas 17.9 L
  • Force factor B*I 5.2 Tm
  • Sensitivity SPL 92 dB at 2.83 V / 1 m 88 dB at 1 W / 1 m
  • Cone area Sd 131 cm²
  • Moving mass Mms 14.0 g
  • Cone material Paper cone coated with silicone
  • Mechanical resistance Rms 1.83 kg/s
  • Voice coil diameter ø 37 mm
  • Voice coil winding height 13.7 mm
  • Maximum linear excursion Xmax +/- 3.9 mm
  • Outer diameter ø 165 mm / 6.5"
  • Installation diameter ø 142 mm / 5.59"
  • Installation depth 66.8 mm / 2.63"
  • ProConnect terminal, FlexMount165
