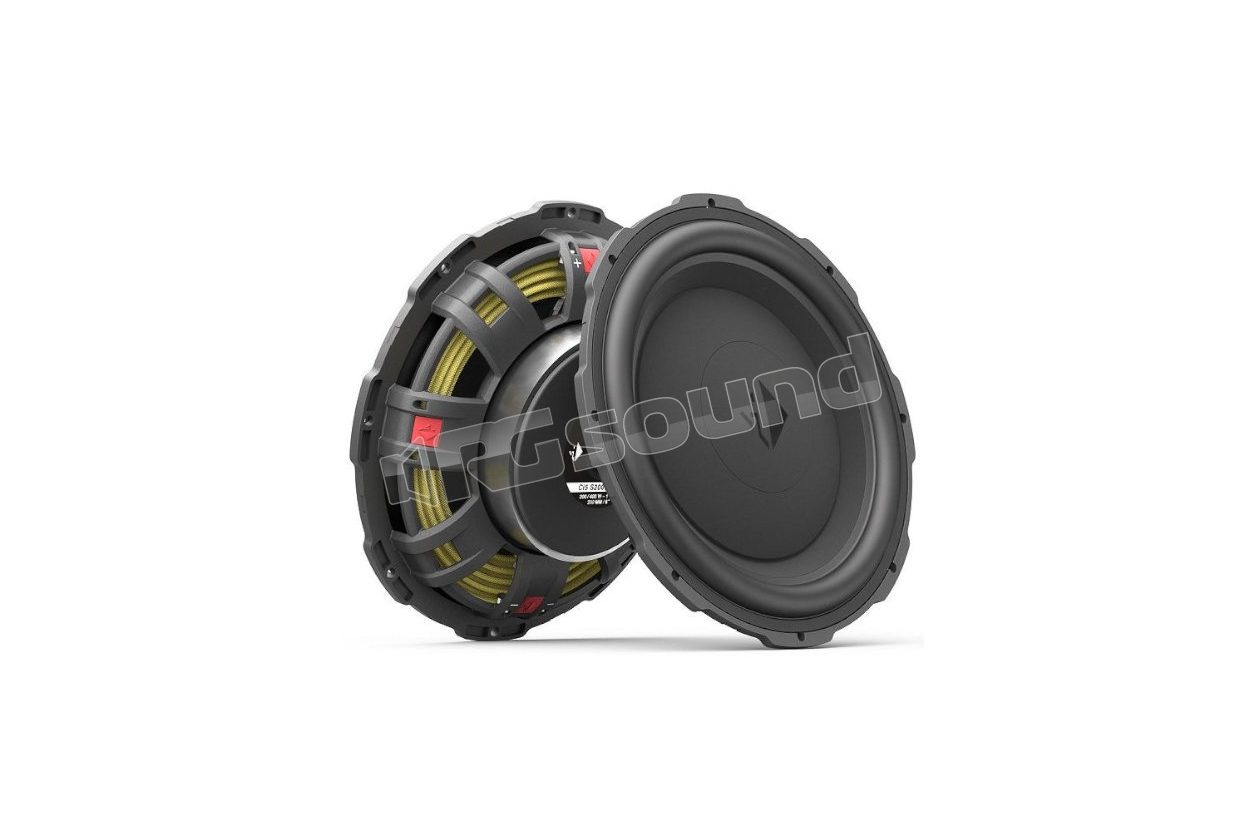

Ci5 S200FM-S2 Pair of 200mm 2 Ohm woofers

Helix
Your price:
€ 281,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
25 - 500 Hertz
Sensitivity
92 dB
Impedance
1x2 Ohm
Installation Depth
47 mm
Woofer Material
Cono Polipropilene iniettato

Helix Ci5 S200FM-S2 Woofer 200mm, impedance 2 Ohm

Born from the increasingly challenging demands of modern automotive technology and HELIX's characteristic pursuit of intelligent solutions, we have made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform which, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal loudspeakers with the benefits of vehicle-specific systems. Innovative materials and cutting-edge technologies combined with intelligent and practical engineering: the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that adapts to any vehicle.

The HELIX COMPOSE i5 series is the link between i7 and i3, created for lovers of sophisticated music with the ambition to experience true hi-fi. An illegitimate child of phenomenal sound and unparalleled practicality: Developed with the vision of unique loudspeakers that are also true problem solvers. All speaker impedances are perfectly matched to the combination with our HELIX and MATCH amplifiers, always guaranteeing maximum performance. Furthermore, we have implemented our exclusive mechanical COMPOSE technologies that offer unbeatable practical advantages.

Ci5 S200FM-S2 Features

  • Exceptional cone excursion: ensures high sound pressure levels and impressive bass reproduction.
  • Hybrid flat woofer concept - a perfect balance between a powerful subwoofer and a mid-woofer driver that covers a frequency range from 25 to 500 Hz
  • Frame with single coil 1 x 2 Ohm for maximum amplifier output power
  • Minimal installation depth - an innovative basket design with an installation depth of only 47 mm for use in tight mounting spaces
  • Compact dimensions with maximum performance - despite the reduced external diameter, this woofer is equipped with the same cone area as a typical 200 mm frame
  • Lightweight polypropylene cone that provides essential rigidity for phenomenal sound performance
  • High-tech composite polymer basket reinforced with glass microspheres for enormous rigidity and minimal ringing
  • Powerful magnet system for high efficiency and optimal impulse response
  • Perfect for the most difficult applications: for example, it can be installed under the seats of various BMW models or as a front subwoofer in Mercedes cars.
  • FlexMount200 technology - Vehicle-specific adapters that enable acoustically optimized and professional integration in the original speaker mounting positions under seats and bulkheads.

ATTENTION: Product available from late August.

Scheda Tecnica

n-20240724143157-helix-compose-i5-s200fm-15-12-2023.pdf

Helix Ci5 S200FM-S2 Technical Specifications

  • Power handling RMS / Max. P 200/400 Watt
  • Impedance Z 1 x 2 Ω
  • DC resistance Re 1.8 Ω
  • Frequency response 25 Hz - 500 Hz
  • Resonance frequency Fs 47 Hz
  • Mechanical Q factor Qms 9.12
  • Electrical Q factor Qes 0.79
  • Total Q factor Qts 0.73
  • Compliance Cms 297 µm/N
  • Equivalent air volume Vas 15.7 L
  • Force factor B*I 5.1 Tm
  • Sensitivity SPL
    • 92 dB @ 2.83 V / 1m
    • 86 dB @ 1W / 1m
  • Cone area Sd 194 cm²
  • Moving mass Mms 38 g
  • Cone material Injected polypropylene
  • Mechanical resistance Rms 1.29 kg/s
  • Voice coil diameter ø 38 mm
  • Voice coil winding height 20.6 mm
  • Maximum linear excursion Xmax +/- 7.8 mm
  • External diameter ø 195 mm / 7.68"
  • Installation diameter ø 173.5 mm / 6.83"
  • Installation depth 47.0 mm
  • FlexMount200 features
