CI5 S200FM-D2 200 mm woofer 2 X 2 Ohm

Helix
Your price:
€ 281,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
25 - 500 Hertz
Sensitivity
90 dB
Impedance
2 + 2 Ohm
Installation Depth
47 mm
Woofer Material
Cono Polipropilene

Helix CI5 S200FM-D2 200 mm Woofer 2 X 2 Ohm

The Ci5 S200FM, a 200 mm hybrid speaker, represents the perfect balance between a mid-woofer and a subwoofer and impresses with its excursion, power handling and exceptionally high output volume. With its linear excursion of +/- 7.8 mm (D2: +/- 7.5 mm), it delivers controlled and clear reproduction of bass frequencies, even at high sound pressure levels and low frequencies. The goal was to develop a speaker that works perfectly in BMW under-seat and Mercedes firewall applications without any compromise, despite the extremely reduced installation depth of 47 mm. Thanks to FlexMount200 technology, the Ci5 S200FM can be conveniently integrated and its design opens up new integration possibilities.

All HELIX COMPOSE i7, i5 and i3 speaker baskets are made of a high-tech composite polymer, further reinforced with glass spheres. The result: maximum stability, minimal self-resonance, elimination of magnetic flux modulation and maximum resistance to thermal influences. Last but not least, this allows for much more compact basket dimensions and therefore simplified installations in tight space conditions.

CI5 S200FM-D2 Features

  • Exceptional cone excursion: ensures high sound pressure levels and impressive bass reproduction.
  • Hybrid flat woofer concept - a perfect balance between a powerful subwoofer and a mid-woofer driver covering a frequency range from 25 to 500 Hz
  • Flexible connection - dual voice coil frame 2 x 2 Ohm that always provides the right solution for any amplifier configuration to achieve maximum performance
  • Minimal installation depth - an innovative basket design with an installation depth of just 47 mm for use in tight mounting spaces
  • Compact dimensions with maximum performance - despite the reduced external diameter, this woofer has the same cone area as a typical 200 mm frame
  • Lightweight polypropylene cone that provides essential rigidity for phenomenal sound performance
  • High-tech composite polymer basket reinforced with glass microspheres for enormous rigidity and minimal ringing
  • Powerful magnet system for high efficiency and optimal impulse response
  • Perfect for the most demanding applications: for example, it can be installed under the seats of various BMW models or as a front subwoofer in Mercedes cars.
  • FlexMount200 technology - vehicle-specific adapters that allow acoustically optimized and professional integration into original speaker mounting positions under seats and at firewalls.

Helix

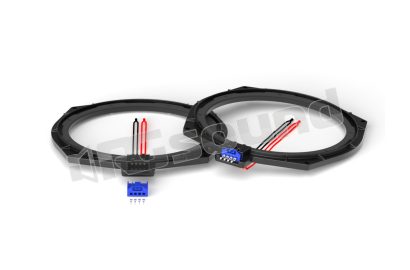

CFMK200 BMW.1S Adapter rings for Compose S200FM speakers Helix
Helix CFMK200 BMW.1S Adapter rings for Compose S200FM speakers
Price incl. VAT
€ 89,00

Scheda Tecnica

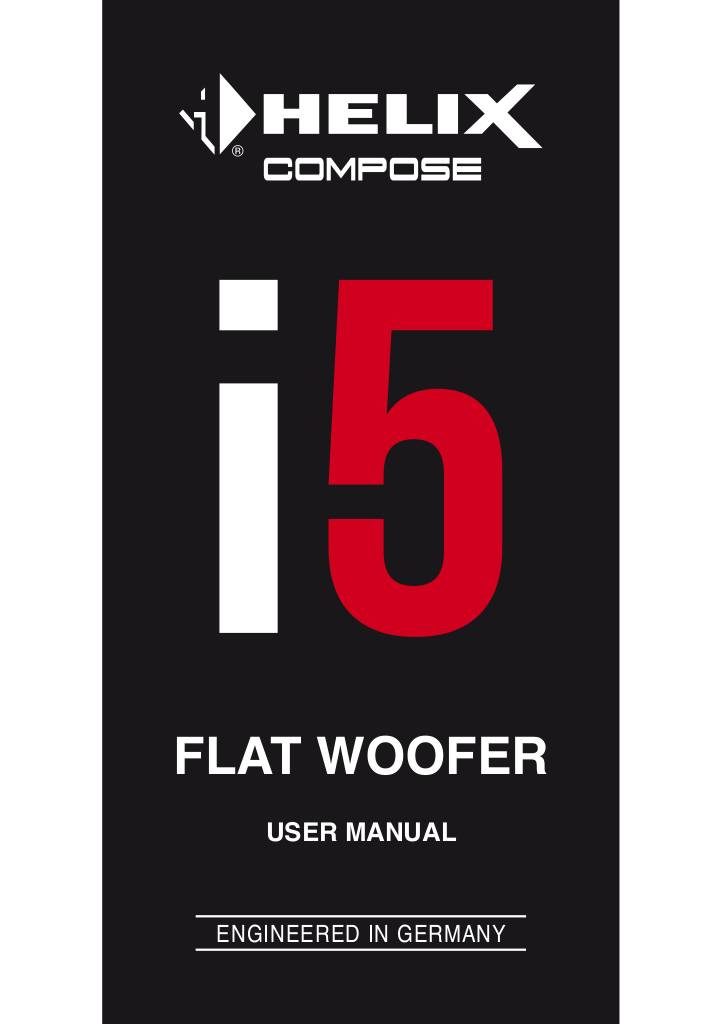

n-20240730094813-helix-compose-i5-s200fm.pdf

2 x Ci5 S200FM-D2 2 x mounting material

Helix CI5 S200FM-D2 Technical Specifications

  • Power handling RMS / Max. P 200 / 400 Watt
  • Impedance Z 2 x 2 Ω
  • DC Resistance Re 3.6 Ω
  • Frequency Response 25 Hz - 500 Hz
  • Resonance Frequency Fs 55 Hz
  • Mechanical Q Factor Qms 8.31
  • Electrical Q Factor Qes 0.88
  • Total Q Factor Qts 0.80
  • Compliance Cms 256 µm/N
  • Equivalent Air Volume Vas 13.5 L
  • Force Factor B*I 6.7 Tm
  • SPL Sensitivity
    • 90 dB @ 2.83 V / 1m
    • 87 dB @ 1W / 1m
  • Cone Area Sd 194 cm²
  • Moving Mass Mms 32 g
  • Cone Material Injected Polypropylene
  • Mechanical Resistance Rms 1.39 kg/s
  • Voice Coil Diameter ø 38 mm
  • Voice Coil Height 20 mm
  • Maximum Linear Excursion Xmax +/- 7.5 mm
  • External Diameter ø 195 mm / 7.68"
  • Installation Diameter ø 173.5 mm / 6.83"
  • Installation Depth 47.0 mm
  • FlexMount200 Characteristics
