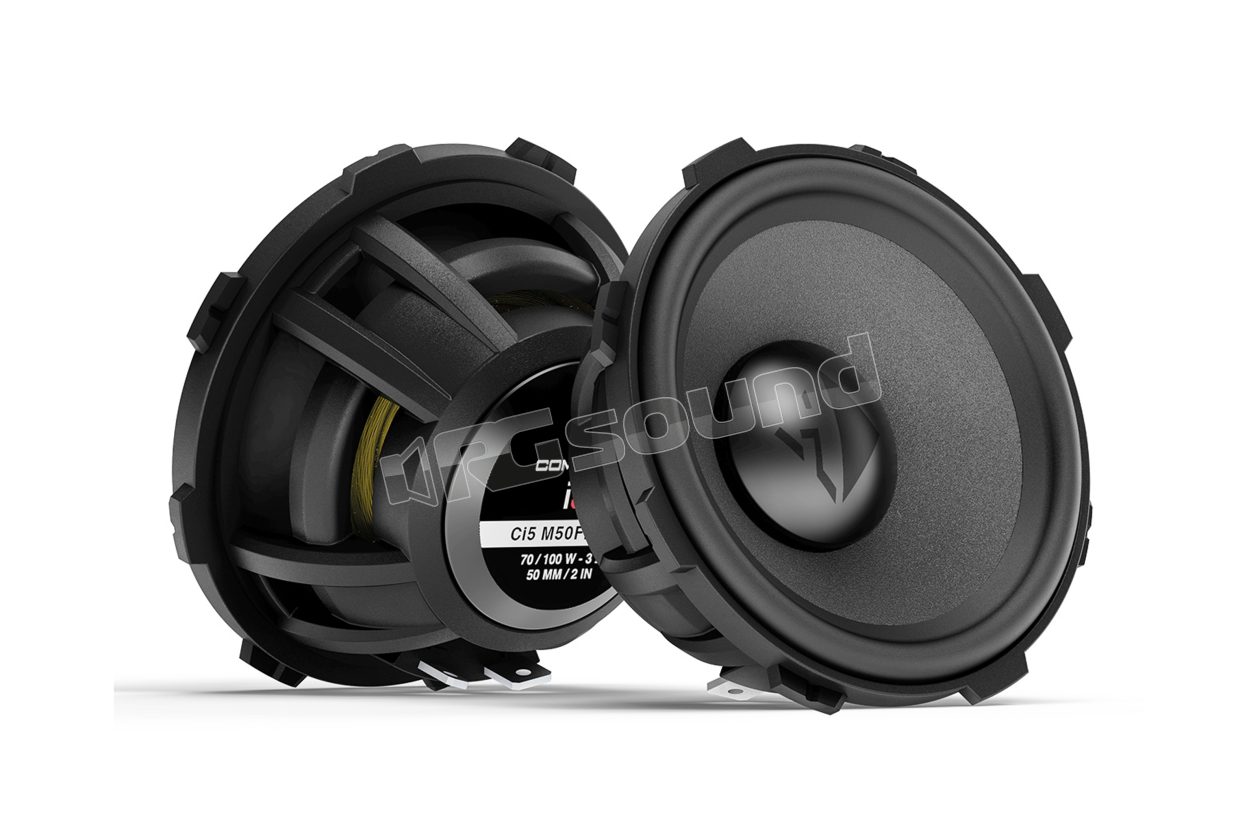

CI5 M50FM-S3

Helix
Your price:
€ 159,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
50 mm
MAX Power
100 Watt
RMS Power
70 Watt
Frequency Response
300 - 20000 Hertz
Sensitivity
85 dB
Impedance
3 Ohm
Installation Depth
25 mm
Woofer Material
Cellulosa trattata

Helix CI5 M50FM-S3 (CI21200) advanced 50 mm / 2 inch full-range speaker with 3 Ω impedance, FlexMount50 technology and exclusive silicon-coated paper cone

The HELIX COMPOSE i5 series represents the bridge between the i7 series and the i3 series, designed for the most demanding music enthusiasts who desire a true hi-fi experience. The result of combining phenomenal sound with unparalleled practicality: developed with the goal of creating speakers with unique characteristics, but also capable of concretely solving problems. All speaker impedances are perfectly matched for pairing with our HELIX and MATCH amplifiers, guaranteeing maximum performance at all times. Furthermore, we have implemented our exclusive mechanical technologies from the COMPOSE series, which offer unbeatable practical advantages.

Full-range audiophile performance for flexible integrations

The Ci5 M50FM-S3 expands the COMPOSE platform with a highly advanced 2" full-range driver that impresses with its exceptionally compact design: thanks to the significantly reduced external diameter compared to typical 2" drivers and the FlexMount technology implemented, the Ci5 M50FM-S3 can be installed even in very tight OEM mounting spaces. This makes it particularly suitable for installation positions where space constraints, unfavorable mounting angles or OEM housing limitations make it difficult to implement conventional two or three-way configurations.

Its exceptionally wide usable frequency range allows system configurations that can operate without a separate tweeter. The high power handling and clean, low-distortion reproduction of high frequencies make it also an excellent choice for midrange applications, full-range systems or DSP-based configurations that require exceptional sound quality in minimal space.

Helix CI5 M50FM-S3 key features

  • Advanced 2" / 50 mm full-range speaker with exceptional sound performance and versatile physical integration options
  • High efficiency and 3 Ohm technology to maximize amplifier output power
  • Silicon-coated paper cone for excellent impulse response and unparalleled frequency response
  • Maximized cone area and aluminum dust cap coupled directly to the voice coil, for wide frequency response between 300 and 20,000 Hz
  • High-tech polymer composite basket reinforced with glass microspheres for exceptional rigidity and minimal buzzing
  • Special rubber surround and optimized magnetic system for wide linear cone excursion
  • Dedicated surround production allows for smaller installation diameter and maximized effective cone area compared to typical 50 mm speakers
  • Powerful neodymium push-pull magnetic system for maximum efficiency and extremely low distortion
  • Universal FlexMount50 mounting ring for car-specific adaptation (e.g. Audi, Ford, Mercedes, etc.) or universal use included in the delivery
  • Universal mounting ring with grille included in the delivery

Helix CI5 M50FM-S3 technical specifications

  • RMS / Max. rated power P 70 / 100 Watt
  • Impedance Z 3 Ω
  • DC resistance Re 3.1 Ω
  • Frequency response 300 Hz - 20,000 Hz
  • Resonance frequency Fs 240 Hz
  • Mechanical Q factor Qms 3.09
  • Electrical Q factor Qes 0.80
  • Total Q factor Qts 0.68
  • Compliance Cms 300 µm/N
  • Equivalent air volume Vas 0.16 L
  • Force factor B*I 2.8 Tm
  • Sensitivity SPL 89 dB at 2.83 V / 1 m
  • 85 dB at 1 W / 1 m
  • Cone area Sd 19.6 cm²
  • Moving mass Mms 1.43 g
  • Cone material Silicon-coated paper cone
  • Mechanical resistance Rms 0.71 kg/s
  • Voice coil diameter ø 20 mm
  • Voice coil winding height 7 mm
  • Maximum linear excursion Xlin +/- 2.5 mm
  • Maximum mechanical excursion Xmax +/- 3.5 mm
  • External diameter ø 59.8 mm / 2.34"
  • External diameter with universal mounting ring ø 70.0 mm / 2.75"
  • Installation diameter ø 50.9 mm / 2.00"
  • Installation depth 25.2 mm / 0.99"
  • Powerful neodymium push-pull magnet system, FlexMount50
