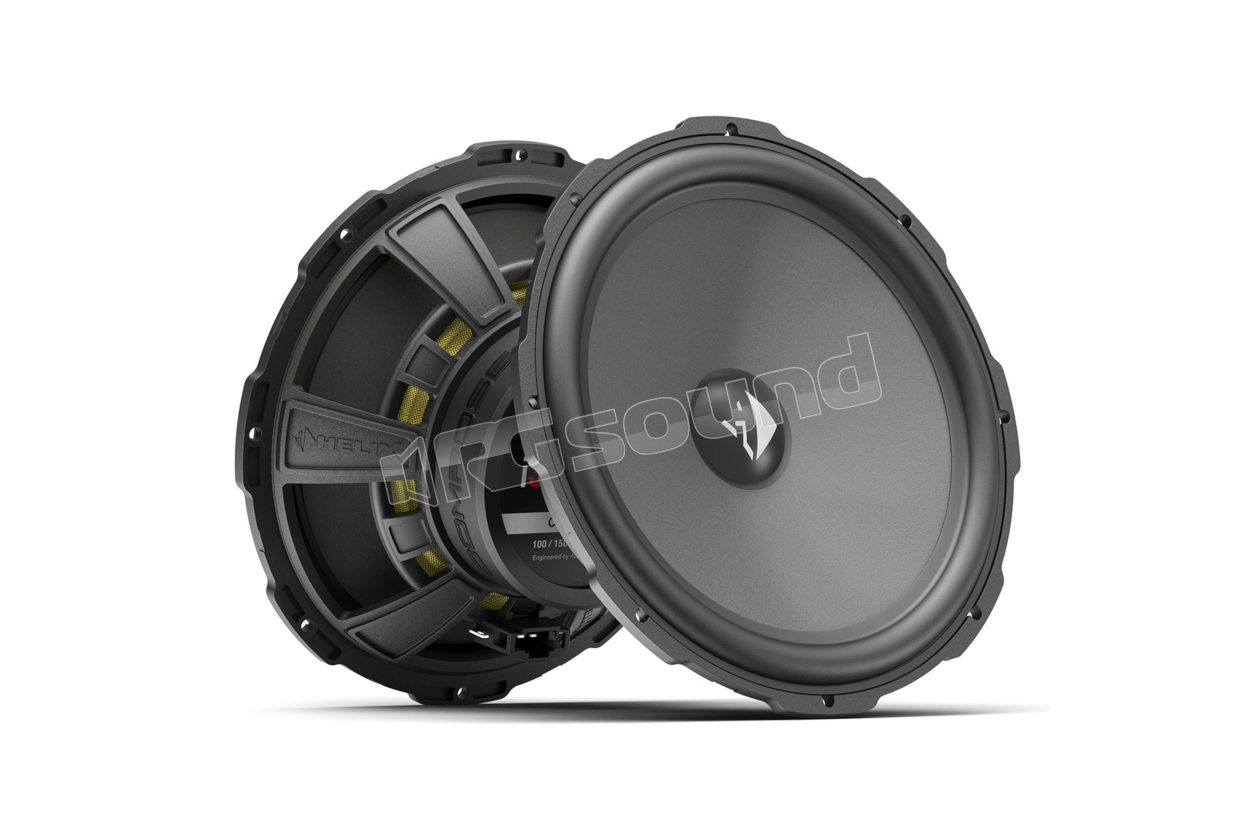

CI3 W200FM-S3 200mm Woofer - Compose i3

Helix
Your price:
€ 187,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
150 Watt
RMS Power
100 Watt
Frequency Response
50 - 3000 Hertz
Sensitivity
94 dB
Impedance
3 Ohm
Installation Depth
63,7 mm
Woofer Material
Cellulosa trattata

HELIX CI3 W200FM-S3 200mm Woofer Set - Compose i3

The HELIX COMPOSE i3 series is absolute excellence in terms of price and performance, offering a first-class sound experience thanks to high-quality components and intelligent design.

HELIX COMPOSE implements highly efficient 3 Ohm technology and harmonizes perfectly with all HELIX and MATCH amplifiers while at the same time enabling a clearly perceptible advantage in terms of efficiency and maximum sound pressure. With the innovative "Cenosphere" coating, hollow spheres are incorporated into a polyamide layer applied to the cone. This process increases rigidity and optimizes internal damping. The result is an exceptionally stable and lightweight cone that delivers exceptional precision in sound reproduction.

All CI3 W200FM-S3 baskets are made from high-tech composite polymer, further reinforced with glass spheres. The result is maximum stability with minimal self-resonance, while eliminating magnetic flux modulation and maximum resistance to thermal influences. Last but not least, this allows for much more compact basket dimensions and therefore simplified installation in tight space conditions.

2 x Ci3 W200FM-S3 2 x Universal Mounting Ring with Grille 2 x Mounting Material

HELIX CI3 W200FM-S3 Technical Specifications

  • Power Handling RMS / max. P100 / 150 Watts
  • Impedance Z 3 Ω
  • DC Resistance Re 3.0 Ω
  • Frequency Response 50 Hz - 3,000 Hz
  • Resonance Frequency Fs 67 Hz
  • Mechanical Q Factor Qms 4.25
  • Electrical Q Factor Qes 0.93
  • Total Q Factor Qts 0.76
  • Compliance Cms 300 µm/N
  • Equivalent Air Volume Vas 19.0 L
  • Force Factor B*I 5.1 Tm
  • SPL Sensitivity
    • 94 dB @ 2.83 V / 1m
    • 90 dB @ 1W / 1m
  • Cone Area Sd 214 cm²
  • Moving Mass Mms 18.8 g
  • Cone Material Paper with Cenosphere Coating
  • Mechanical Resistance Rms 1.87 kg/s
  • Voice Coil Diameter ø 25 mm
  • Voice Coil Winding Height 11.6 mm
  • Maximum Linear Excursion Xmax +/- 3.8 mm
  • Outer Diameter ø 195 mm / 7.68"
  • Outer Diameter with Universal Mounting Ring ø 208.9 mm / 8.22"
  • Installation Diameter ø 173.5 mm / 6.83"
  • Installation Depth 63.7 mm
  • Terminal Features ProConnect, FlexMount200, Grille
€ 187,00 Price incl. VAT
