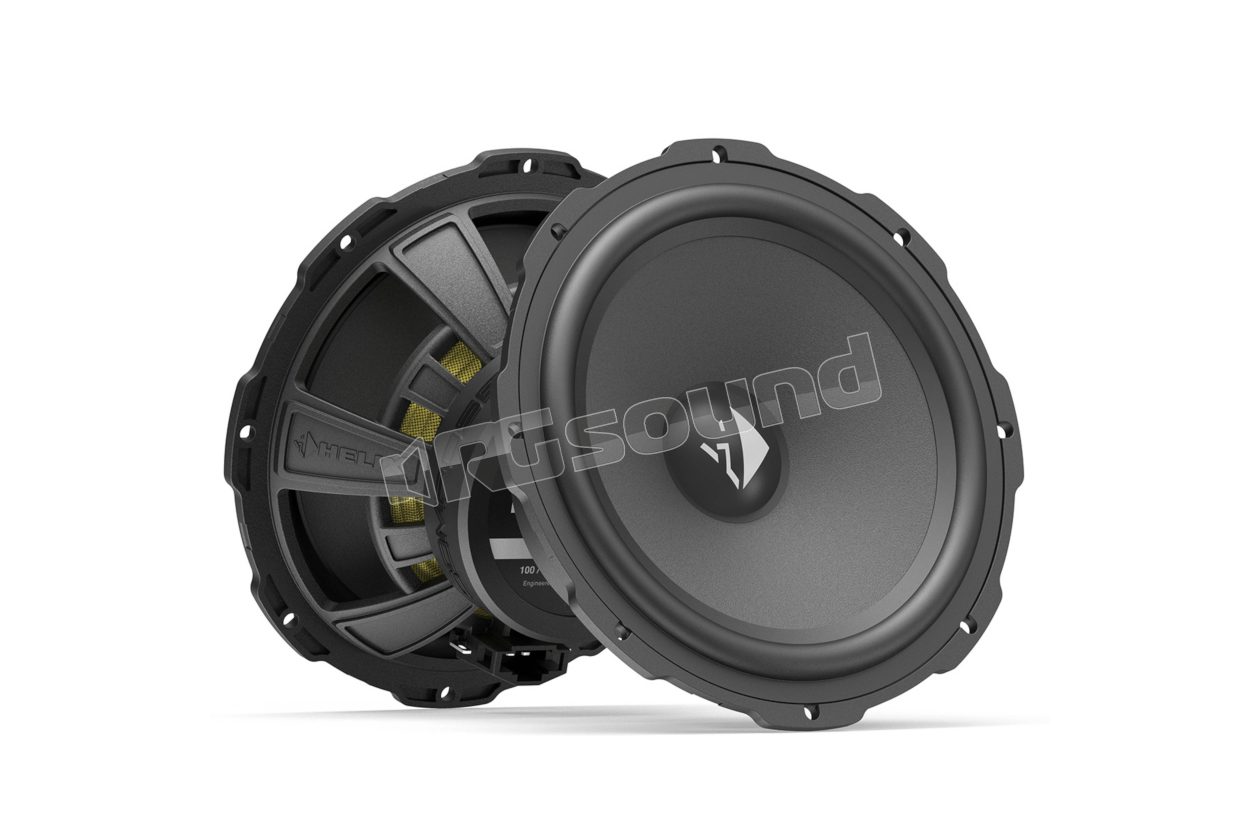

CI3 W165FM-S3 165 mm Woofer - Compose i3

Helix
Your price:
€ 140,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to

HELIX CI3 W165FM-S3 pair of 165 mm woofers - Compose i3


The HELIX COMPOSE i3 series is an absolute excellence in terms of price and performance, offering a first-class sound experience thanks to high-quality components and intelligent design.

HELIX COMPOSE implements a highly efficient 3 Ohm technology and harmonizes perfectly with all HELIX and MATCH amplifiers while at the same time enabling a clearly perceptible advantage in terms of efficiency and maximum sound pressure. With the innovative "Cenosphere" coating, hollow spheres are incorporated into a polyamide layer applied to the cone. This process increases rigidity and optimizes internal damping. The result is an exceptionally stable and lightweight cone that delivers exceptional precision in sound reproduction.

All CI3 W165FM-S3 baskets are made from a high-tech composite polymer, further reinforced with glass spheres. The result is maximum stability with minimal self-resonance, while eliminating magnetic flux modulation and maximum resistance to thermal influences. Last but not least, this allows for much more compact basket dimensions and therefore simplified installations in confined space conditions.

2 x Ci3 W165FM-S3 2 x mounting material

HELIX CI3 W165FM-S3 Technical Specifications

  • Power handling RMS / max. P
  • 100 / 150 Watt
  • Impedance Z 3 Ω
  • DC resistance Re 3.0 Ω
  • Frequency response 60 Hz - 3,500 Hz
  • Resonance frequency Fs 70 Hz
  • Mechanical Q factor Qms 4.17
  • Electrical Q factor Qes 1.05
  • Total Q factor Qts 0.84
  • Compliance Cms 454 µm/N
  • Equivalent air volume Vas 11.2 L
  • Force factor B*I 4.0 Tm
  • Sensitivity SPL 92 dB @ 2.83 V / 1m
  • 88 dB @ 1W / 1m
  • Cone area Sd 133 cm²
  • Moving mass Mms 11.3 g
  • Cone material Paper with Cenosphere coating
  • Mechanical resistance Rms 1.18 kg/s
  • Voice coil diameter ø 25 mm
  • Voice coil winding height 10.5 mm
  • Maximum linear excursion Xmax +/- 3.2 mm
  • Outer diameter ø 165 mm / 6.5
  • Installation diameter ø 142 mm
  • Installation depth 60.7 mm
  • Terminal features ProConnect,
  • FlexMount165
€ 140,00 Price incl. VAT
