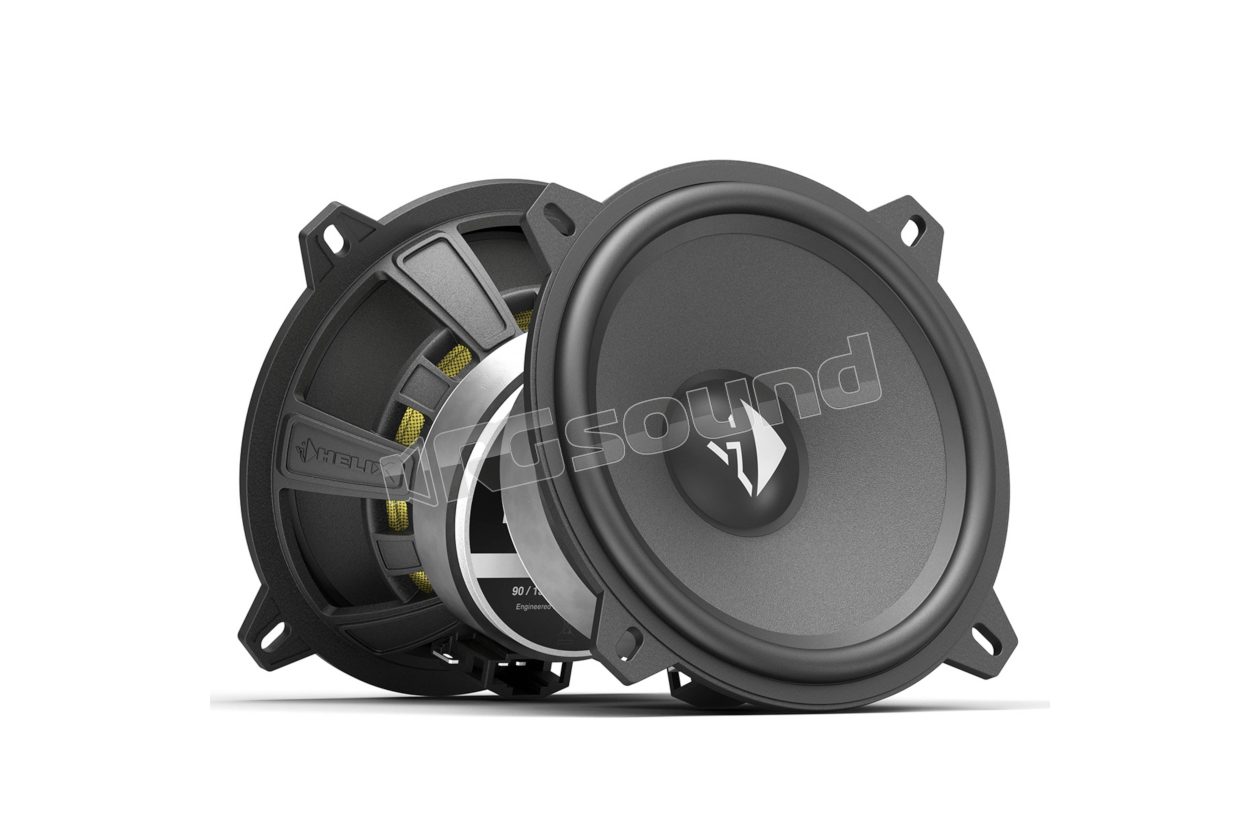

CI3 W130-S3 130 mm Woofer - Compose i3

Helix
Your price:
€ 140,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
135 Watt
RMS Power
90 Watt
Frequency Response
80 - 4000 Hertz
Sensitivity
91 dB
Impedance
3 Ohm
Installation Depth
55,4 mm
Woofer Material
Cellulosa trattata

HELIX CI3 W130-S3 Pair of 130 mm woofers - Compose i3

The HELIX COMPOSE i3 series is an absolute excellence in terms of price and performance, offering a first-class sound experience thanks to high-quality components and intelligent design.

HELIX COMPOSE implements a highly efficient 3 Ohm technology and harmonizes perfectly with all HELIX and MATCH amplifiers while at the same time providing a clearly perceptible advantage in terms of efficiency and maximum sound pressure. With the innovative "Cenosphere" coating, hollow spheres are embedded in a polyamide layer applied to the cone. This process increases rigidity and optimizes internal damping. The result is an exceptionally stable and lightweight cone that offers exceptional precision in sound reproduction.

All baskets of CI3 W130-S3 are made from a high-tech composite polymer, further reinforced with glass spheres. The result is maximum stability with minimal self-resonance, while eliminating magnetic system flux modulation and maximum resistance to thermal influences. Last but not least, this allows much more compact basket dimensions and therefore simplified installations in tight space conditions.

2 x Ci3 W130-S3 2 x mounting material

HELIX CI3 W130-S3 Technical Specifications

  • RMS / max. power handling P 90 / 135 Watt
  • Impedance Z 3 Ω
  • DC resistance Re 3.1 Ω
  • Frequency response 80 Hz - 4.000 Hz
  • Resonance frequency Fs 89 Hz
  • Mechanical Q factor Qms 3.11
  • Electrical Q factor Qes 0.97
  • Total Q factor Qts 0.74
  • Compliance Cms 350 µm/N
  • Equivalent air volume Vas 4.6 L
  • Force factor B*I 4.0 Tm
  • Sensitivity SPL 91 dB @ 2.83 V / 1m
  • 87 dB @ 1W / 1m
  • Cone area Sd 98 cm²
  • Moving mass Mms 9.1 g
  • Cone material Paper with Cenosphere coating
  • Mechanical resistance Rms 1.65 kg/s
  • Voice coil diameter ø 25 mm
  • Voice coil winding height 10.5 mm
  • Maximum linear excursion Xmax +/- 3.2 mm
  • Outer diameter ø 130 mm
  • Installation diameter ø 116.5 mm
  • Installation depth 55.4 mm
  • Features ProConnect terminal
€ 140,00 Price incl. VAT
