CI3 T20FM-TI 20mm Tweeter - Compose i3

Helix
Your price:
€ 74,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Dome Size
20 mm
Frequency Response
2000 - 25000 Hertz
Sensitivity
91 dB
Impedance
3 Ohm
Outer Diameter
32 mm
Installation Depth
9,8 mm
Tweeter Material
Cono in Titanio

HELIX CI3 T20FM-TI Pair of 20mm Tweeters - Compose i3

The HELIX COMPOSE i3 series is an absolute excellence in terms of price and performance, offering a first-class sound experience thanks to high-quality components and intelligent design.

The i3 Tweeter is equipped with an innovative titanium dome that combines exceptional stability with low moving mass and high internal damping, as well as enormous thermal resistance: a perfect solution for brilliant and compression-free treble reproduction.

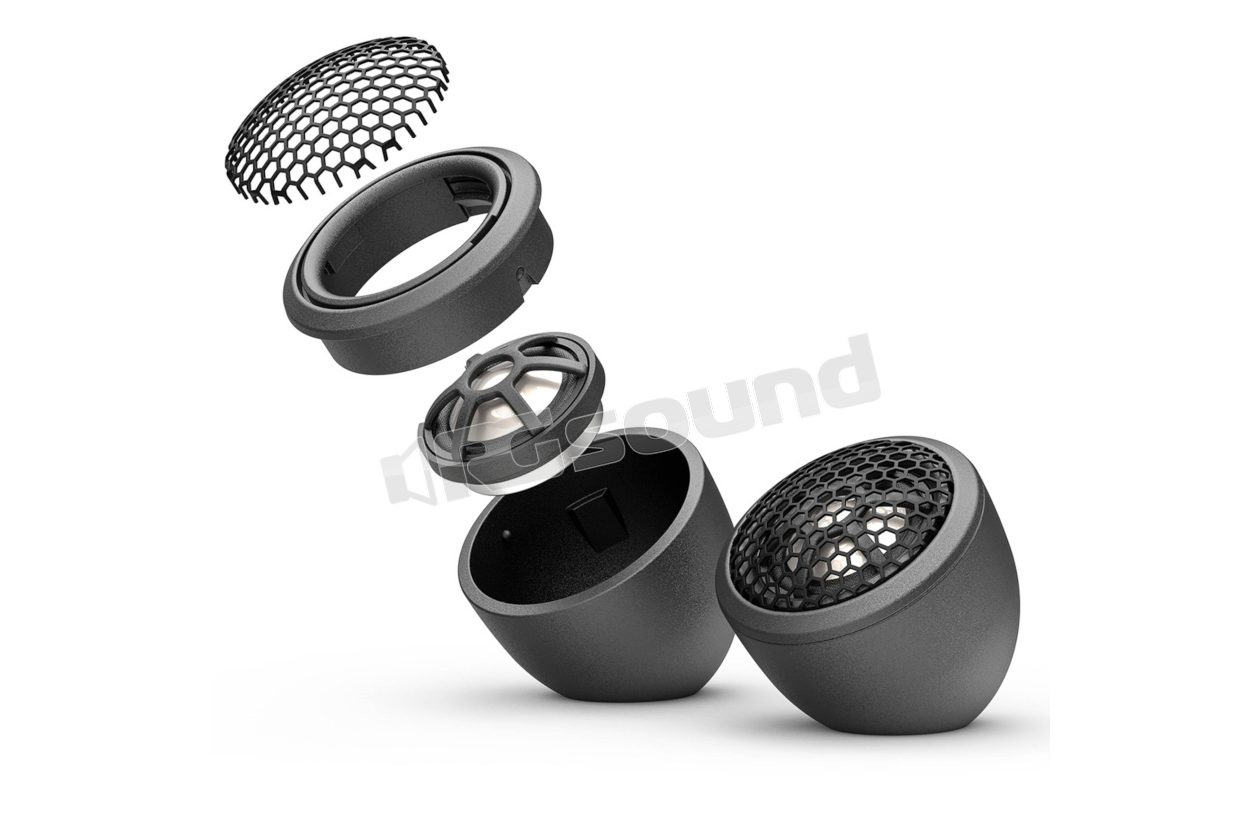

2 x Ci3 T20FM-TI 2 x Flush-Mount Tweeters 2 x Tweeter Caps 2 x Extension Cable 2 x Mounting Material

HELIX CI3 T20FM-TI Technical Specifications

  • Impedance Z 4 Ω
  • DC Resistance Re 3.2 Ω
  • Frequency Response 2,000 Hz - 25,000 Hz
  • Resonance Frequency Fs 1800 Hz
  • Sensitivity SPL
    • 91 dB @ 2.83V / 1m
    • 88 dB at 1W / 1m
  • Voice Coil Diameter Ø 20 mm
  • Cone Material Titanium
  • External Diameter 32 mm / 1.26
  • Installation Diameter 28 mm / 1.10
  • Installation Depth 9.8 mm (0.39")

Recommended Crossover Frequencies for High-Pass

  • Slope Minimum Crossover Frequency
  • 6 dB/Octave > 5,000 Hz
  • 12 dB/Octave > 3,500 Hz
  • 24 dB/Octave > 3,000 Hz
€ 74,00 Price incl. VAT
