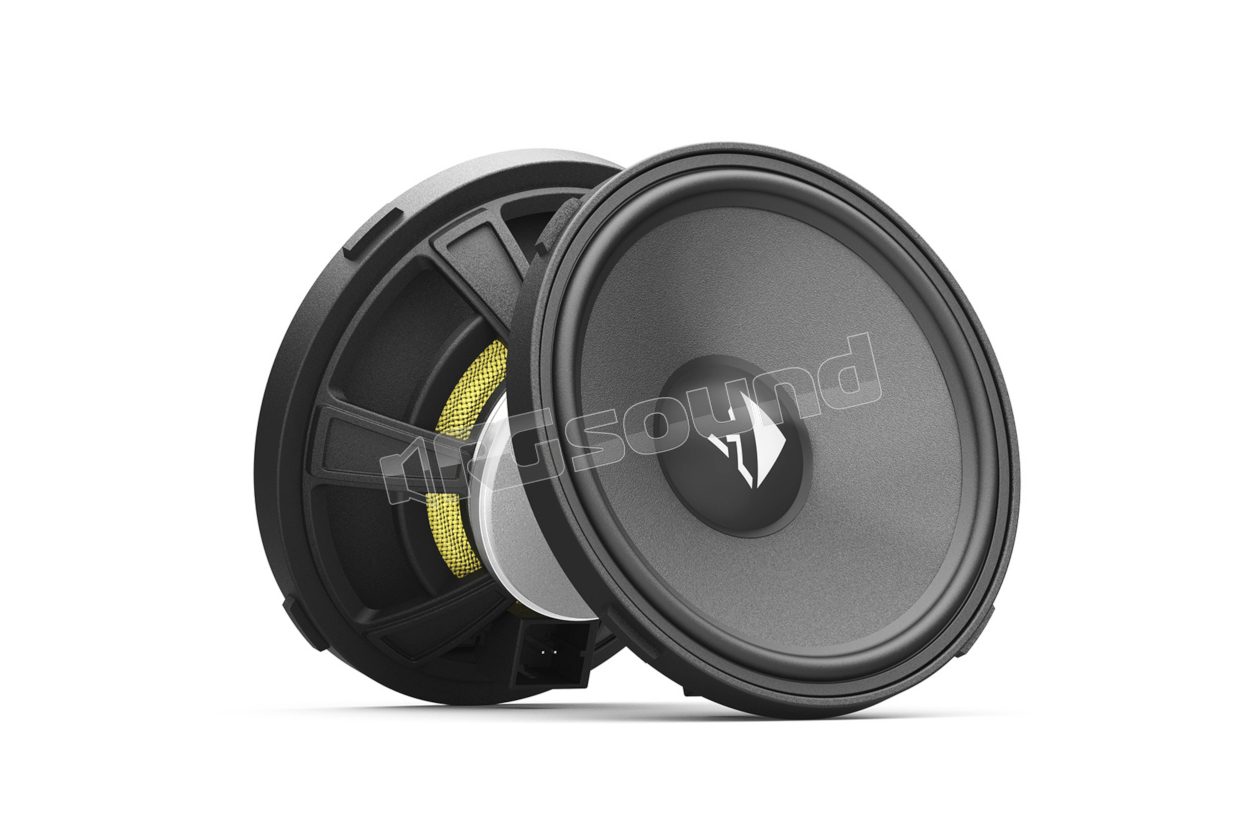

CI3 M100FM-S3 100mm midrange set - Compose i3

Helix
Your price:
€ 140,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
100 mm
MAX Power
120 Watt
RMS Power
80 Watt
Frequency Response
120 - 6000 Hertz
Sensitivity
91 dB
Impedance
3 Ohm
Installation Depth
30 mm
Midrange Cone Material
Cono in carta

HELIX CI3 M100FM-S3 pair of 100mm midrange - Compose i3


The HELIX COMPOSE i3 series is an absolute excellence in terms of price and performance, offering a first-class sound experience thanks to high-quality components and intelligent design.

HELIX COMPOSE implements a highly efficient 3 Ohm technology and harmonizes perfectly with all HELIX and MATCH amplifiers while at the same time enabling a clearly perceptible advantage in terms of efficiency and maximum sound pressure. With the innovative "Cenosphere" coating, hollow spheres are incorporated into a polyamide layer applied to the cone. This process increases rigidity and optimizes internal damping. The result is an exceptionally stable and lightweight cone that offers exceptional precision in sound reproduction.

All CI3 M100FM-S3 baskets are made from a high-tech composite polymer, further reinforced with glass spheres. The result is maximum stability with minimal self-resonance, while eliminating magnetic flux modulation and maximum resistance to thermal influences. Last but not least, this allows much more compact basket dimensions and therefore simplified installations in space-restricted conditions.

2 x Ci3 M100FM-S3 2 x FlexMount100 universal (with standard 4-point mounting) 2 x FlexConnect A insert 2 x Universal connection cable 2 x Mounting material

HELIX CI3 M100FM-S3 Technical Specifications

  • Power Handling RMS / max. P
  • 80 / 120 Watt
  • Impedance Z 3 Ω
  • DC Resistance Re 3.0 Ω
  • Frequency Response 120 Hz - 6,000 Hz
  • Resonance Frequency Fs 146 Hz
  • Mechanical Q Factor Qms 4.49
  • Electrical Q Factor Qes 1.02
  • Total Q Factor Qts 0.83
  • Compliance Cms 280 µm/N
  • Equivalent Air Volume Vas 1.1 L
  • Force Factor B*I 3.4 Tm
  • SPL Sensitivity
    • 91 dB @ 2.83 V / 1m
    • 87 dB @ 1W / 1m
  • Cone Area Sd 53 cm²
  • Moving Mass Mms 4.3 g
  • Cone Material Paper with Cenosphere coating
  • Mechanical Resistance Rms 0.87 kg/s
  • Voice Coil Diameter ø 25 mm
  • Voice Coil Winding Height 4.8 mm
  • Maximum Linear Excursion Xmax +/- 2.0 mm
  • Outer Diameter ø 98 mm / 3.86"
  • Outer Diameter with Universal Mounting Ring ø 104.5 mm / 4.11"
  • Installation Diameter ø 89 mm
  • Installation Depth 30 mm
  • Terminal Features FlexConnect, powerful neodymium push-pull magnet system, FlexMount100
€ 140,00 Price incl. VAT
