Ci3 K165.2FM-S2 MK2

Helix

Discontinued

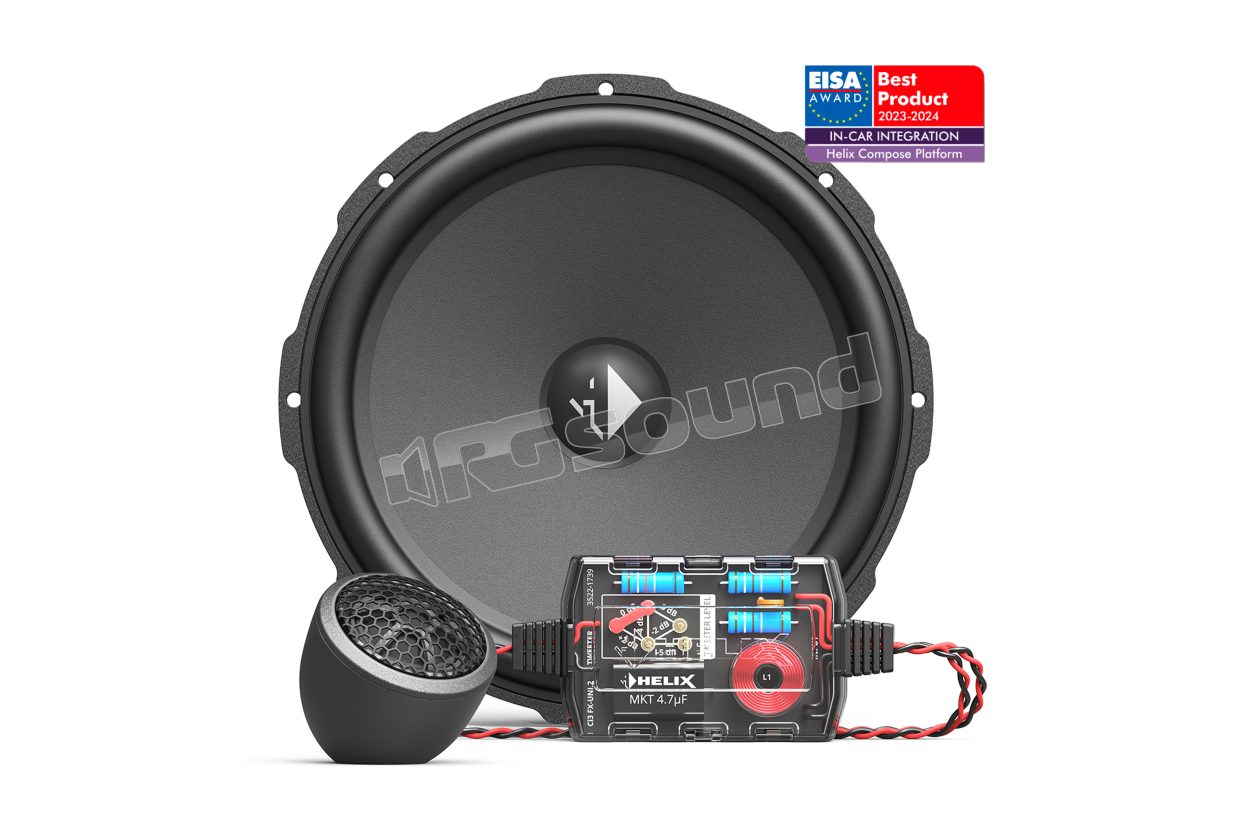

Helix Ci3 K165.2FM-S2 MK2 high-performance 6.5 inch / 165 mm speaker kit with 2 Ω impedance, aluminum tweeter and FlexMount technology

HELIX COMPOSE is the perfect speaker for any configuration

Born from the increasingly challenging demands of modern automotive technology and HELIX's typical pursuit of intelligent solutions, we have made it our mission to innovatively redesign proven universal speaker systems. The result: our innovative HELIX COMPOSE platform which, under the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and cutting-edge technologies combined with intelligent and practical design: the best of both worlds in perfect harmony: high efficiency, exceptional sound quality and extraordinary dynamics, suitable for any vehicle. HELIX COMPOSE - evolved universal speakers.

Main features

The i3 component systems offer everything you would expect from an excellent 2-way system: First-class sound experience that, thanks to the use of high-quality materials and its particularly intelligent design, integrates perfectly into the cabin. All components harmonize perfectly and form an ideal team with our HELIX and MATCH amplifiers, guaranteeing maximum performance and output power at all times. Furthermore, we have implemented our new mechanical technologies with a clear focus on safety during connection and operation, in order to create ideal conditions for integration into the vehicle with maximum compatibility.

Designed for vehicle-specific adapters FlexMount165 and FlexMount20, available as optional, which allow acoustically optimized and professional integration in the original mounting positions of the vehicle.

High efficiency

HELIX COMPOSE is synonymous with cutting-edge engineering and, consequently, implements a highly efficient 3 Ohm technology that harmonizes perfectly with all HELIX and MATCH amplifiers and, at the same time, guarantees a clear improvement in terms of efficiency and maximum sound pressure. Some models will also be available in optional 2 Ohm variants, ensuring maximum performance and power of the respective speaker in combination with the appropriate amplifier.

"Cenosphere" paper cone

Thanks to the innovative "Cenosphere" coating, hollow spheres are incorporated into a polyamide layer applied to the cone. This process increases rigidity and also optimizes internal damping. The result is an exceptionally stable yet lightweight cone that offers extraordinary precision in sound reproduction.

Midbass

  • 6.5" / 165 mm midbass with paper cone coated with the exclusive Cenosphere technology for precise and detailed sound reproduction
  • High-tech polymer composite basket reinforced with glass microspheres for exceptional rigidity and minimal residual vibration
  • Powerful magnetic system for high efficiency and optimal impulse response
  • Polyurethane dust cap for optimized frequency response in the mid-high range

Tweeter

  • 0.75" / 20 mm high-performance tweeter with black aluminum dome for precise, pure and detailed high-frequency response
  • High-quality aluminum dome with a perfect balance between reduced weight and high rigidity - for natural brightness and detailed reproduction
  • Refined and highly efficient neodymium magnet for high magnetic flux linearity and optimized performance
  • Compact design and various mounting options to meet numerous installation requirements
  • Flush and angled mounting brackets included in the delivery
  • Power nominal RMS / Max. P 100 / 150 Watt
  • Frequency response 60 Hz - 25,000 Hz
  • Impedance Z 2 Ω
  • Sensitivity SPL 94 dB at 2.83 V / 1 m
  • 88 dB at 1 W / 1 m

Crossover

  • Separate high-quality crossover with compact dimensions for easy integration
  • 6-level tweeter level adjustment with integrated tweeter protection for optimized high-frequency tuning to the mounting position
  • Extremely accurate tuning - with 12 dB slope for the tweeter
  • Designed for vehicle-specific WireKits available as optional, which allow non-destructive integration

HELIX Ci3 K165.2FM-S2 MK2 technical specifications

  • 2-way speaker kit that combines exceptional sound quality with versatile options for physical integration
  • High efficiency and 2 Ohm technology for maximum amplifier output power
  • Intelligent automotive-grade connectors for safe and fail-proof installation - COMPOSE Connect & ProConnect
  • Crossover dimensions 103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"

Outer diameter ø

  • Tweeter: 32.0 mm / 1.26"
  • Midbass: 165.0 mm / 6.50"

Installation diameter ø

  • Tweeter: 32.0 mm / 1.26"
  • Midbass: 142.0 mm / 5.59"

Installation depth

  • Tweeter: 9.8 mm / 0.39"
  • Midbass: 60.7 mm / 2.39"
