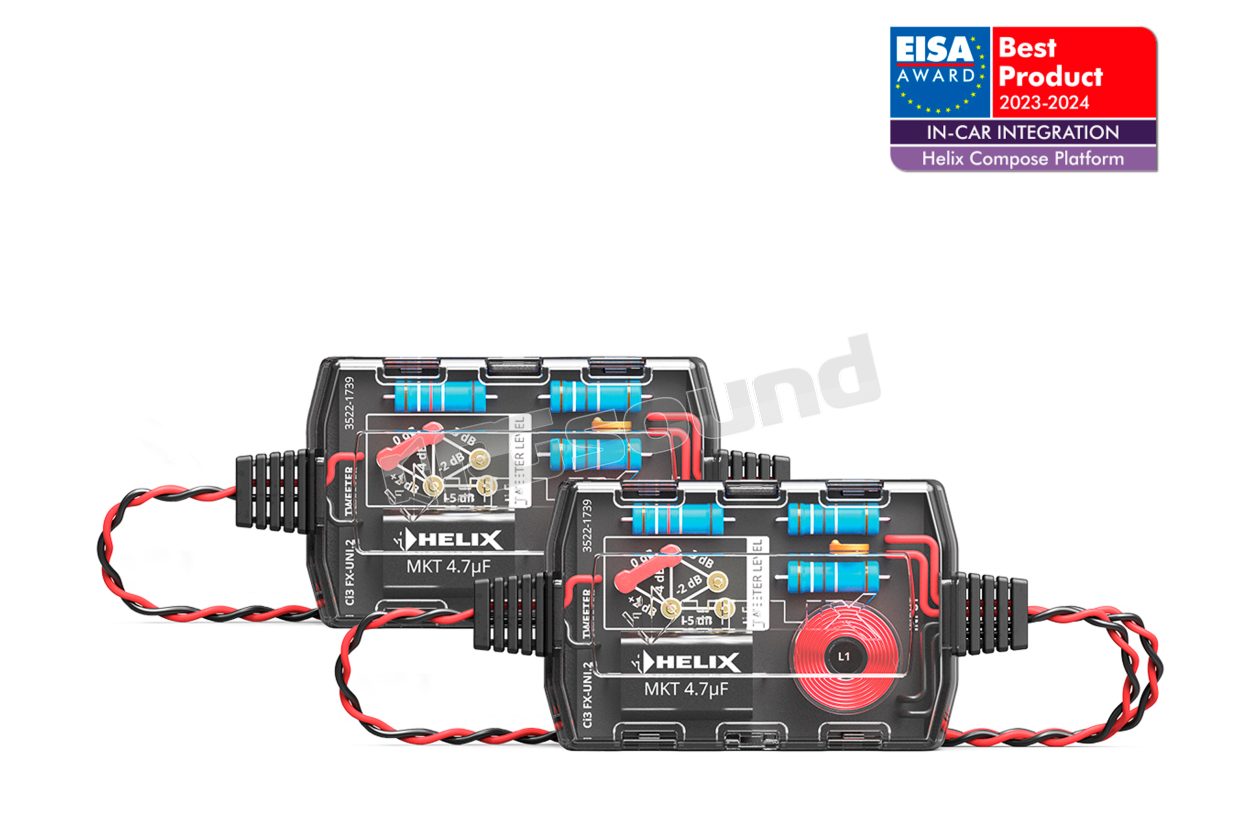

HELIX CI3 FX-UNI.2 Universal 2-way crossover for COMPOSE i3 speakers

The Ci3 FX-UNI.2 crossover has been designed for use with HELIX Compose i3 components, and thus for the professional integration typical of COMPOSE in the vehicle. It offers 6-stage tweeter level adjustment with a 12 dB slope for optimal adaptation to the installation position, as well as integrated tweeter protection. Furthermore, no effort was spared in the complex tuning of the crossover to achieve the best possible frequency band distribution and a harmonious sound image.

Thanks to its compact dimensions, the Ci3 FX-UNI.2 is perfectly suited for installation in confined spaces and is also compatible with our COMPOSE Connect and WireKit technologies for a secure and error-proof connection according to automotive standards.

Compatibility

Tweeter:

  • Ci3 T20FM-TI

Midrange / Midbass / Woofer:

  • Ci3 M100FM-S3
  • Ci3 W130-S3
  • Ci3 W165FM-S3
  • Ci3 W165FM-S2
  • Ci3 W200FM-S3
  • Ci3 W200FM-S2

Helix Ci3 FX-UNI.2 Technical Specifications

  • 6-stage tweeter level adjustment to optimize treble adaptation to mounting position
  • Integrated tweeter protection
  • Wide fine adjustment with 12 dB slope for the tweeter
  • COMPOSE Connect - Intelligent automotive-type connectors for safe and error-proof installation
  • Compact dimensions for easy integration
  • Designed for car-specific WireKits, available as optional, which allow for non-destructive integration
  • Compatible with all COMPOSE i3 speakers
  • 12 dB high-pass slope for the tweeter
  • Tweeter level adjustment range from -5 dB to +2 dB
