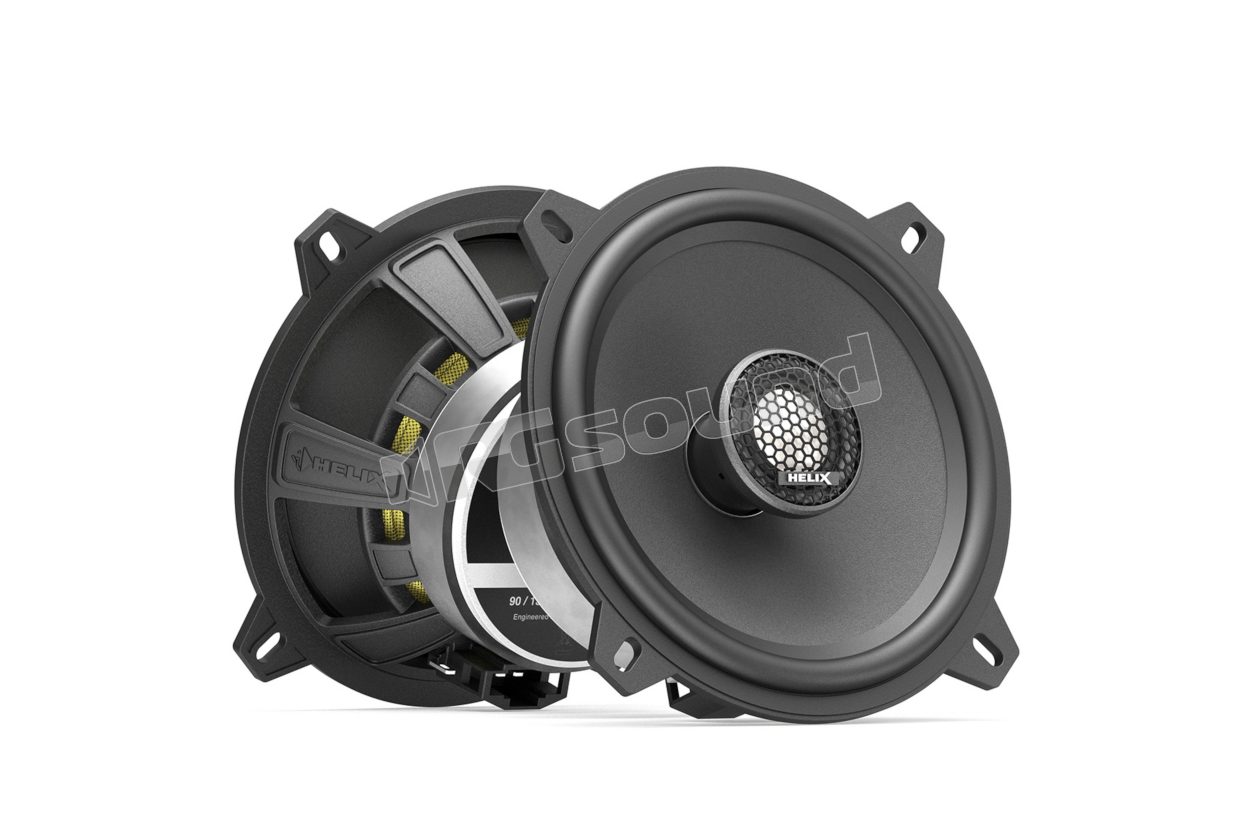

CI3 C130.2-S3 130 mm coaxial system - Compose i3

Helix
Your price:
€ 168,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
130 mm
Coaxial Type
2-way
Frequency Response
80 - 25.000 Hertz
MAX Power
135 Watt
RMS Power
90 Watt
Sensitivity
92 dB
Impedance
3 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Cupola in titanio

HELIX CI3 C130.2-S3 130 mm Coaxial System - Compose i3

The i3 coaxial systems offer everything you would expect from a great 2-way system: A top-notch sound experience thanks to the use of high-quality materials and intelligent design. All components harmonize perfectly, always guaranteeing maximum performance and power.

HELIX COMPOSE implements a highly efficient 3 Ohm technology and harmonizes perfectly with all HELIX and MATCH amplifiers while at the same time providing a clearly perceptible advantage in terms of efficiency and maximum sound pressure. With the innovative "Cenosphere" coating, hollow spheres are incorporated into a polyamide layer applied to the cone. This process increases rigidity and optimizes internal damping. The result is an exceptionally stable and lightweight cone that delivers exceptional precision in sound reproduction.

All baskets of the C130.2-S3 are made from a high-tech composite polymer, further reinforced with glass spheres. The result is maximum stability with minimal self-resonance, while also eliminating magnetic flux modulation of the system and maximum resistance to thermal influences. Last but not least, this allows for much more compact basket dimensions and therefore simplified installation in tight space conditions.

2 x Ci3 C130.2-S3 1 x mounting material

HELIX CI3 C130.2-S3 Technical Specifications

  • Power handling RMS / Max. P 90 / 135 Watt
  • Frequency response 80 Hz - 25,000 Hz
  • Impedance Z 3 Ω
  • Sensitivity SPL
    • 92 dB @ 2.83V / 1m
    • 88 dB at 1W / 1m
    • Outer diameter ø 130.0 mm / 5.12
  • Installation diameter ø 116.5 mm / 4.59
  • Installation depth 55.4 mm

Midbass

  • Impedance Z 3 Ω
  • DC resistance Re 3.0 Ω
  • Resonance frequency Fs 92 Hz
  • Mechanical Q factor Qms 2.76
  • Electrical Q factor Qes 0.90
  • Total Q factor Qts 0.68
  • Compliance Cms 374 μm/N
  • Equivalent air volume Vas 4.9 L
  • Force factor B*l 3.8 Tm
  • Cone area Sd 97 cm2
  • Moving mass Mms 7.6 g
  • Mechanical resistance Rms 1.60 kg/s
  • Voice coil diameter ø 25 mm
  • Voice coil winding height 10.5 mm
  • Maximum linear excursion Xmax +/- 3.2 mm

Tweeter

  • Moving coil diameter ø 20 mm

Features

  • Tweeter Titanium dome and neodymium magnet
  • Midbass Paper with Cenosphere coating and ProConnect terminal
  • Integrated crossover, 6 dB high-pass
€ 168,00 Price incl. VAT
