CI3 C100.2FM-S3 MK2

Helix

Discontinued

Your price:
€ 189,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
100 - 25000 Hertz
MAX Power
120 Watt
RMS Power
80 Watt
Sensitivity
91 dB
Impedance
3 Ohm
Woofer Material
Composito
Tweeter Material
Alluminio

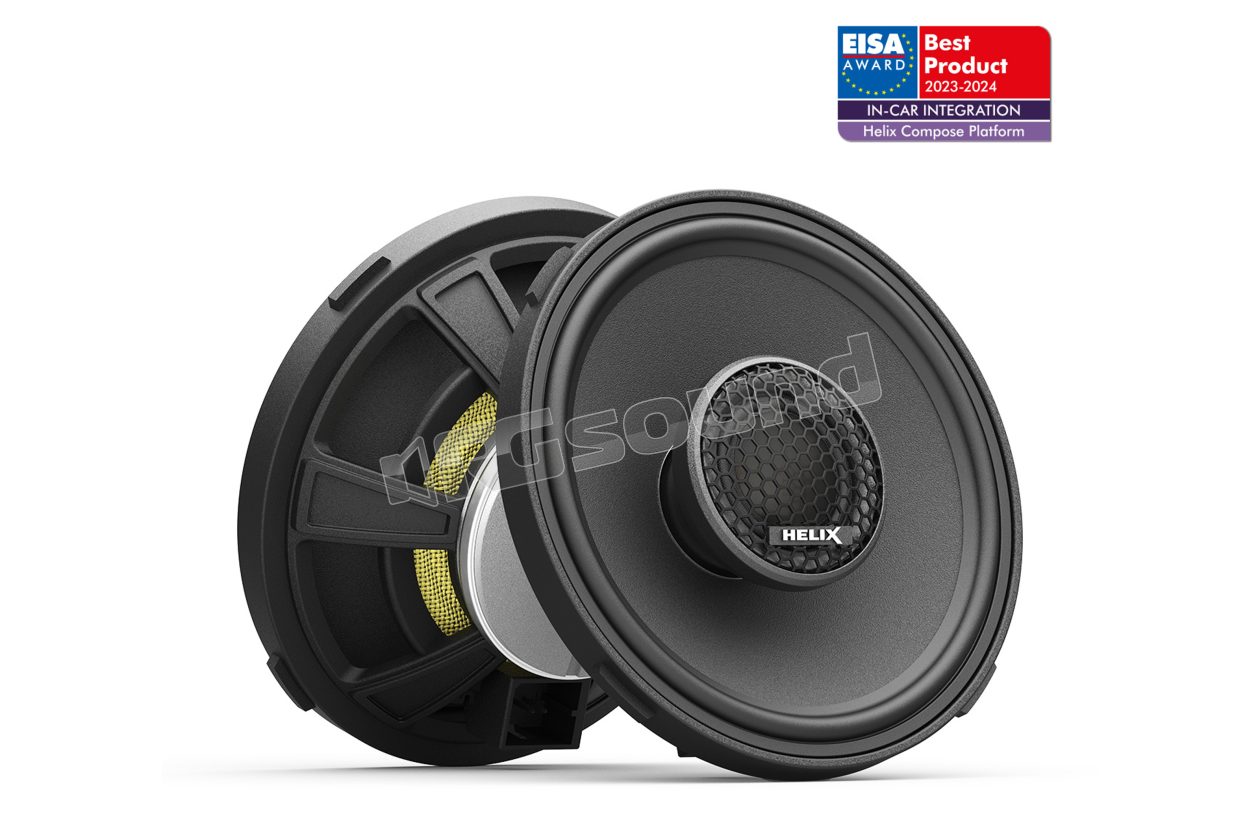

Helix CI3 C100.2FM-S3 MK2 pair of high-performance 4" / 100mm coaxial speakers with 3 Ω impedance, aluminum tweeter and FlexMount technology

HELIX COMPOSE. The perfect speaker for any configuration.

Born from the increasingly demanding challenges of modern automotive technology and HELIX's typical pursuit of intelligent solutions, we set ourselves the mission of innovatively redesigning proven universal speaker systems. The result: our innovative HELIX COMPOSE platform which, under the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and cutting-edge technologies combined with intelligent and practical design: the best of both worlds in perfect harmony: high efficiency, fantastic sound quality and enormous dynamics that adapt to any vehicle. HELIX COMPOSE - evolved universal speakers.

Key features

The i3 coaxial systems offer everything you would expect from an excellent 2-way system: first-class sound experience that, thanks to the use of high-quality materials and its particularly intelligent design, integrates perfectly into the vehicle interior. All components integrate seamlessly and form an ideal combination with our HELIX and MATCH amplifiers, guaranteeing maximum performance and output power at all times. Furthermore, we have implemented our new mechanical technologies with a clear focus on safety during connection and operation, in order to create ideal conditions for integration into the vehicle with maximum compatibility.

High efficiency

HELIX COMPOSE is synonymous with cutting-edge engineering and, consequently, implements 3 Ohm high-efficiency technology, which harmonizes perfectly with all HELIX and MATCH amplifiers and, at the same time, guarantees a clear improvement in terms of efficiency and maximum sound pressure.

"Cenosphere" paper cone

Thanks to the innovative "Cenosphere" coating, hollow spheres are incorporated into a polyamide layer applied to the cone. This process increases rigidity and also optimizes internal damping. The result is an exceptionally stable yet lightweight cone that offers extraordinary precision in sound reproduction.

FlexMount100 - Universality meets specificity for every model

FlexMount is a mounting system based on specially developed adapter rings, which enables the installation of COMPOSE FlexMount speakers in a virtually infinite number of vehicles. In this way, the universal speaker transforms effortlessly into a model-specific speaker, which can be easily installed in the vehicle's original mounting position in an acoustically optimized manner thanks to the FlexMount100 adapter ring with rotary closure.

Manuale utente

n-20260723144509-helix-compose-i3-mk2-speaker-systems-22-04-2025.pdf

Helix CI3 C100.2FM-S3 MK2 technical specifications

  • 2-way coaxial speaker system that combines exceptional sound quality with versatile physical integration options
  • High efficiency and 3 Ohm technology to maximize amplifier output power
  • Automotive-grade FlexConnect terminals enable quick and secure connection, as well as direct connection to original wiring thanks to vehicle-specific adapters available as optional
  • High-performance 0.75" / 20 mm tweeter with black aluminum dome for accurate, pure and detailed treble response
  • High-quality aluminum dome with a perfect balance between reduced weight and high rigidity - for natural brightness and detailed reproduction
  • Refined and highly efficient neodymium magnet for high magnetic flux linearity and optimized performance
  • 4" / 100 mm midrange with exclusive paper cone coated with Cenosphere technology for precise and detailed sound reproduction
  • High-tech polymer composite basket reinforced with glass microspheres for enormous rigidity and residual oscillation minimized
  • Low-profile neodymium magnetic system for reduced installation depth and high efficiency
  • Integrated crossover with 6 dB slope
  • Designed for vehicle-specific FlexMount100 adapters, available as optional, which allow acoustically optimized and professional integration into the vehicle's original mounting position

Specifications

  • Rated RMS / Max. power P 80 / 120 Watt
  • Frequency response 100 Hz - 25,000 Hz
  • Impedance Z 3 Ω
  • Sensitivity SPL 91 dB at 2.83 V / 1 m
  • 87 dB at 1 W / 1 m
  • Outer diameter ø 98.0 mm / 3.86"
  • Installation diameter ø 89.0 mm / 3.50"
  • Installation depth 30.0 mm / 1.18"
  • Integrated crossover, high-pass 6 dB

Midrange

  • Impedance Z 3 Ω
  • DC resistance Re 3.0 Ω
  • Resonant frequency Fs 137 Hz
  • Mechanical Q factor Qms 4.37
  • Electrical Q factor Qes 0.78
  • Total Q factor Qts 0.66
  • Compliance Cms 456 μm/N
  • Equivalent air volume Vas 2.1 L
  • Force factor B*l 3.2 Tm
  • Cone area Sd 57 cm²
  • Moving mass Mms 3.0 g
  • Mechanical resistance Rms 0.58 kg/s
  • Voice coil diameter ø 25 mm
  • Voice coil height 4.8 mm
  • Maximum linear displacement Xmax +/- 2.0 mm

Tweeter

  • Voice coil diameter ø 20 mm
  • Tweeter aluminum dome and neodymium magnet

Compatibility

  • FlexMount100
  • FlexConnect inserts

Package contents

  • 2 x Ci3 C100.2FM-S3 MK2
  • 2 x Universal FlexMount100 (with standard 4-point mounting)
  • 2 x FlexConnect insert A
  • 2 x Universal connection cable
  • 1 x Mounting material
