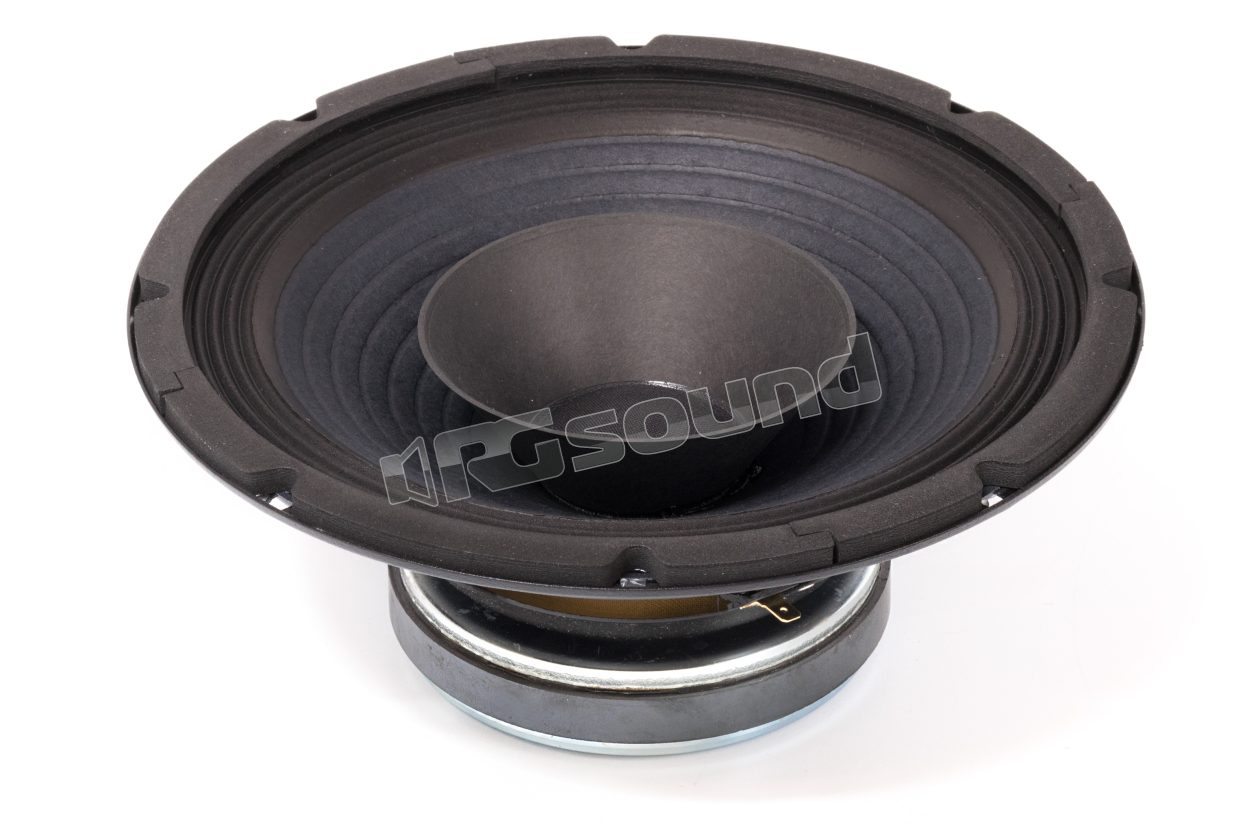

CH252 dual cone 250 mm

Ciare

Discontinued

Your price:
€ 107,00
Price per single item (VAT included)
Type
Two-way
Speaker Size
250 mm

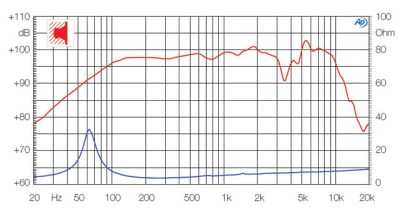

Frequency Response
50 - 12.000 Hertz
MAX Power
300 Watt
RMS Power
150 Watt
Sensitivity
98 dB
Impedance
4 Ohm

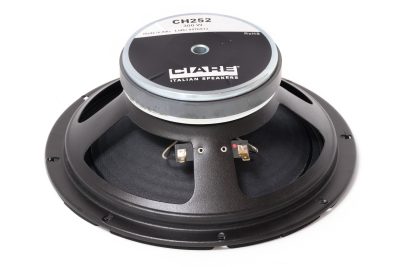

Ciare CH252 dual cone, size 250mm, cellulose diaphragm and suspension, max power 150W, 4Ohm. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely independently all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CH252 Features

  • Max power: 300W
  • Nominal power: 150W
  • Diameter: 10''-250mm
  • Nominal impedance: 4Ω
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 98 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 18 dm3
  • Recommended tuning frequency: 95 Hz

CH252 Materials

  • Basket type: Steel
  • Suspension type: Treated fabric
  • Former type: Aluminum
  • Air gap height: 8 mm

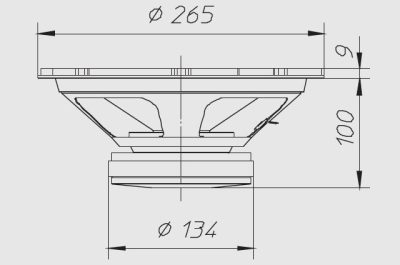

CH252 Dimensions

  • Outer diameter: 265 mm
  • Depth under flange: 100 mm
  • Flange thickness: 9 mm
  • Panel hole: 238 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 6 mm
  • Mounting hole position diameter: 253
  • Weight with single packaging: 3.40 Kg

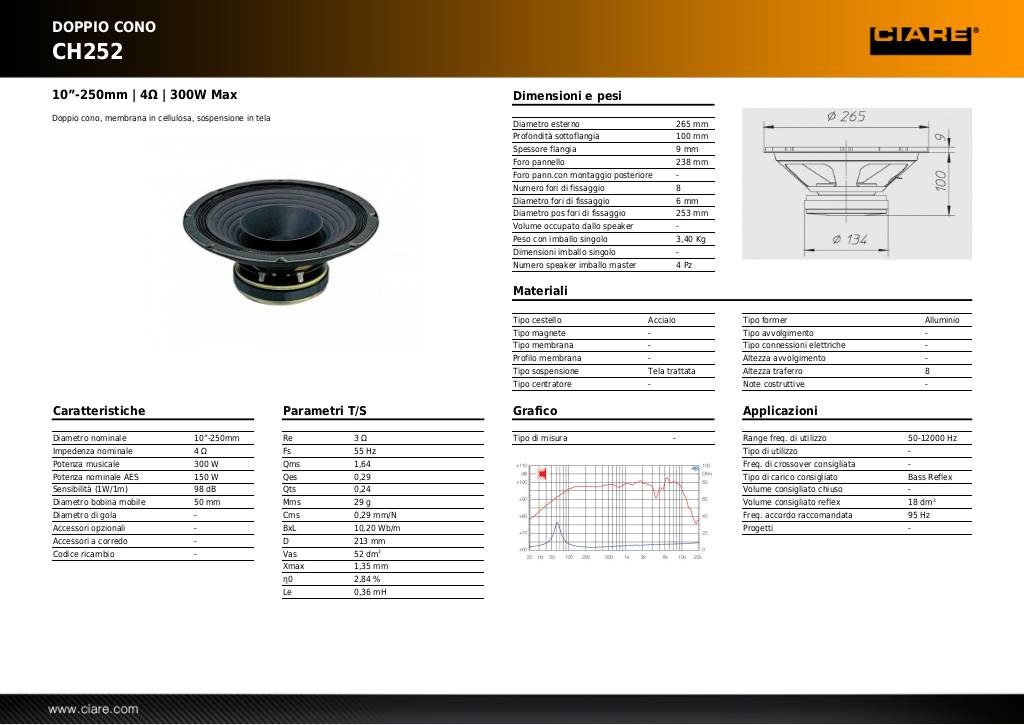

Scheda tecnica

20131028170452-ch252.pdf
