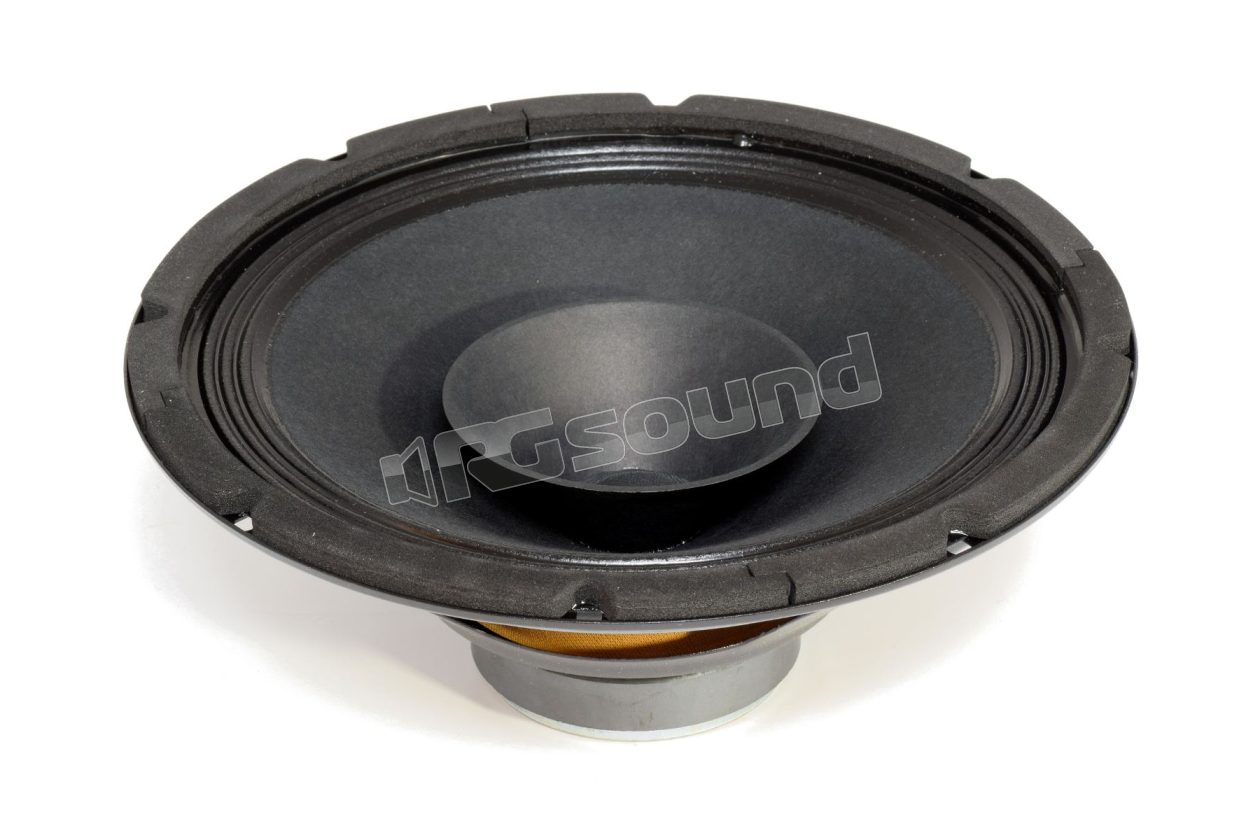

CH250 dual cone 250 mm (last piece available)

Ciare

Discontinued

Your price:
€ 52,70
Price per single item (VAT included)
Type
Two-way
Frequency Response
40 - 18.000 Hertz
MAX Power
150 Watt
RMS Power
50 Watt
Sensitivity
96 dB
Impedance
4 Ohm

Ciare CH250 dual cone, diameter 250mm, cellulose membrane and surround, 150W Max, 4Ohm. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product creation, allowing the company to achieve the highest quality standards in the realization of every component.

CH250 Features

  • Max power: 150W
  • Nominal power: 50W
  • Diameter: 10''-250mm
  • Nominal impedance: 4Ω
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 96 dB
  • Recommended load type: Sealed enclosure
  • Recommended sealed volume: 80 dm3

CH250 Materials

  • Basket type: Steel
  • Surround type: Paper
  • Air gap height: 6 mm

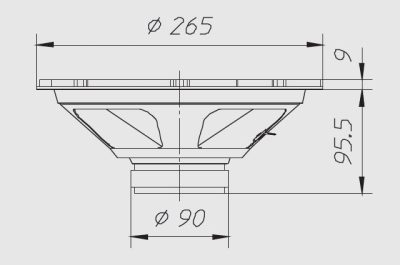

CH250 Dimensions

  • Outer diameter: 265 mm'
  • Depth under flange: 95.5 mm
  • Flange thickness: 9 mm
  • Panel hole: 238 mm
  • Number of mounting holes: 8
  • Diameter of mounting holes: 6 mm
  • Diameter mounting holes position: 253
  • Weight with individual packaging: 1.35 Kg

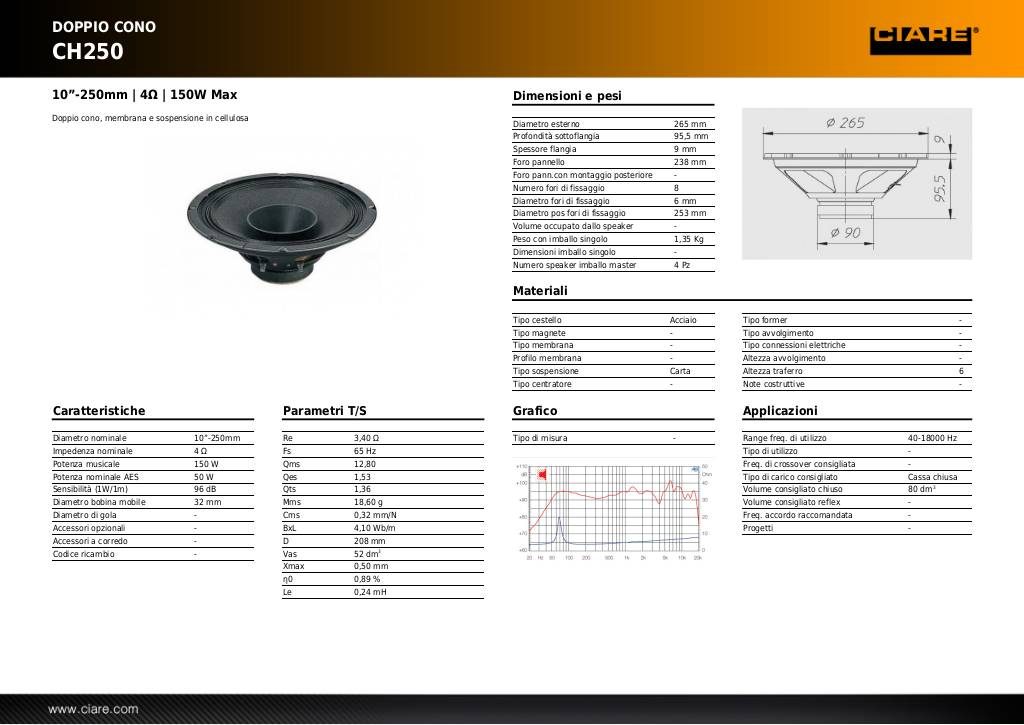

Scheda tecnica

20131028170127-ch250.pdf
