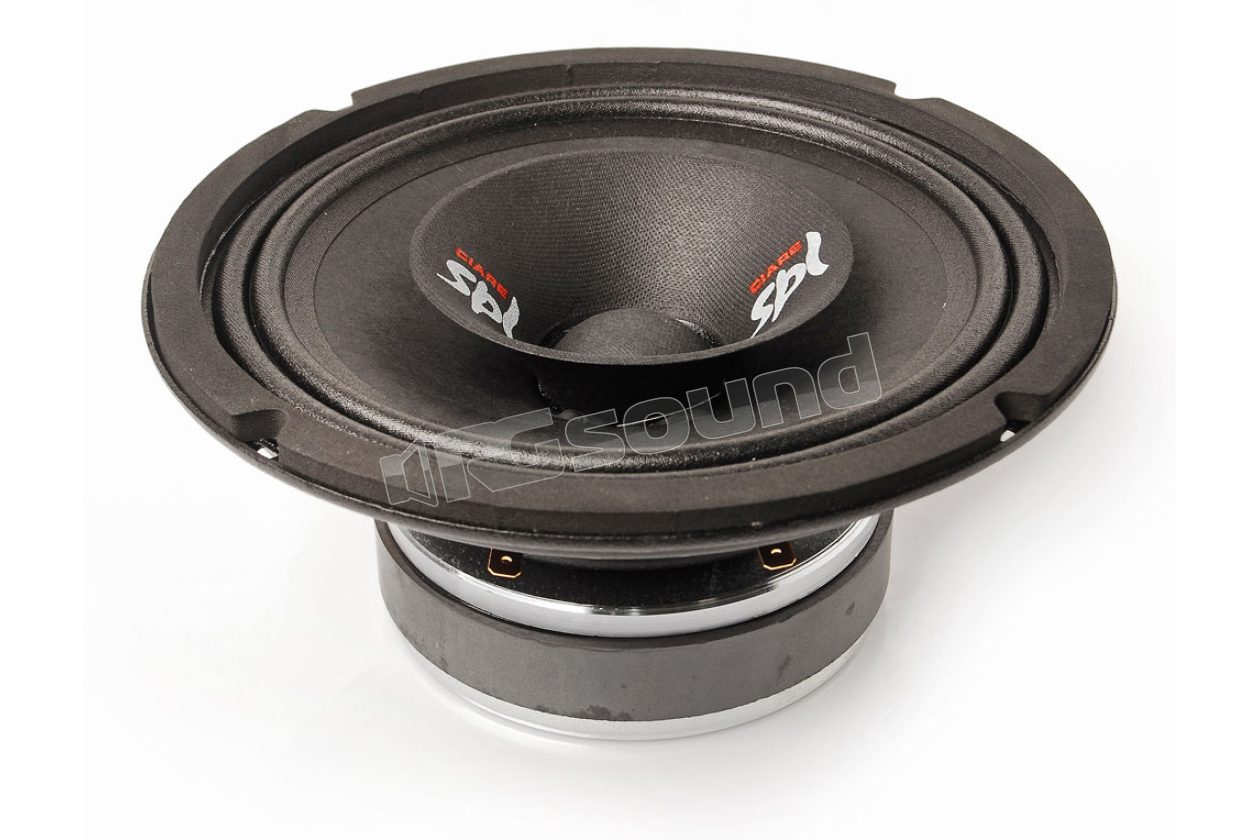

CH201 200 mm dual cone

Ciare

Discontinued

Your price:
€ 75,70
Price per single item (VAT included)
Type
Two-way
Speaker Size
200 mm
Frequency Response
75 - 10.000 Hertz
MAX Power
150 Watt
RMS Power
100 Watt
Sensitivity
96 dB
Impedance
4 Ohm

Ciare CH201 dual cone 200mm with cellulose membrane, treated cloth suspension, max power 250W. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CH201 Features

  • Max power: 250W
  • Nominal power: 100W
  • Diameter: 8''-200mm
  • Nominal impedance: 4?
  • Voice coil diameter: 38mm
  • Sensitivity 1W/1m: 96 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 22 dm3
  • Recommended tuning frequency: 72 Hz

CH201 Materials

  • Basket type: Steel
  • Suspension type: Treated cloth
  • Former type: Kapton
  • Electrical connections type: Faston
  • Air gap height: 8 mm

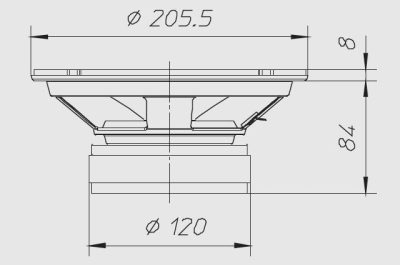

CH201 Dimensions

  • Outer diameter: 205.5 mm'
  • Depth without flange: 84 mm
  • Flange thickness: 8 mm
  • Panel hole: 185 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5.5 mm
  • Mounting hole position diameter: 194
  • Weight with single packaging: 2.60 Kg

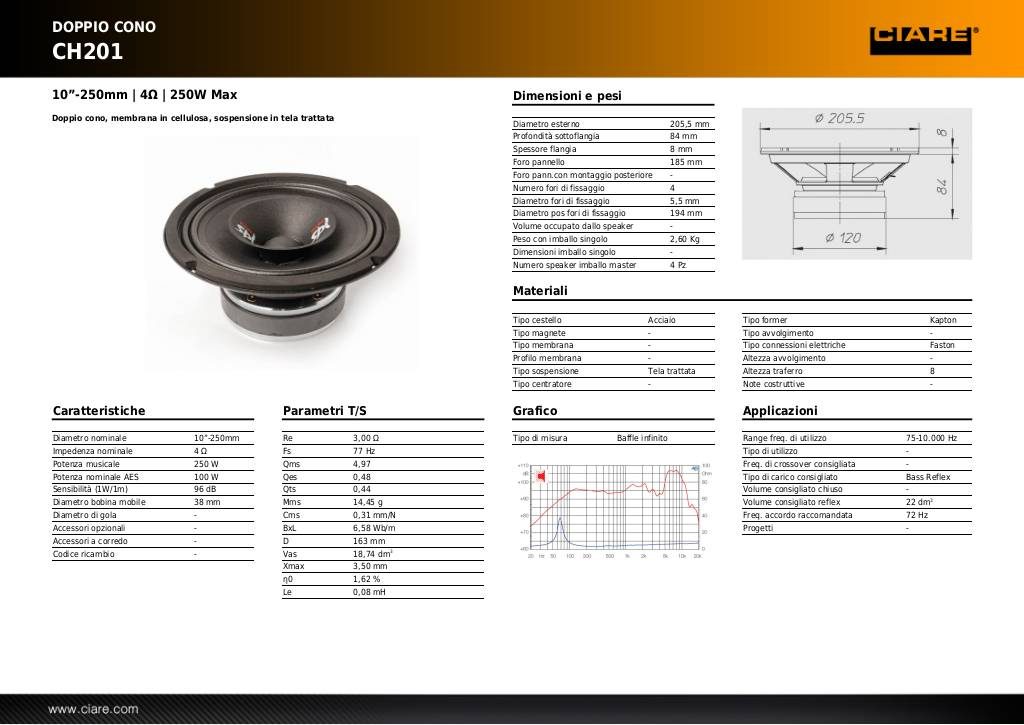

Scheda tecnica

20131028164543-ch201.pdf

1 Ciare CH201 Speaker
Discontinued
