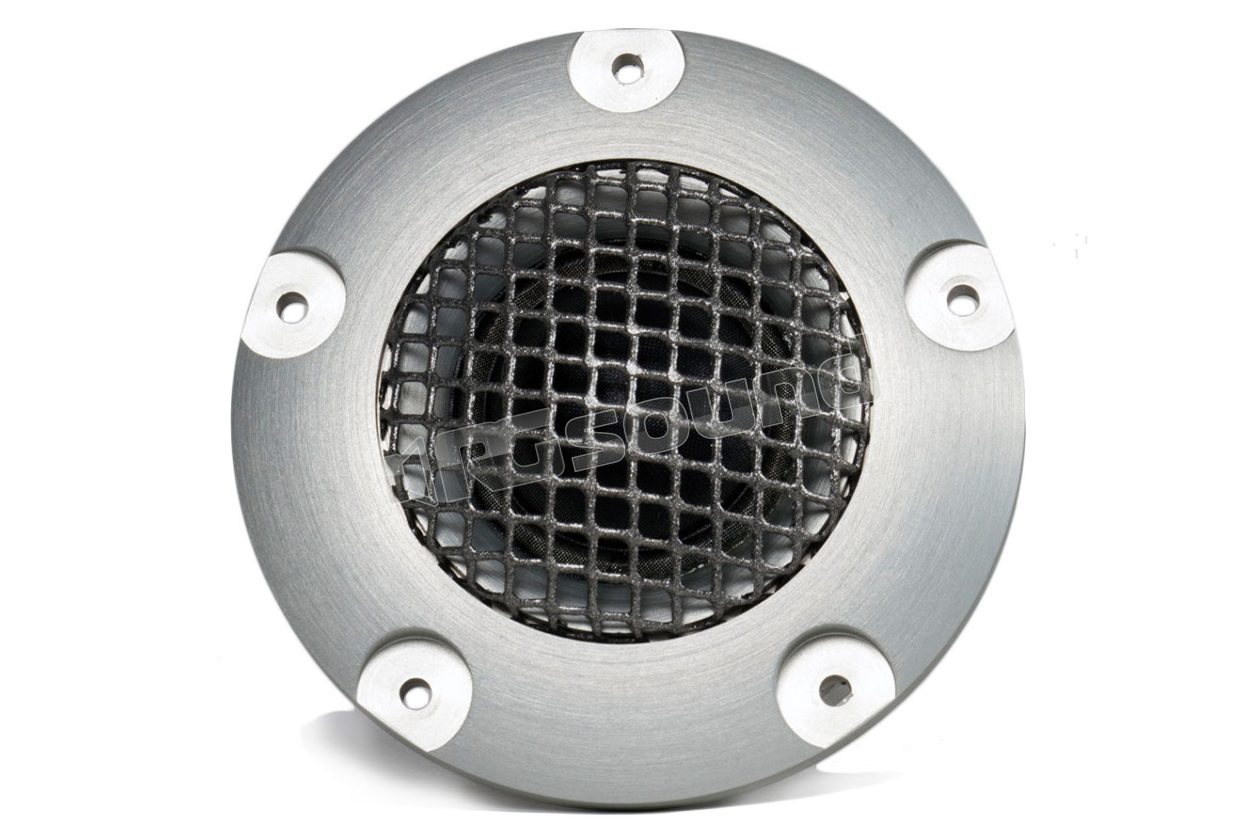

CF25T 25 mm tweeter, Grandioso Series

Quartorigo

Discontinued

Your price:
€ 1425,00
Price per pair (VAT included)
Type
Tweeter
Dome Size
25 mm
RMS Power
100 Watt
Frequency Response
2.500 - 18.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Tweeter Material
Alluminio e Neodimio

GRANDIOSO CF25T - 25 mm tweeter

Features:

Nominal impedance: 4Ω
RMS Power (filtered 12dB 6000hz): 100W
RMS Power (filtered 12dB 3500hz): 60W
Voice coil diameter Ø: 26mm
Sensitivity: 90dB
Frequency response: 2.500Hz - 18.000Hz
Fs: 1.500Hz

Thanks to the Composite Frame Technology ( CFT ) the Grandioso Sinfoni series, which includes the CF165W, has a mechanical structure able to dampen the distortions created by the vibrating speaker system, using a specific software for the development of alloy wheel to drastically reduce turbulence under the cone .


For the realization of the CF25T the best materials available on the market were used without any compromise, the structure of the frame is composed of 3 different aluminum components screwed together to counteract all mechanical vibrations, making the installation of the speakers and the subsequent tuning much easier.

The CF25T has a neodymium magnet with a higher thermal class to prevent any demagnetization over the years.

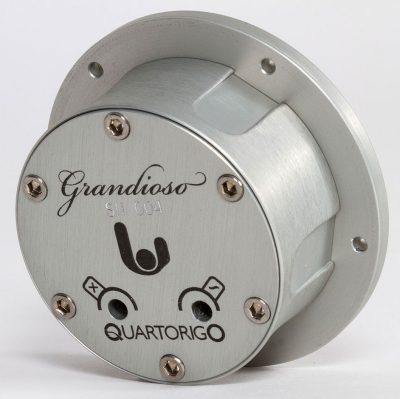

A final mention about the CF25T is due to its connectors placed in the frame, so as to protect the power cable from external agents and prevent any short circuits.

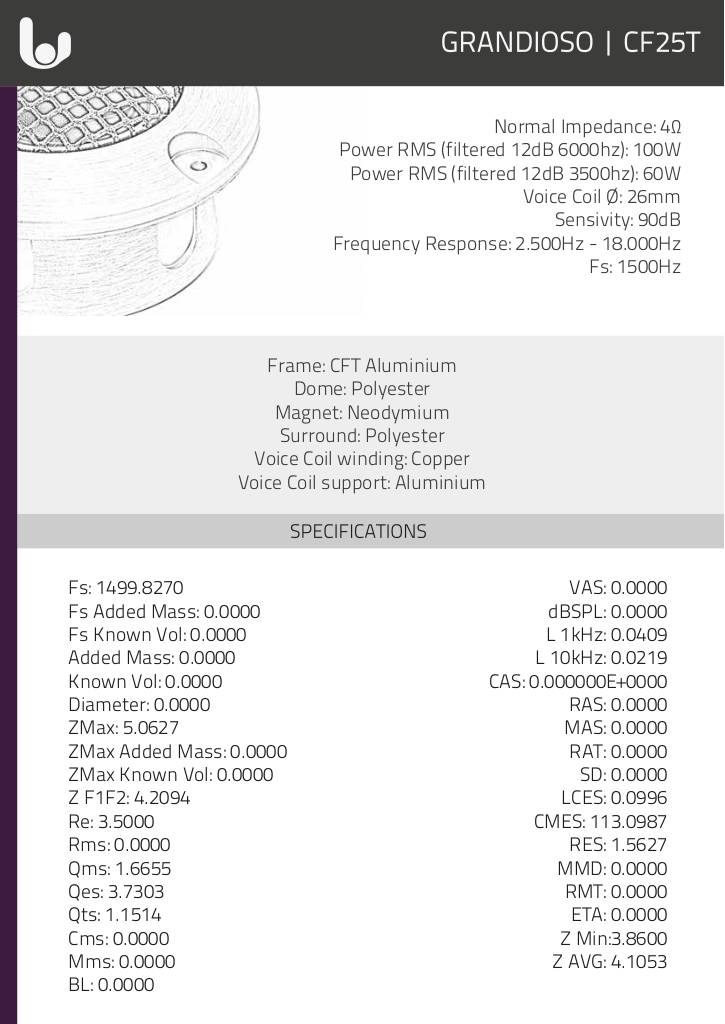

Scheda tecnica

20140123164853-cf25t.pdf
Discontinued
