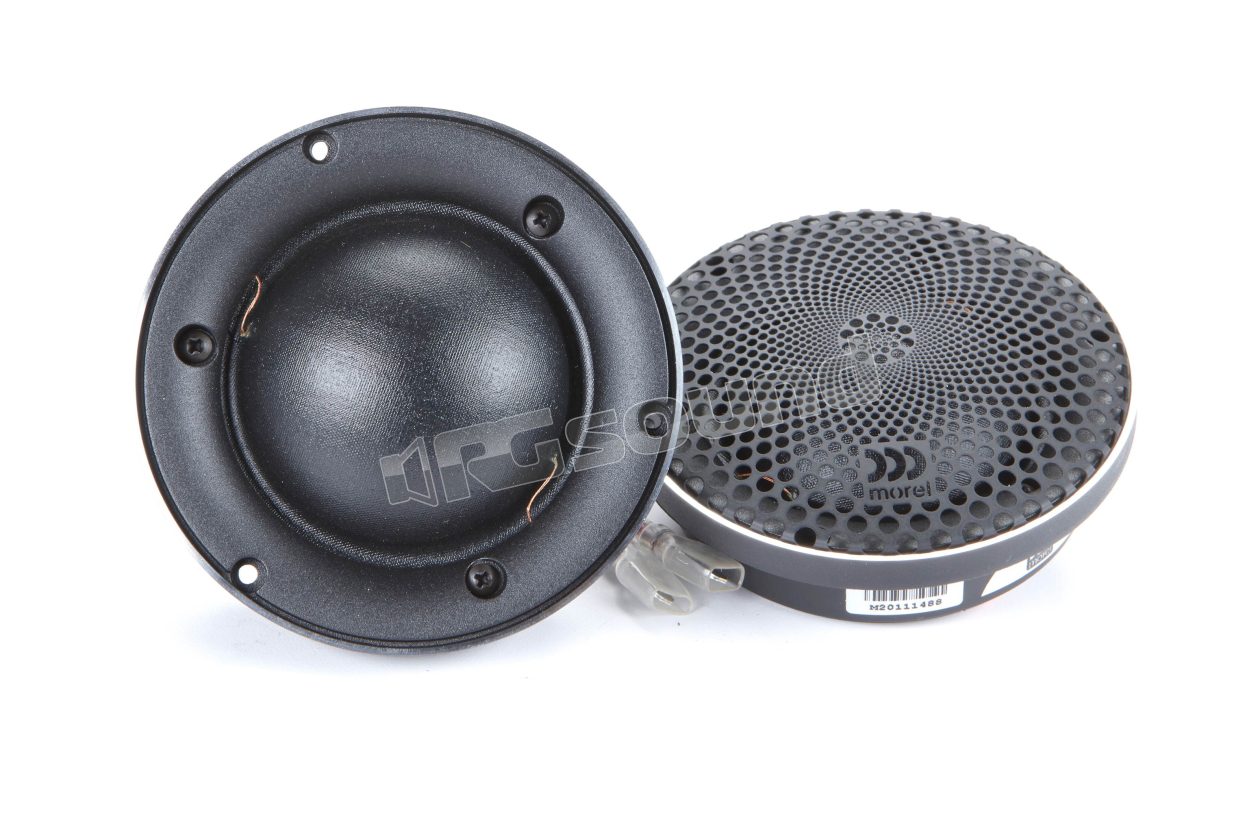

CDM700 Pair of 88mm soft dome midrange drivers

Morel
Your price:
€ 463,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to

Morel CDM700 Pair of 88mm (3.5") soft dome midrange

Pair of 2.1" midrange units equipped with Hexatech aluminum voice coil with extremely reduced mass, which allows very efficient cooling of the voice coil itself. The Neo magnet motor system, encapsulating the moving coil structure, forms a very large ventilation pole with a Morel C.A.R filter to create a very effective dampened rear chamber.

This type produces very low resonance frequencies, low distortion and high power handling. For their acoustic attributes and mechanical design, the CDM 700 midrange units can be easily installed in various points of the car. The Morel CDM700 are ideal for adding high quality reproduction of mid frequencies to your Car Hi-Fi system.

Grilles included in the package.

Scheda tecnica

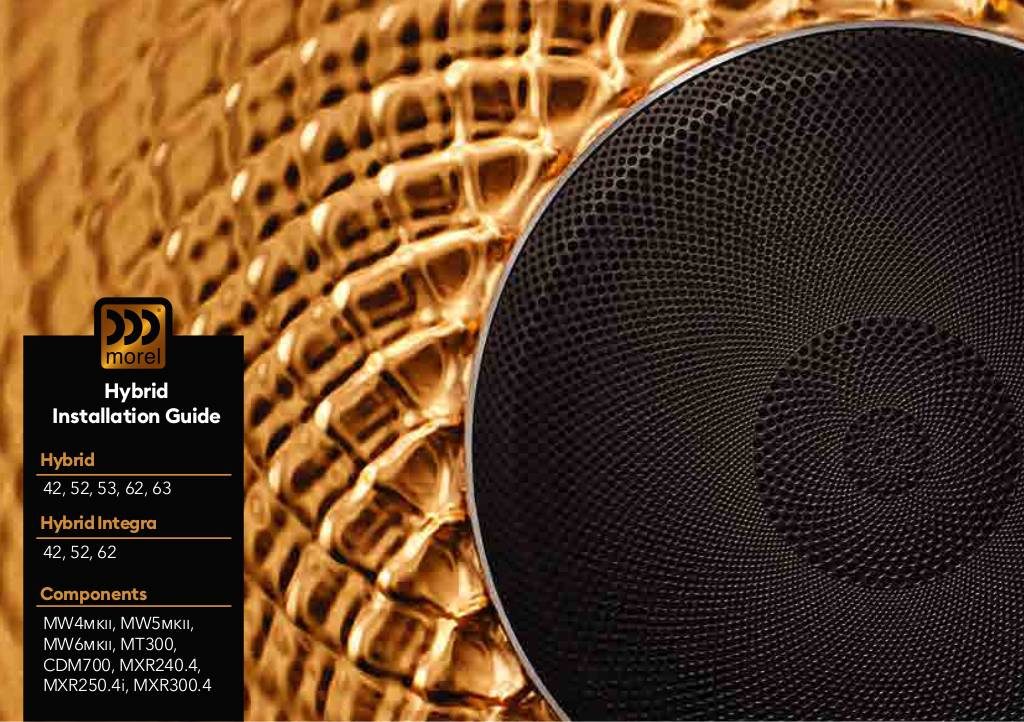

n-20210624151847-hybrid-new-manual.pdf

Morel CDM700 technical specifications

  • Nominal impedance (ohm) 8
  • Power handling 100 Watt rms
  • Maximum power (10ms) 300 watt
  • Sensitivity (2.83 V/1 M) dB 90
  • Frequency response Hz 600-6000
  • FS Hz 480
  • Voice coil diameter mm (inches) 54 (2.125")
  • Voice Coil Ex aluminum
  • Voice coil wire Hexatech™ aluminum
  • DC resistance ohm 3.5
  • Neodymium magnetic system with rear ventilation
  • Soft dome selected dome type
  • Dome material Silk
  • Unit diameter 88.00 mm (3.50")
  • Mounting depth 21.00 mm (0.83")
  • Mounting opening 75.50 mm (2.97")
  • Net weight Kg 0.25
€ 463,00 Price incl. VAT
