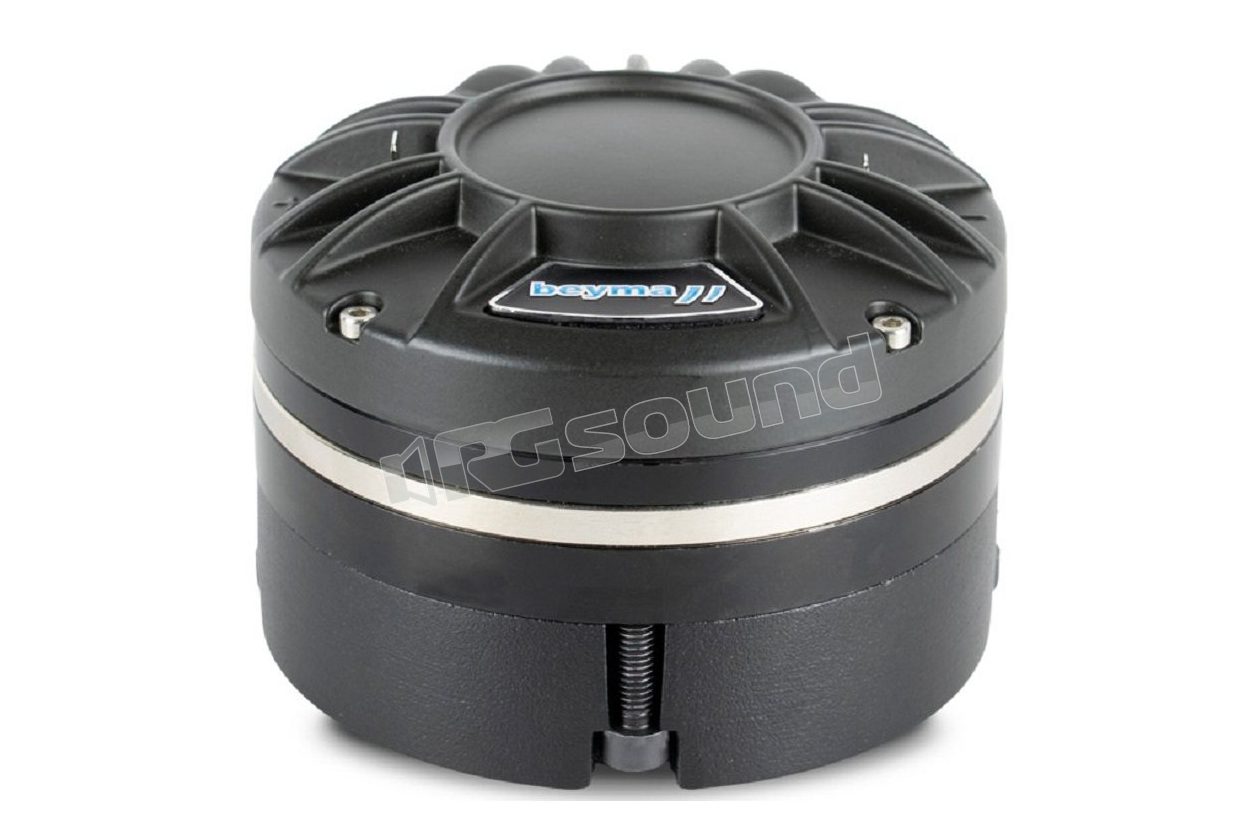

CD-320ND/TI 2" 8ohm 110dB Neodymium Compression Driver

Beyma
Your price:
€ 249,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Beyma CD-320ND/TI 2" 8ohm 110dB Neodymium Compression Driver

Next generation high performance compression driver with 2" (50.8 mm) output

CD-320ND/TI Features

  • Deplocex® Technology (patent pending) for improved
  • heat dissipation, low compression losses at low power and
  • high rated power
  • 3" (76.2 mm) aluminum voice coil copper coated with
  • Nomex surround
  • Program power 260 W above 1.2 kHz
  • Sensitivity: 110 dB (1 W / 1 m)

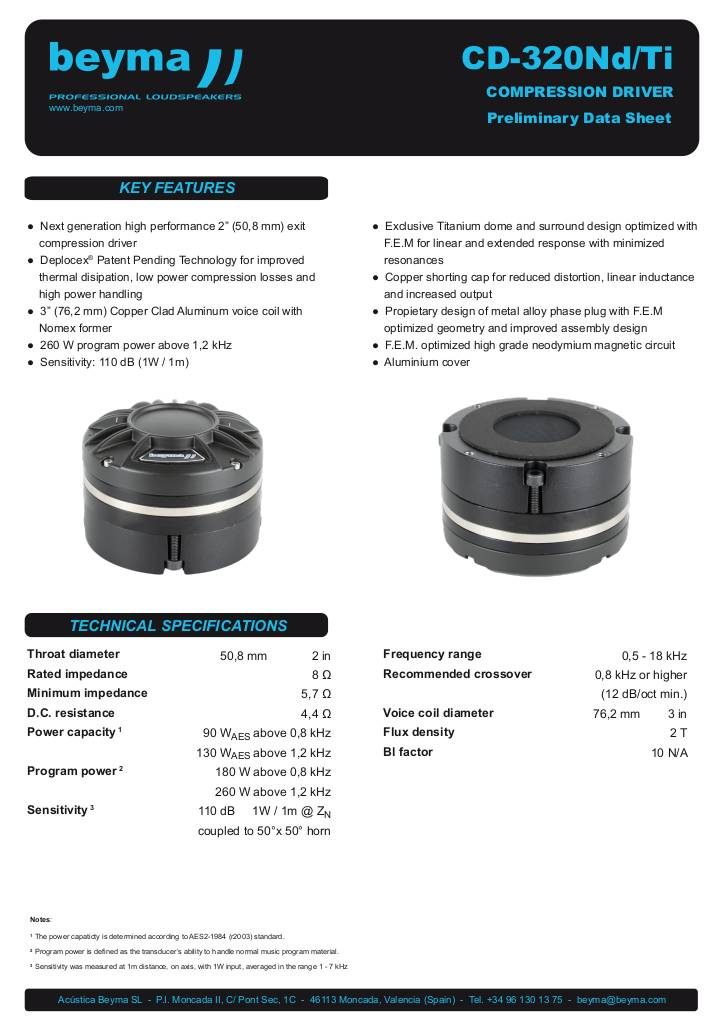

Scheda tecnica

n-20260623101857-cd-320nd-ti.pdf

Beyma CD-320ND/TI Technical Specifications

  • Throat diameter 50.8 mm
  • Nominal impedance 8 Ohm
  • Minimum impedance 5.7 ohm Re 4.4 ohm
  • Maximum power 130 W AES above 1.2 kHz
  • Program power 260 W above 1.2 kHz
  • Sensitivity 110 dB 1 W / 1 m @ ZN coupled to 50ºx50º horn
  • Frequency range 500-18,000 Hz
  • Recommended crossover frequency 800 Hz or higher (minimum slope of 12 dB/octave)
  • Voice coil diameter 76.2 mm 3 inches
  • Flux density 2 T
  • BL factor 10 N / A
  • Diaphragm material: titanium
  • External diameter: 112 mm
  • Depth: 78 mm
  • Mounting: four M6 threaded holes, spaced 90º on a 101.6 mm (4 inches) diameter circle.
  • Net weight: 2 kg
  • Total weight: 2.2 kg
  • Magnet: neodymium
€ 249,00 Price incl. VAT
