CD-320FE/TI 2" 8ohm 110dB Ferrite Compression Driver

Beyma
Your price:
€ 233,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

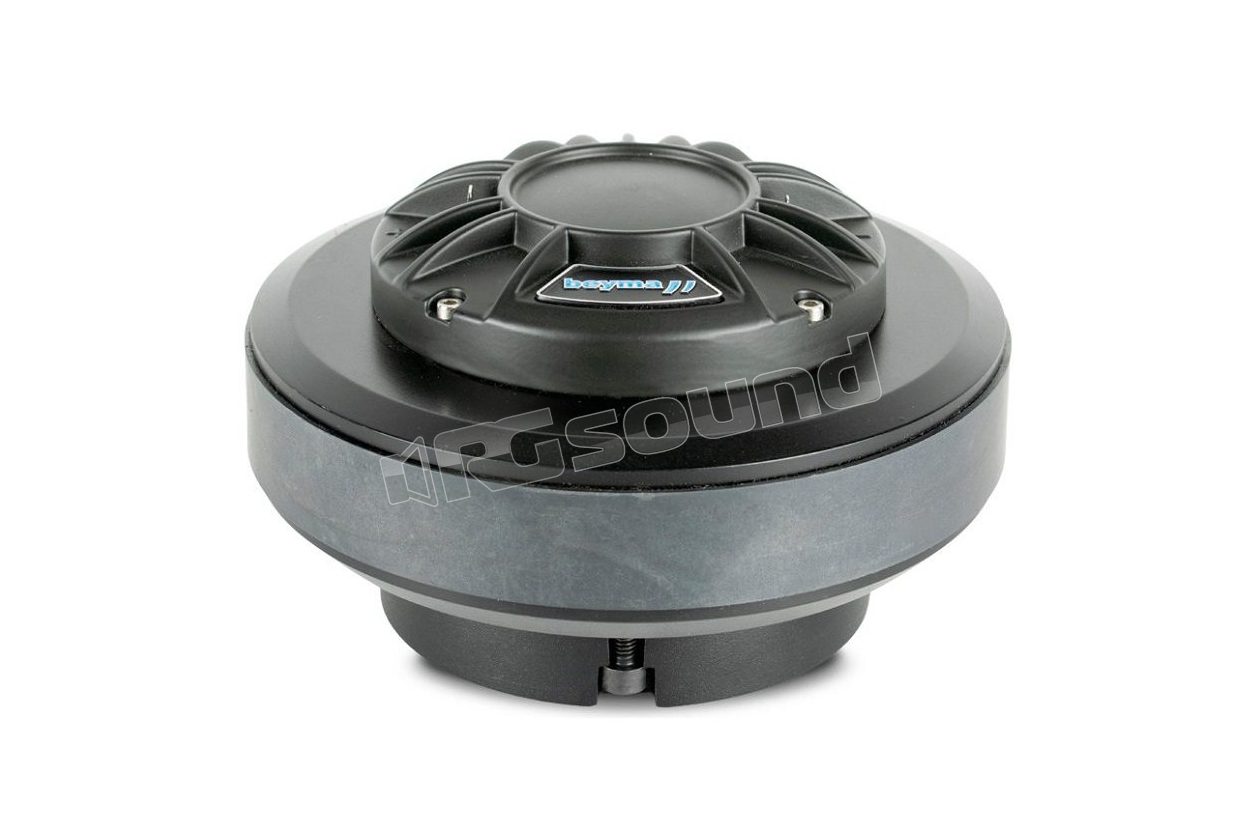

Beyma CD-320FE/TI 2" 8ohm 110dB Ferrite Compression Driver

Next-generation high-performance compression driver with 2" (50.8 mm) output


CD-320FE/TI Features

  • Deplocex® Technology (patent pending) for improved
  • heat dissipation, low compression losses at low power and
  • high rated power
  • 3" (76.2 mm) aluminum voice coil with copper coating and Nomex layer
  • Program power of 260 W above 1.2 kHz
  • Sensitivity: 110 dB (1 W / 1 m)

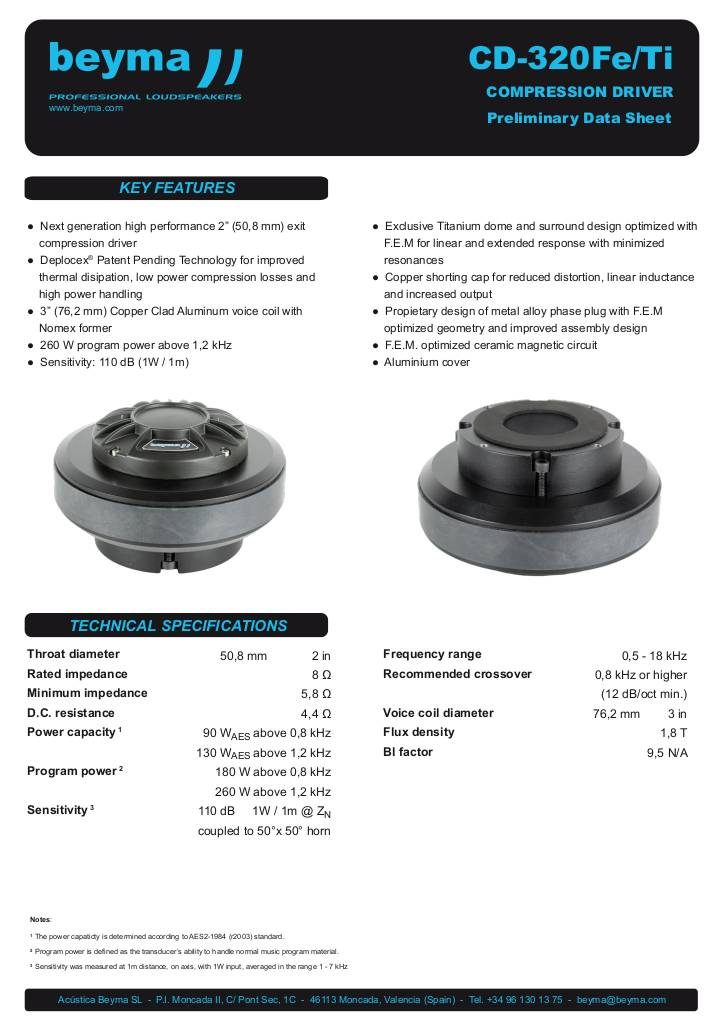

Scheda tecnica

n-20260623102244-cd-320fe-ti.pdf

Beyma CD-320FE/TI Technical Specifications

  • Rated impedance 8 Ohm
  • Throat diameter 50.8 mm
  • Minimum impedance 5.8 ohm Re 4.4 ohm
  • Maximum power 130 W AES above 1.2 kHz
  • Program power 260 W above 1.2 kHz
  • Sensitivity 110 dB 1 W / 1 m @ ZN coupled to 50ºx50º horn
  • Frequency range 500-18,000 Hz
  • Recommended crossover frequency 800 Hz or higher (minimum slope 12 dB/oct.)
  • Voice coil diameter 76.2 mm
  • Flux density 1.8 T
  • BL factor 9.5 N/A
  • Diaphragm material: titanium
  • External diameter: 165 mm (6.5 inches)
  • Depth: 97 mm (3.8 inches)
  • Mounting: four M6 threaded holes, spaced 90° on
  • a circle of 101.6 mm (4 inches) diameter.
  • Net weight: 5.8 kg
  • Total weight: 6 kg
  • Magnet: ferrite
€ 233,00 Price incl. VAT
