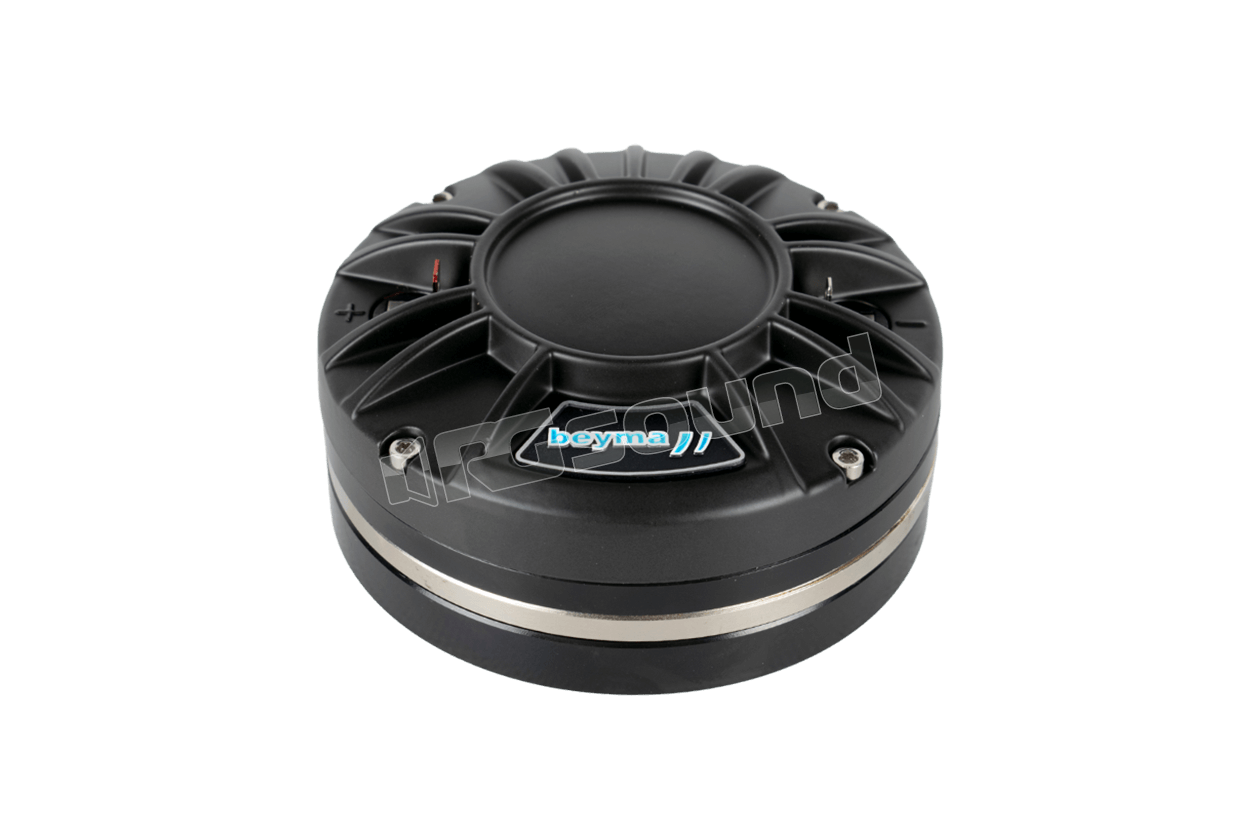

CD-314Nd/Ti Compression driver with Neodymium magnet

Beyma
Your price:
€ 300,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
Other sizes
MAX Power
260 Watt
RMS Power
180 Watt
Frequency Response
600 - 20000 Hertz
Sensitivity
110 dB
Impedance
8 Ohm
Weight
1,8 Kg
Installation Depth
50,6 mm
Voice Coil Diameter
76 mm

Beyma CD-314Nd/Ti Compression Driver with Neodymium Magnet

The CD-314Nd/Ti is designed for applications in high-quality audio systems where very high SPL and minimal distortion are essential. The loudspeakers feature a 1.4" exit throat and a 3" voice coil diameter. Equipped with Neodymium Magnet with the latest DEPLOCEX technology by Beyma they are more efficient and more resistant to power compression phenomenon. The Titanium dome thanks to its physical characteristics of density, rigidity and modulus of elasticity is able to achieve extended frequency response, increasing efficiency, all with high sensitivity. The neodymium magnet version allows to improve performance and reduce weight and overall dimensions of the set, obtaining a loudspeaker that truly facilitates array configurations.

CD-314Nd/Ti Features

  • High-performance 1.4" (36 mm) next-generation compression output with 1.4" output
  • Deplocex® pending patent technology for better thermal dissipation, low power losses in compression and high power handling
  • 3" (76.2 mm) aluminum voice coil covered in copper with Nomex
  • Program power of 260 W above 1.2 kHz
  • Sensitivity: 110 dB (1W / 1m)
  • Exclusive titanium dome and optimized surround design with
  • F.E.M for linear and extended response with resonances minimized.
  • Copper shorting cap for reduced distortion, linear inductance and increased output
  • Exclusive phase plug connector design in metal alloy with F.E.M. optimized geometry and improved assembly design
  • High-quality neodymium magnetic circuit optimized F.E.M.
  • Aluminum cover

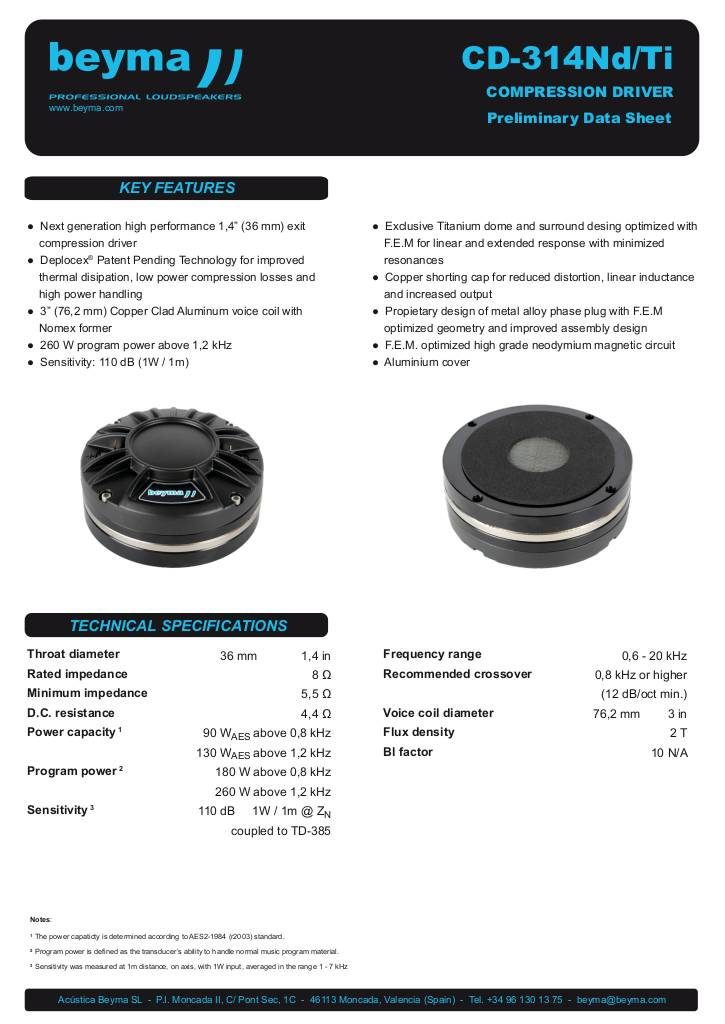

Scheda Tecnica

n-20230725173900-cd-314nd-8-oh.pdf

Beyma CD-314Nd/Ti Technical Specifications

  • Throat diameter 36 mm 1.4 in
  • Nominal impedance 8 Ω
  • Minimum impedance 5.5 Ω
  • D.C. resistance 4.4 Ω
  • Power capacity
    • 90 WAES above 0.8 kHz
    • 130 WAES above 1.2 kHz
  • Program power
    • 180 W above 0.8 kHz
    • 260 W above 1.2 kHz
  • Sensitivity 110 dB 1W / 1m @ ZN coupled to TD-385
  • Frequency range 0.6 - 20 kHz
  • Recommended crossover 0.8 kHz or above (12 dB/oct min.)
  • Voice coil diameter 76.2 mm 3 in
  • Flux density 2 T
  • Bl factor 10 N/A
€ 300,00 Price incl. VAT
