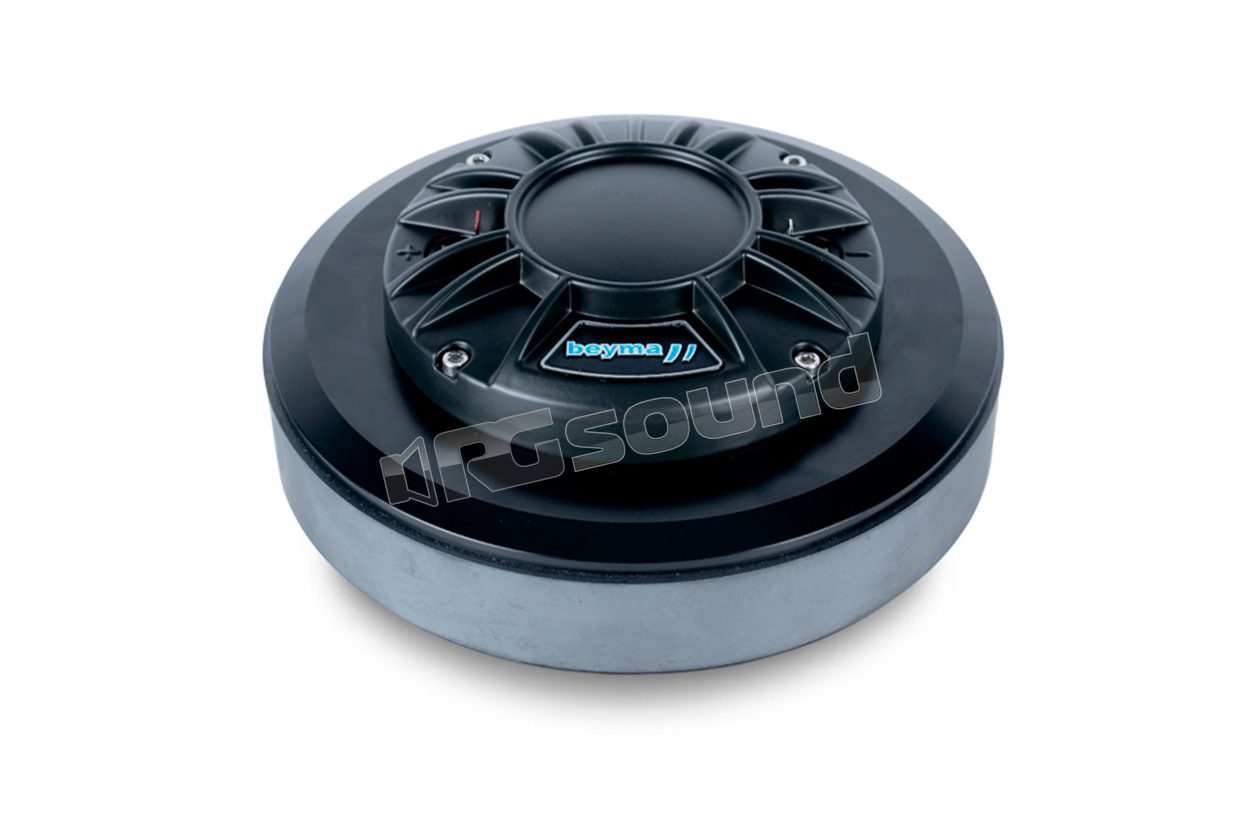

CD-314Fe/Ti Compression driver with Ferrite magnet

Beyma
Your price:
€ 230,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
Other sizes
MAX Power
90 Watt
RMS Power
180 Watt
Frequency Response
600 - 20000 Hertz
Sensitivity
109 dB
Impedance
8 Ohm
Voice Coil Diameter
36 mm

Beyma CD-314Fe/Ti Compression Driver with Ferrite Magnet

The CD-314Fe/Ti is designed for applications in high quality audio systems where very high SPL and minimal distortion are essential. The speakers feature a 1.4" exit throat and a 3" voice coil diameter. Equipped with Ferrite magnet with Beyma's newest DEPLOCEX technology, they are more efficient and more resistant to power compression phenomena. The Titanium dome thanks to its physical characteristics of density, rigidity and modulus of elasticity is able to achieve extended frequency response, increasing efficiency, all with high sensitivity. The ferrite version for applications where weight and size are not as important can almost match its neodymium brother in terms of performance, while maintaining cost.

CD-314Fe/Ti Features

  • New generation high performance 1.4" (36 mm) compression output with 1.4" output
  • Patented pending Deplocex® technology for better heat dissipation, low power compression losses and high power handling
  • 3" (76.2 mm) mobile voice coil in aluminum copper-coated with Nomex
  • Program power 260 W above 1.2 kHz
  • Sensitivity: 109 dB (1W / 1m)
  • Exclusive titanium dome and optimized surround design with F.E.M for linear and extended response with minimized resonances.
  • Copper short circuit cap for reduced distortion, linear inductance and increased output
  • Exclusive metal alloy phase connector design with F.E.M. optimized geometry and improved assembly design
  • F.E.M. optimized ceramic magnetic circuit.
  • Aluminum cover

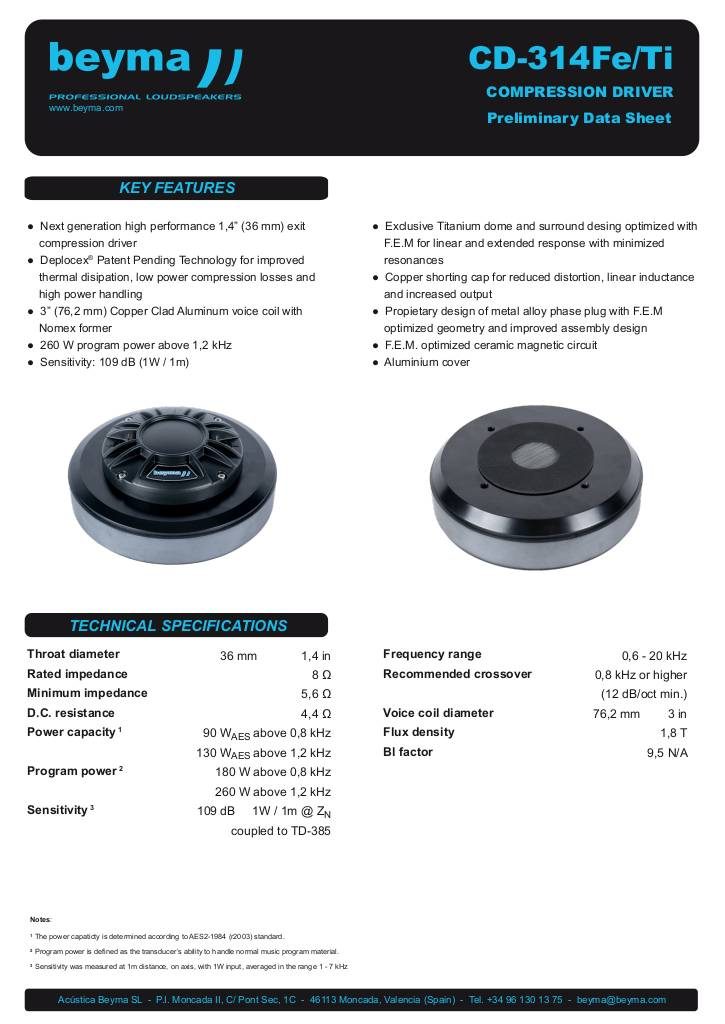

Scheda Tecnica

n-20230725142013-cd-314fe-8-oh.pdf

Beyma CD-314Fe/Ti Technical Specifications

  • Throat diameter 36 mm 1.4 in
  • Nominal impedance 8 Ω
  • Minimum impedance 5.6 Ω
  • D.C. resistance 4.4 Ω
  • Power capacity
    • 90 WAES above 0.8 kHz
    • 130 WAES above 1.2 kHz
  • Program power
    • 180 W above 0.8 kHz
    • 260 W above 1.2 kHz
  • Sensitivity 109 dB 1W / 1m @
  • Frequency range 0.6 - 20 kHz
  • Recommended crossover 0.8 kHz or higher (12 dB/oct min.)
  • Mobile voice coil diameter 76.2 mm 3 in
  • Flux density 1.8 T
  • Bl factor 9.5 N/A
€ 230,00 Price incl. VAT
