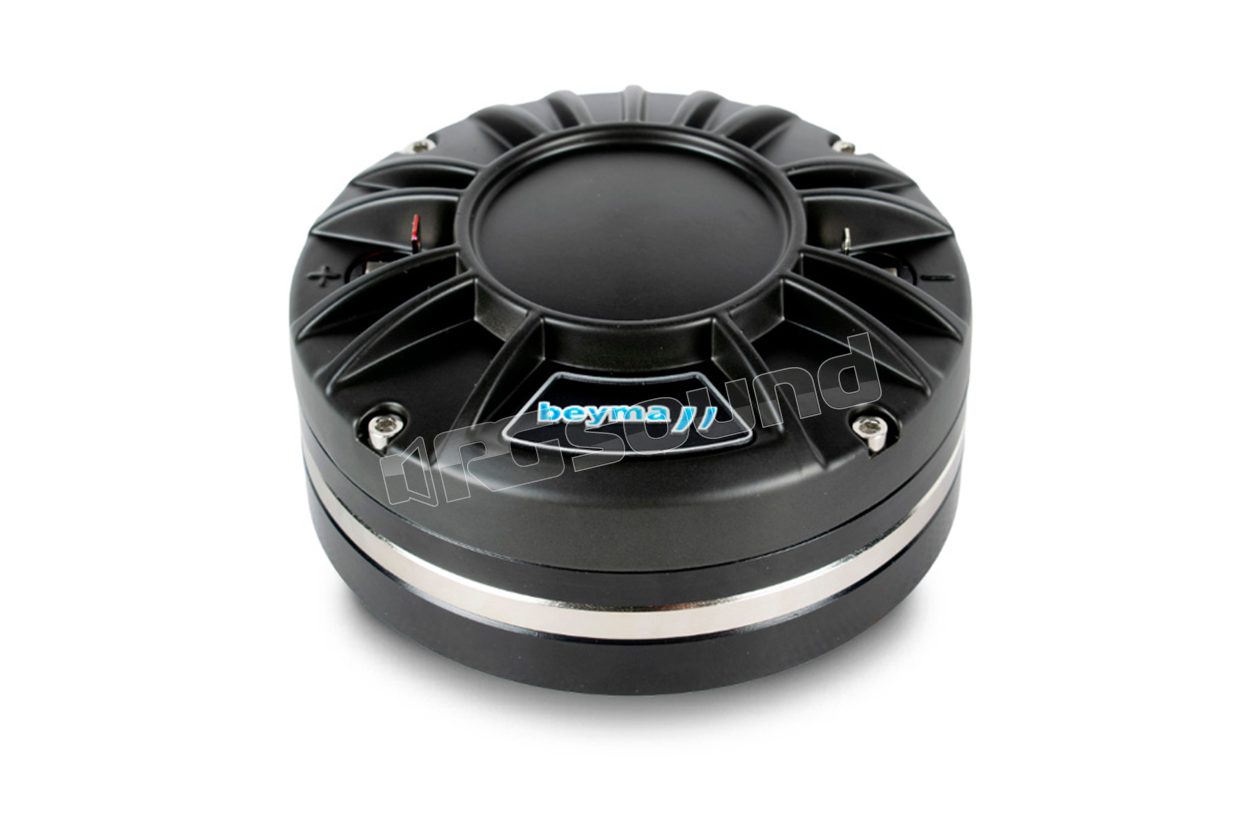

CD-2514Nd/Ti Compression driver with Titanium dome

Beyma
Your price:
€ 265,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
Other sizes
MAX Power
160 Watt
RMS Power
80 Watt
Frequency Response
600 - 20000 Hertz
Sensitivity
108,5 dB
Impedance
8 Ohm
Voice Coil Diameter
36 mm

Beyma CD2514Nd/Ti Compression Driver with Titanium Dome

The CD2514Nd/Ti is designed for applications in high-quality audio systems where very high SPL and minimal distortion are essential. The speakers have a 1.4 inch throat outlet and a 2.5 inch voice coil diameter. Equipped with a Neodymium magnet and a Titanium dome, thanks to Beyma's newest DEPLOCEX technology they are more efficient and more resistant to power compression. Titanium is very linear with a slight roll-off towards high frequencies.

CD2514Nd/Ti Features

  • Next generation high-performance compression driver with 1.4" (36 mm) output. compression from 1.4" (36 mm)
  • Deplocex® technology patent pending for better heat dissipation, low heat dissipation losses, low power compression losses and high power handling
  • 2.5" (63.5 mm) mobile voice coil in aluminum coated with copper and Nomex
  • Program power of 200 W above 1.2 kHz
  • Sensitivity: 108.5 dB (1W / 1m)
  • Exclusive titanium dome and optimized surround design with F.E.M for linear and extended response with minimized resonances.
  • Copper shorting cap for reduced distortion, linear inductance and increased output.
  • Exclusive phase plug connector design in metal alloy with F.E.M. optimized geometry and improved assembly design
  • High-quality neodymium magnetic circuit optimized F.E.M.
  • Aluminum cover

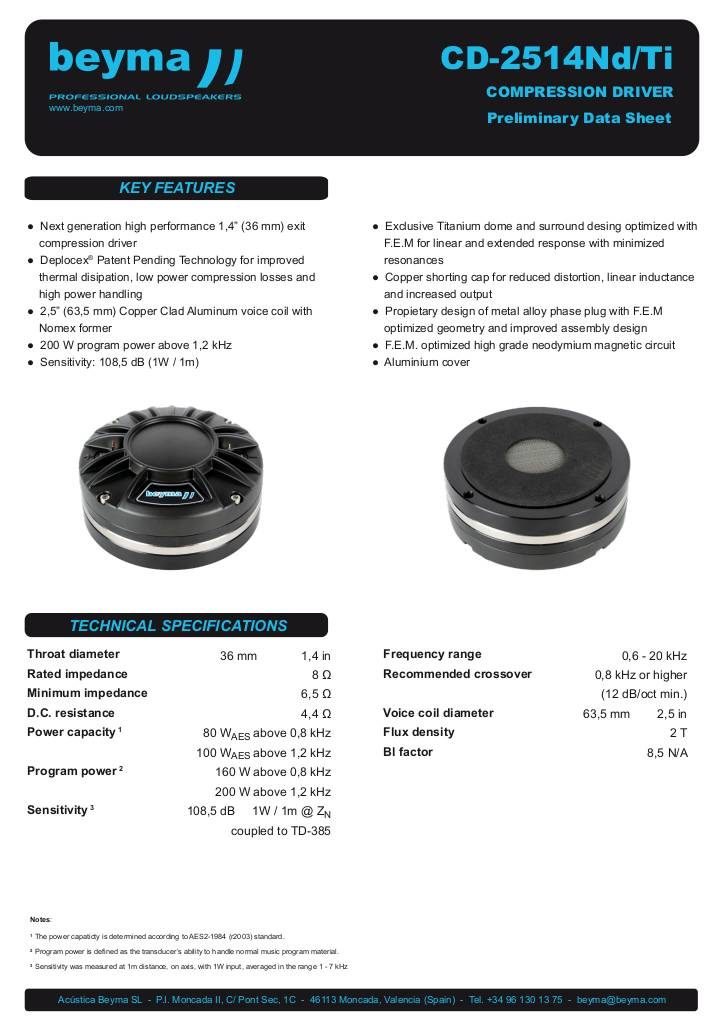

Scheda Tecnica

n-20230725121310-cd-2514nd-ti-8-oh.pdf

Beyma CD2514Nd/Ti Technical Specifications

  • Throat diameter 36 mm 1.4 in
  • Nominal impedance 8 Ω
  • Minimum impedance 6.5 Ω
  • D.C. resistance 4.4 Ω
  • Power capacity
    • 80 WAES above 0.8 kHz
    • 100 WAES above 1.2 kHz
  • Program power
    • 160 W above 0.8 kHz
    • 200 W above 1.2 kHz
  • Sensitivity 108.5 dB 1W / 1m @ ZN coupled to TD-385
  • Frequency range 0.6 - 20 kHz
  • Recommended crossover 0.8 kHz or higher (12 dB/oct min.)
  • Mobile voice coil diameter 63.5 mm 2.5 in
  • Flux density 2 T
  • Bl factor 8.5 N/A
€ 265,00 Price incl. VAT
