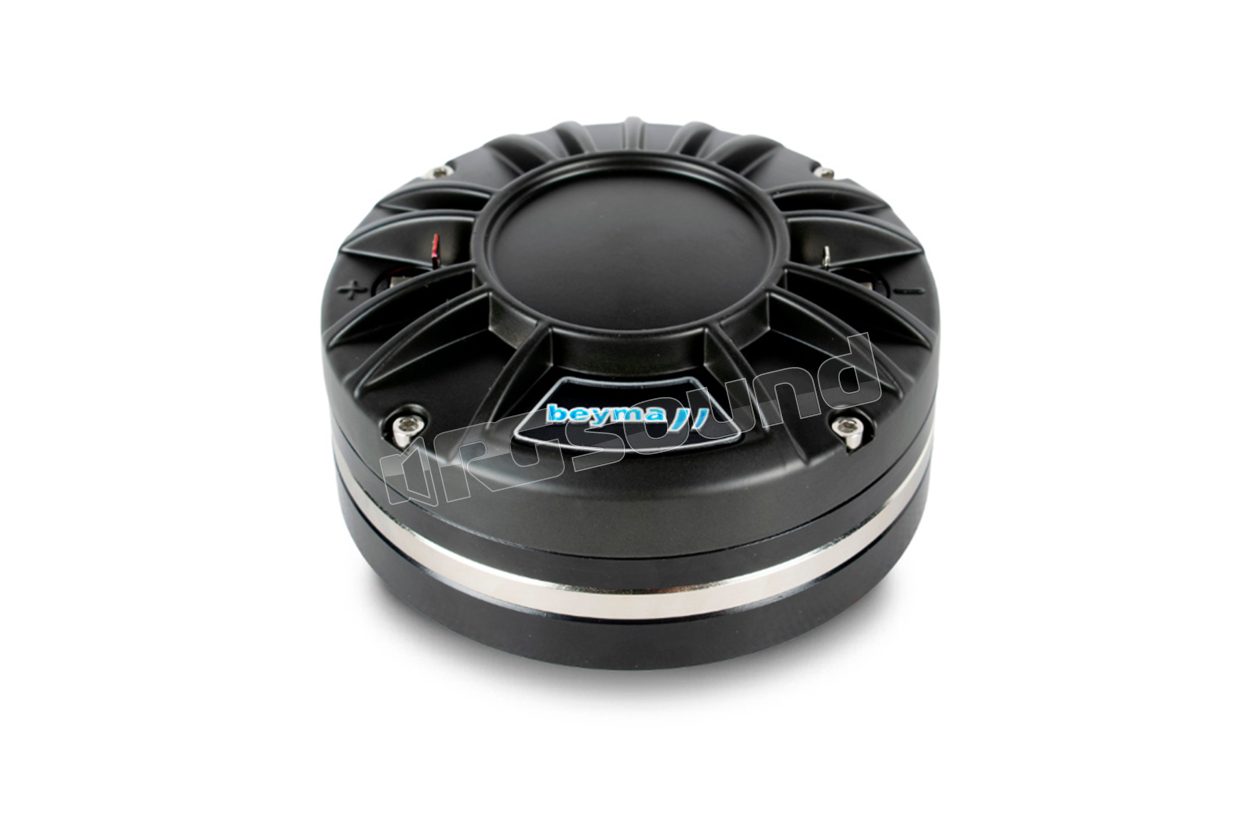

CD-2514Nd/PT Compression driver with advanced Polyester dome

Beyma
Your price:
€ 265,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
Other sizes
MAX Power
160 Watt
RMS Power
80 Watt
Frequency Response
600 - 20000 Hertz
Sensitivity
109 dB
Impedance
8 Ohm
Voice Coil Diameter
36 mm

Beyma CD2514Nd/PT Compression Driver with Advanced Polyester Dome

The CD2514Nd/PT is designed for applications in high-quality audio systems where very high SPL and minimal distortion are essential. The loudspeakers have an output throat of 1.4 inches and a voice coil diameter of 2.5 inches. Equipped with a Neodymium magnet and an advanced Polyester dome, thanks to the latest DEPLOCEX technology by Beyma, they are more efficient and more resistant to the power compression phenomenon. Polyester, with a lower elasticity modulus, has a softer response with an improvement starting from 15 kHz that provides a pleasant sense of air in the sound of the speakers.

CD2514Nd/PT Features

  • High-performance output from 1.4" (36 mm) new generation compression with 1.4 output
  • Deplocex® patent-pending technology for better
  • thermal dissipation, low power losses in compression and high power handling
  • 2.5" (63.5 mm) aluminum voice coil coated with copper and Nomex
  • Program power of 200 W above 1.2 kHz
  • Sensitivity: 109 dB (1W / 1m)
  • Exclusive advanced polyester dome and optimized surround design with F.E.M. for linear and extended response with minimized resonances
  • Copper shorting cap to reduce distortion, linear inductance and increase output.
  • Exclusive phase plug connector design in metal alloy with F.E.M. optimized geometry and improved assembly design
  • High-quality neodymium magnetic circuit optimized F.E.M.
  • Aluminum cover

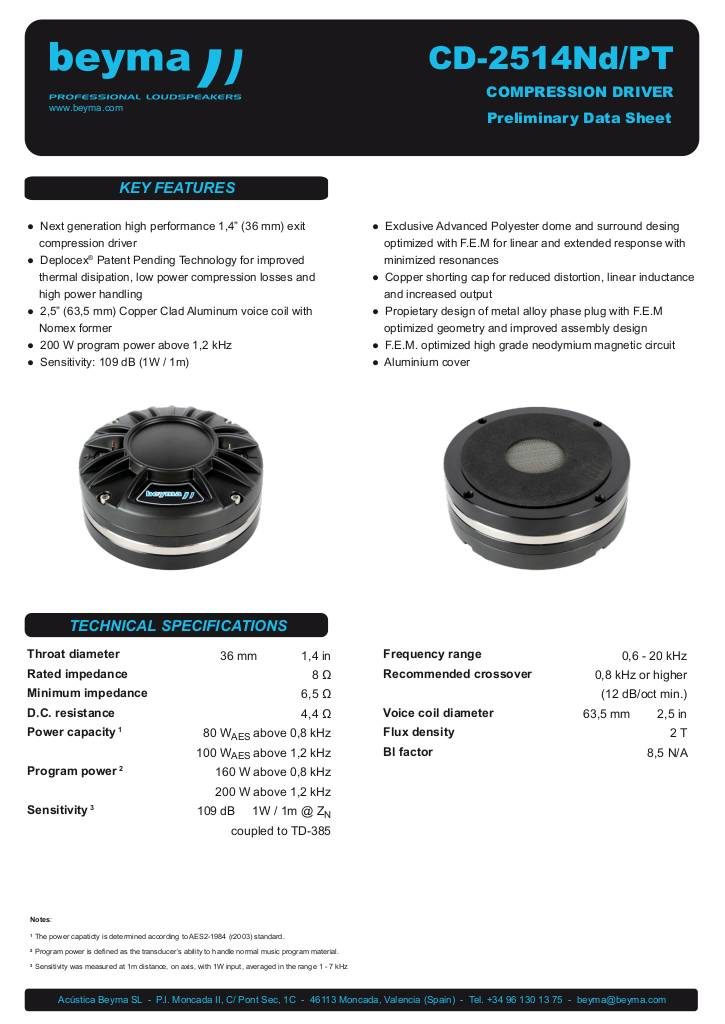

Scheda Tecnica

n-20230725113621-cd-2514nd-pt-8-oh.pdf

Beyma CD2514Nd/PT Technical Specifications

  • Throat diameter 36 mm 1.4 in
  • Nominal impedance 8 Ω
  • Minimum impedance 6.5 Ω
  • D.C. resistance 4.4 Ω
  • Power capacity
    • 80 WAES above 0.8 kHz
    • 100 WAES above 1.2 kHz
  • Program power
    • 160 W above 0.8 kHz
    • 200 W above 1.2 kHz
  • Sensitivity 109 dB 1W / 1m @ ZN coupled to TD-385
  • Frequency range 0.6 - 20 kHz
  • Recommended crossover 0.8 kHz or higher (12 dB/oct min.)
  • Voice coil diameter 63.5 mm 2.5 in
  • Flux density 2 T
  • Bl factor 8.5 N/A
€ 265,00 Price incl. VAT
