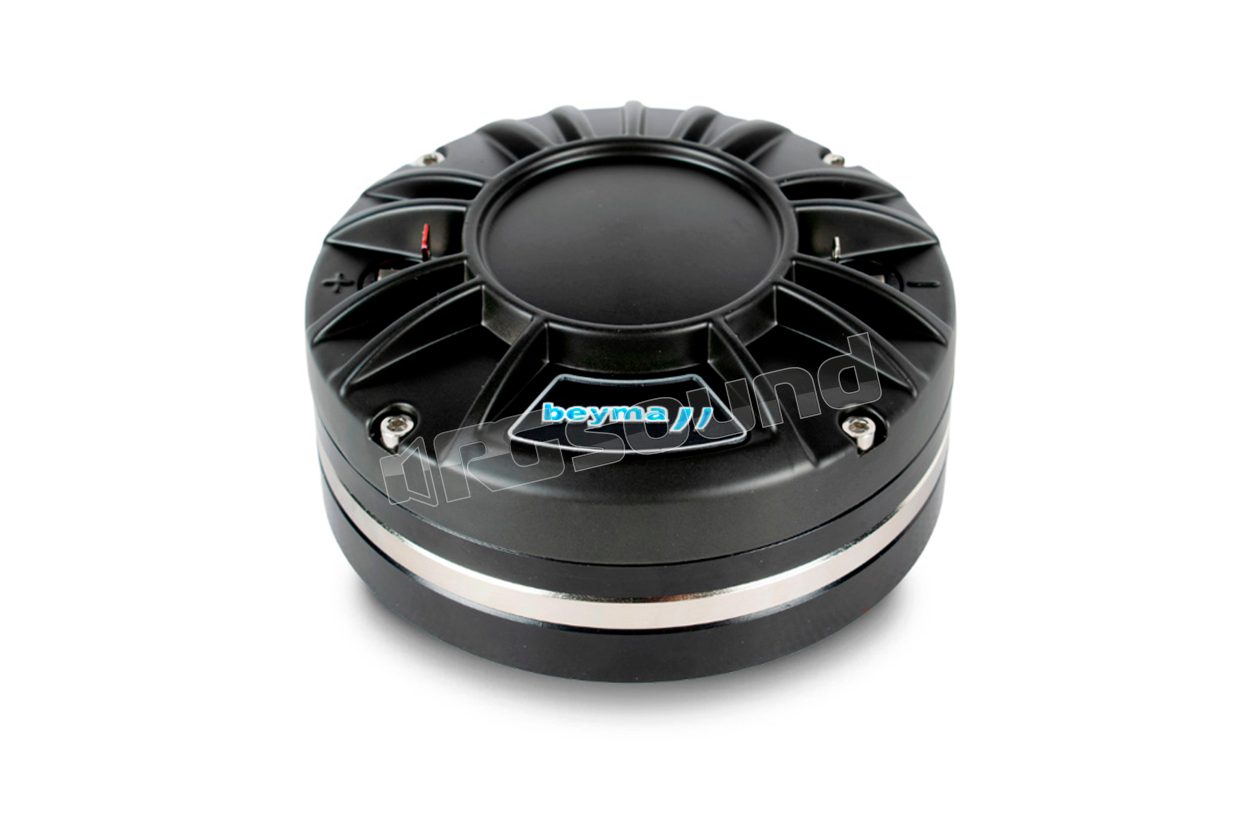

CD-2514Nd/PK Compression driver with high-temperature Polymer dome

Beyma
Your price:
€ 265,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
100 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
600 - 20000 Hertz
Sensitivity
109 dB
Impedance
8 Ohm
Weight
1,8 Kg
Installation Depth
54,7 mm
Voice Coil Diameter
63,5 mm

Beyma CD2514Nd/PK Compression Driver with High Temperature Polymer Dome

The CD2514Nd/PK is designed for applications in high quality audio systems where very high SPL and minimal distortion are essential. The speakers have an output throat of 1.4 inches and a voice coil diameter of 2.5 inches. Equipped with a Neodymium magnet and a high temperature Polymer dome, thanks to the latest DEPLOCEX technology by Beyma they are more efficient and more resistant to the power compression phenomenon. The high temperature polymer has higher sensitivity at 5KHz and above, providing that presence necessary for long throw systems or reverberant environments.

CD2514Nd/PK Features

  • New generation high performance 1.4" (36 mm) compression output with 1.4 output
  • Patent pending Deplocex® technology for better thermal dissipation, low power loss in compression and high power handling
  • 2.5" (63.5 mm) aluminum voice coil with Nomex copper coating
  • Program power of 200 W above 1.2 kHz
  • Sensitivity: 109.5 dB (1W / 1m)
  • Dome and surround exclusive in high temperature polymer optimized with F.E.M for linear and extended response with minimal resonances
  • Copper shorting cap to reduce distortion, linear inductance and increase output.
  • Exclusive phase plug connector design in alloy with F.E.M. optimized geometry and improved assembly design
  • High quality neodymium magnetic circuit optimized F.E.M.
  • Aluminum cover

Scheda Tecnica

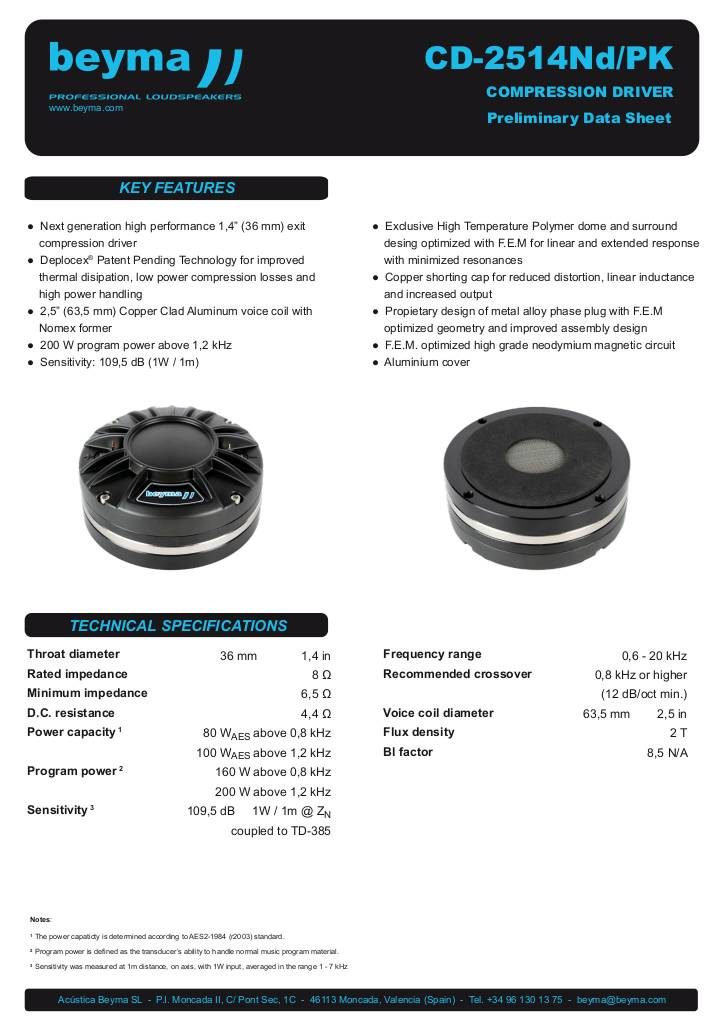

n-20230725113752-cd-2514nd-pk-8-oh.pdf

Beyma CD2514Nd/PK Technical Specifications

  • Throat diameter 36 mm 1.4 in
  • Nominal impedance 8 Ω
  • Minimum impedance 6.5 Ω
  • D.C. resistance 4.4 Ω
  • Power capacity
    • 80 WAES above 0.8 kHz
    • 100 WAES above 1.2 kHz
  • Program power
    • 160 W above 0.8 kHz
    • 200 W above 1.2 kHz
  • Sensitivity 109.5 dB 1W / 1m @ ZN coupled to TD-385
  • Frequency range 0.6 - 20 kHz
  • Recommended crossover 0.8 kHz or above (12 dB/oct min.)
  • Voice coil diameter 63.5 mm 2.5 in
  • Flux density 2 T
  • Bl factor 8.5 N/A
