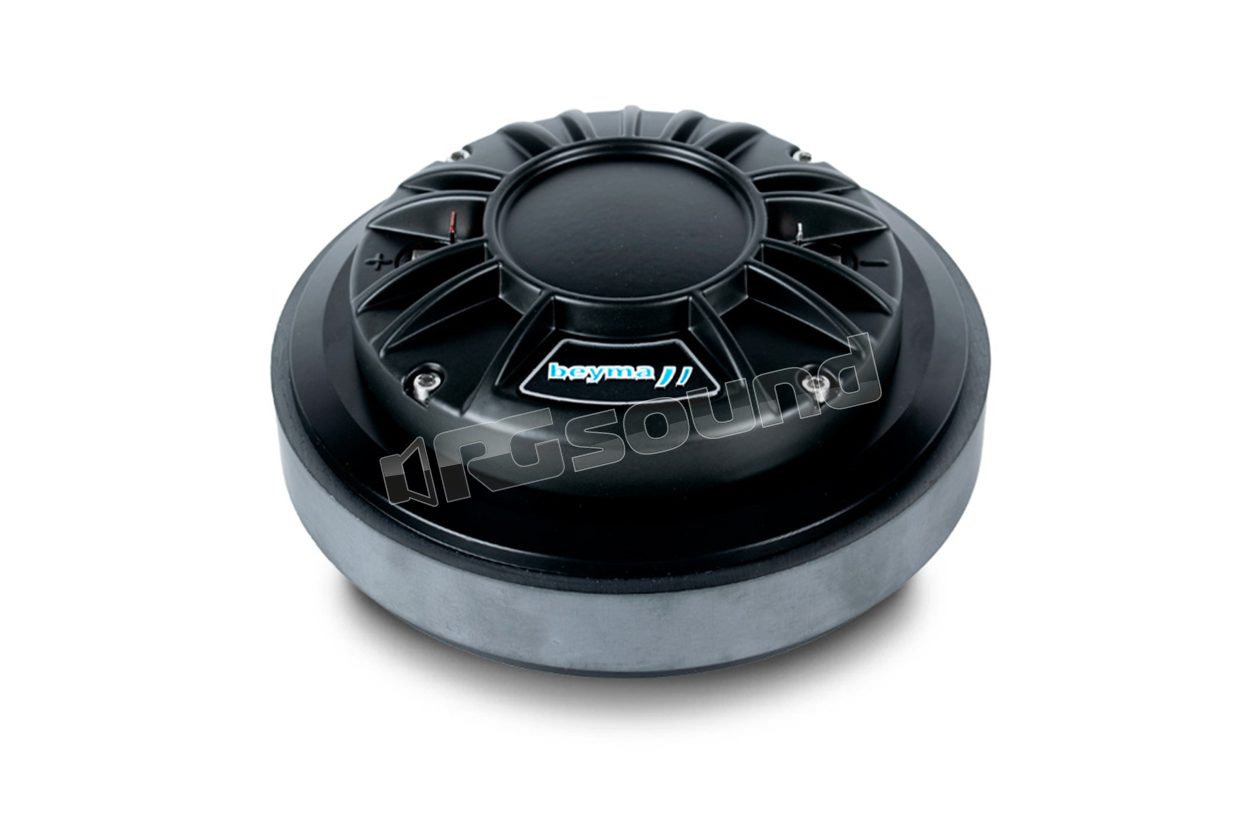

CD-2514Fe/Ti Compression driver with Titanium dome

Beyma
Your price:
€ 176,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
Other sizes
MAX Power
160 Watt
RMS Power
80 Watt
Frequency Response
600 - 20000 Hertz
Sensitivity
108 dB
Impedance
8 Ohm
Voice Coil Diameter
36 mm

Beyma CD-2514Fe/Ti Compression Driver with Titanium Dome

The CD-2514Fe/Ti is designed for applications in high-quality audio systems where very high SPL and minimal distortion are fundamental. The loudspeakers have a 1.4 inch exit throat and a 2.5 inch voice coil diameter. Equipped with a Ferrite magnet and a Titanium dome, thanks to Beyma's latest DEPLOCEX technology, they are more efficient and more resistant to the power compression phenomenon. Titanium is very linear with a slight decay towards high frequencies.

CD-2514Fe/Ti Features

  • New generation 1.4" (36 mm) high-performance compression output with 1.4 inch output
  • Patent-pending Deplocex® technology for better thermal dissipation, low power loss in compression and high power handling
  • 2.5" (63.5 mm) aluminum voice coil coated with copper and Nomex
  • Program power of 200 W above 1.2 kHz
  • Sensitivity: 108 dB (1W / 1m)
  • Exclusive titanium dome and optimized surround design with F.E.M. for linear and extended response with resonances minimized.
  • Copper short-circuit cap for reduced distortion, linear inductance and increased output and increased output
  • Exclusive phase connector design in metal alloy with F.E.M. optimized geometry and improved assembly design
  • Optimized ceramic magnetic circuit F.E.M.
  • Aluminum cover

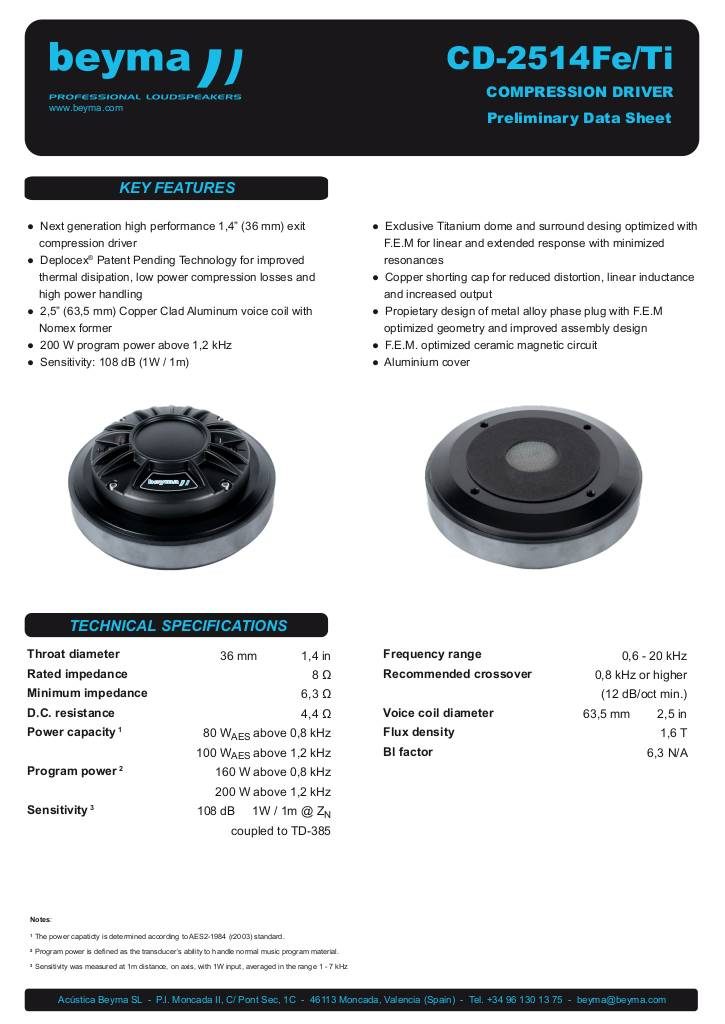

Scheda Tecnica

n-20230725110735-cd-2514fe-ti-8-oh.pdf

Beyma CD-2514Fe/Ti Technical Specifications

  • Throat diameter 36 mm 1.4 in
  • Nominal impedance 8 Ω
  • Minimum impedance 6.3 Ω
  • D.C. resistance 4.4 Ω
  • Power capacity
    • 80 WAES above 0.8 kHz
    • 100 WAES above 1.2 kHz
  • Program power
    • 160 W above 0.8 kHz
    • 200 W above 1.2 kHz
  • Sensitivity 108 dB 1W / 1m @ ZN coupled to TD-385
  • Frequency range 0.6 - 20 kHz
  • Recommended crossover 0.8 kHz or higher (12 dB/oct min.)
  • Voice coil diameter 63.5 mm 2.5 in
  • Flux density 1.6 T
  • Bl factor 6.3 N/A
€ 176,00 Price incl. VAT
