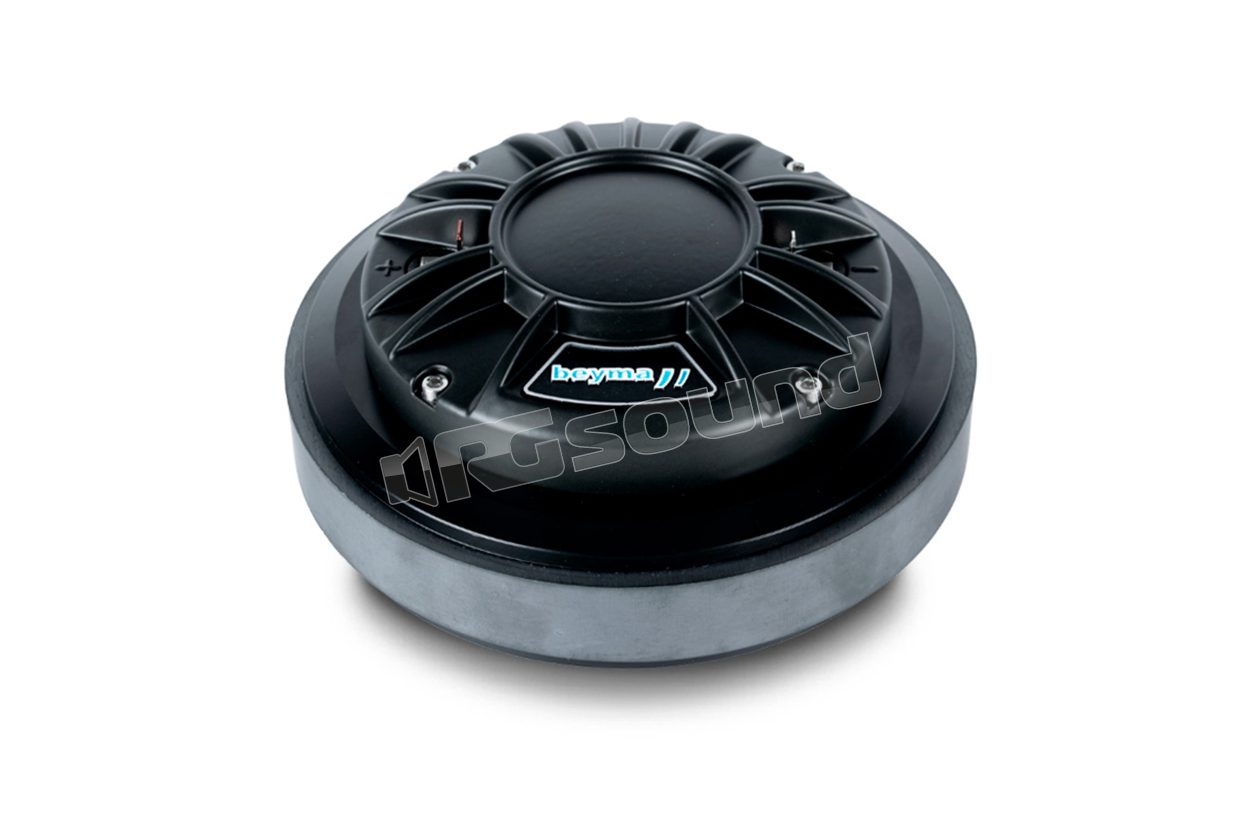

CD-2514Fe/PT Compression driver with advanced polyester dome

Beyma
Your price:
€ 176,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
Other sizes
MAX Power
160 Watt
RMS Power
80 Watt
Frequency Response
600 - 20000 Hertz
Sensitivity
108,5 dB
Impedance
8 Ohm
Voice Coil Diameter
36 mm

Beyma CD-2514Fe/PT Compression Driver with Advanced Polyester Dome

The CD-2514Fe/PT is designed for applications in high-quality audio systems where very high SPL and minimal distortion are essential. The speakers have a 1.4 inch exit throat and a 2.5 inch voice coil diameter. Equipped with a Ferrite magnet and an Advanced Polyester dome, thanks to the brand new DEPLOCEX technology by Beyma they are more efficient and more resistant to the power compression phenomenon. The polyester, with a lower modulus of elasticity, has a softer response with an improvement starting from 15KHz that provides a pleasant sense of air in the speaker sound.

CD-2514Fe/PT Features

  • New generation 1.4" (36 mm) high-performance compression output with 1.4 output
  • Patent-pending Deplocex® technology for better thermal dissipation, low power loss in compression and high power handling
  • 2.5" (63.5 mm) aluminum voice coil coated with copper with Nomex
  • Program power of 200 W above 1.2 kHz
  • Sensitivity: 108.5 dB (1W / 1m)
  • Exclusive dome and surround in advanced polyester optimized with F.E.M for linear and extended response with resonances minimized
  • Copper shorting cap to reduce distortion, linear inductance and increase output. and higher output
  • Exclusive phase plug connector design in metal alloy with F.E.M. optimized geometry and improved assembly design
  • F.E.M. optimized ceramic magnetic circuit
  • Aluminum cover

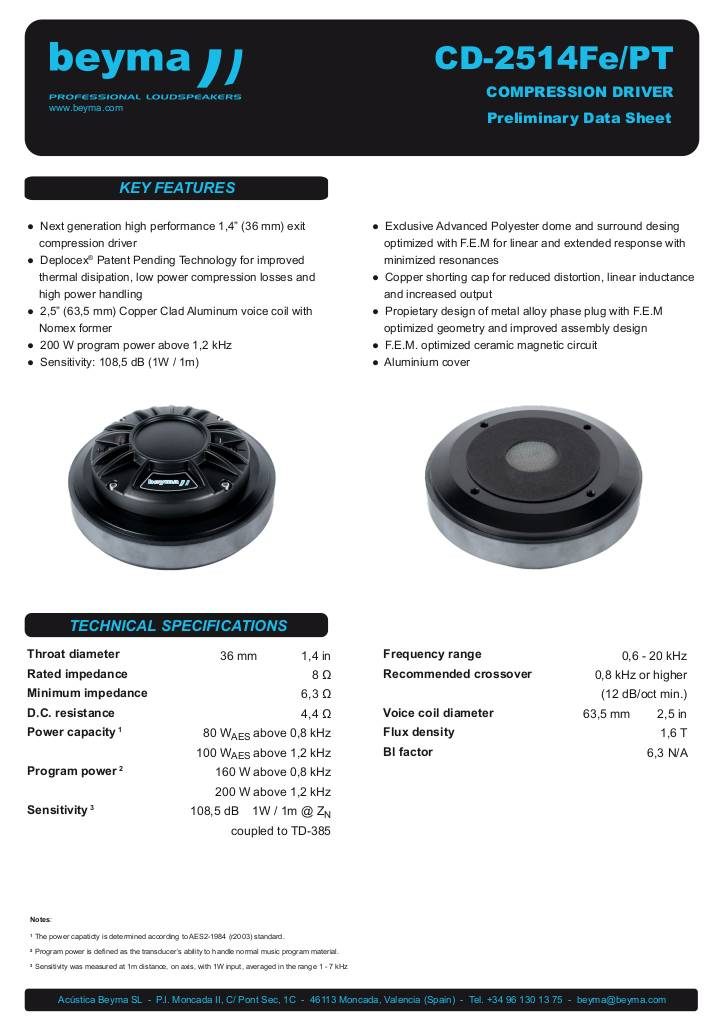

Scheda Tecnica

n-20230725110026-cd-2514fe-pt-8-oh.pdf

Beyma CD-2514Fe/PT Technical Specifications

  • Throat diameter 36 mm 1.4 in
  • Nominal impedance 8 Ω
  • Minimum impedance 6.3 Ω
  • D.C. resistance 4.4 Ω
  • Power capacity
    • 80 WAES above 0.8 kHz
    • 100 WAES above 1.2 kHz
  • Program power
    • 160 W above 0.8 kHz
    • 200 W above 1.2 kHz
  • Sensitivity 108.5 dB 1W / 1m @ ZN coupled to TD-385
  • Frequency range 0.6 - 20 kHz
  • Recommended crossover 0.8 kHz or higher (12 dB/oct min.)
  • Voice coil diameter 63.5 mm 2.5 in
  • Flux density 1.6 T
  • Bl factor 6.3 N/A
