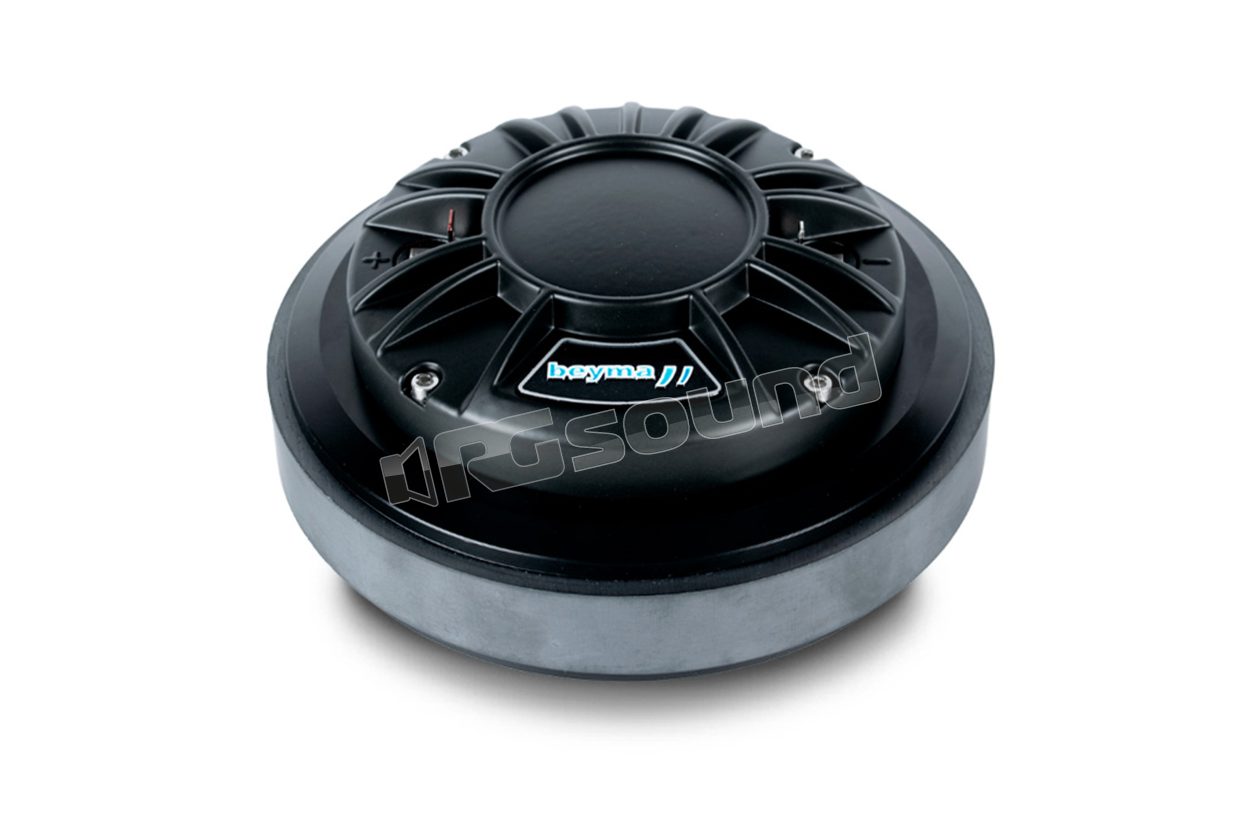

CD-2514Fe/PK Compression driver with high-temperature Polymer dome

Beyma
Your price:
€ 176,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
Other sizes
MAX Power
160 Watt
RMS Power
80 Watt
Frequency Response
600 - 20000 Hertz
Sensitivity
109 dB
Impedance
8 Ohm
Voice Coil Diameter
36 mm

Beyma CD-2514Fe/PK High Temperature Polymer Dome Compression Driver

The CD-2514Fe/PK is designed for applications in high-quality audio systems where very high SPL and minimal distortion are essential. The speakers have a 1.4 inch exit throat and a 2.5 inch voice coil diameter. Equipped with a Ferrite magnet and a high temperature Polymer dome, thanks to Beyma's latest DEPLOCEX technology they are more efficient and more resistant to power compression. The high temperature polymer has higher sensitivity at 5KHz and beyond, providing the presence needed for long-throw systems or reverberant environments.

CD-2514Fe/PK Features

  • New generation high-performance 1.4" (36 mm) compression output with 1.4 output
  • Patent-pending Deplocex® technology for improved heat dissipation, low power loss in compression and high power handling
  • 2.5" (63.5 mm) mobile coil in aluminum with copper-plated Nomex
  • Program power of 200 W above 1.2 kHz
  • Sensitivity: 109 dB (1W / 1m)
  • Exclusive high temperature polymer dome and surround optimized with F.E.M for linear and extended response with minimal resonances
  • Copper short-circuit cap to reduce distortion, linear inductance and increase output.
  • Exclusive phase plug connector design in metal alloy with F.E.M. optimized geometry and improved assembly design
  • F.E.M. optimized ceramic magnetic circuit.
  • Aluminum cover

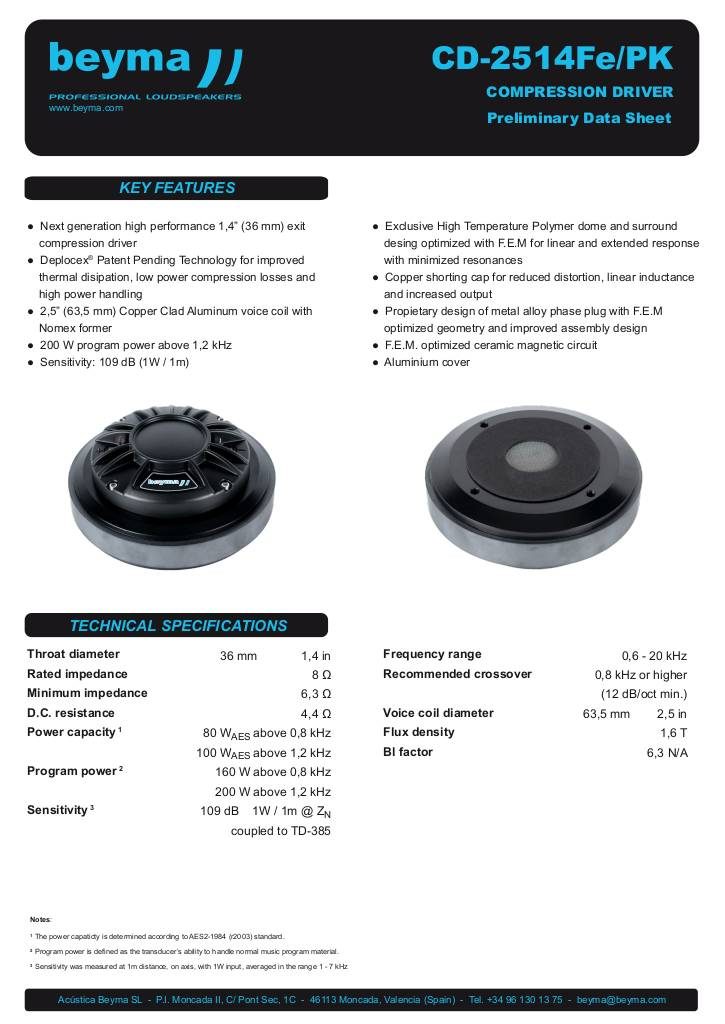

Scheda Tecnica

n-20230725110820-cd-2514fe-pk-8-oh.pdf

Beyma CD-2514Fe/PK Technical Specifications

  • Throat diameter 36 mm 1.4 in
  • Nominal impedance 8 Ω
  • Minimum impedance 6.3 Ω
  • D.C. resistance 4.4 Ω
  • Power capacity
    • 80 WAES above 0.8 kHz
    • 100 WAES above 1.2 kHz
  • Program power
    • 160 W above 0.8 kHz
    • 200 W above 1.2 kHz
  • Sensitivity 109 dB 1W / 1m @ ZN coupled to TD-385
  • Frequency range 0.6 - 20 kHz
  • Recommended crossover 0.8 kHz or higher (12 dB/oct min.)
  • Mobile coil diameter 63.5 mm 2.5 in
  • Flux density 1.6 T
  • Bl factor 6.3 N/A
