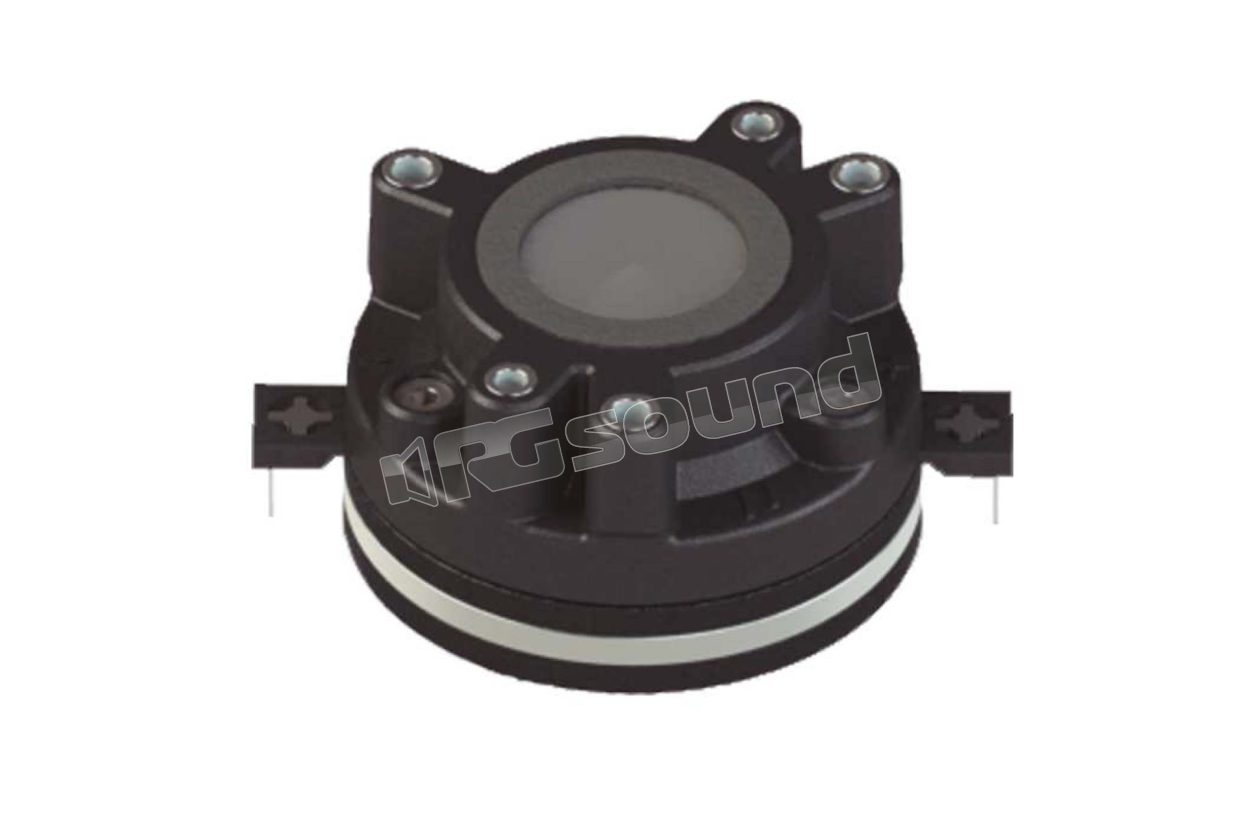

CD-1Nd 64 mm compression driver

Beyma

Discontinued

Your price:
€ 73,00
Price per single item (VAT included)
Type
Compression tweeter
Speaker Size
Other sizes
MAX Power
40 Watt
RMS Power
20 Watt
Frequency Response
1.000 - 20.000 Hertz
Sensitivity
110 dB
Impedance
8 Ohm
Weight
0,4 Kg
Installation Depth
38 mm
Voice Coil Diameter
25,4 mm

Beyma CD-1Nd high frequency compression driver, 1" (25.4) voice coil diameter, 40 W power, sensitivity: 110 dB

Polyamide diaphragm, ultra-lightweight aluminum moving voice coil, neodymium motor structure with reduced weight. Specifically designed for compact sizes and high-performance systems.

Beyma CD1Nd technical specifications

Throat diameter 25.4 mm 1 in

Nominal impedance 8 Ohm

Minimum impedance 5.8 ohm

Re 5.1 ohm

Power capacity 20 W AES above 2 kHz

Program power 40 W above 2 kHz

Sensitivity 110 dB 1W / 1m @ ZN acoplado a bocina TD-164

Frequency range 1000-20000 Hz

Recom. crossover frequency 2 kHz or higher (12dB/oct min slope)

Voice coil diameter 25.4 mm 1 in

Flux density 1.85 T

Diaphragm material Polyamide

External diameter 64 mm2.52 in

Depth 38 mm 1.49 in

Three M5 threaded holes. 120º apart on 57 mm (2.24 in) diameter circle

Two M4 threaded holes. 180º apart on 53 mm (2.08 in) diameter circle

Mounting hardware is supplied

Net weight 0.4 kg 0.9 lb

Total weight 0.5 kg 1.1 lb

Magnet Neodymium

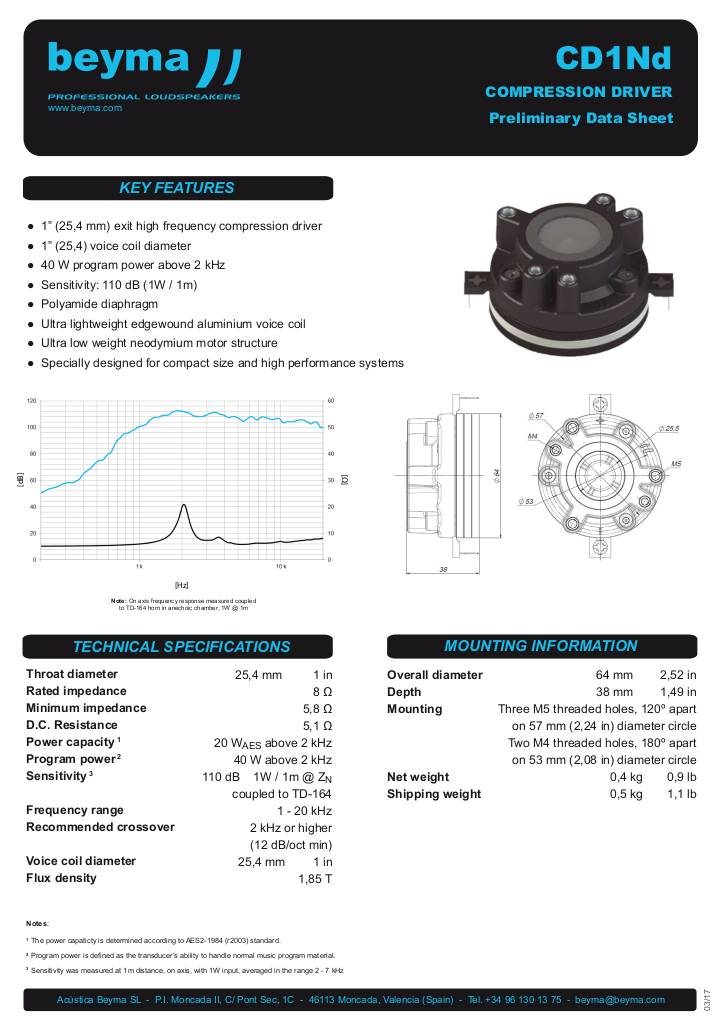

Scheda tecnica

n-20180517154957-cd-1nd.pdf
